Drawing 50 ton Used Good Price Small Gantry Crane
1. Brief Introduction:

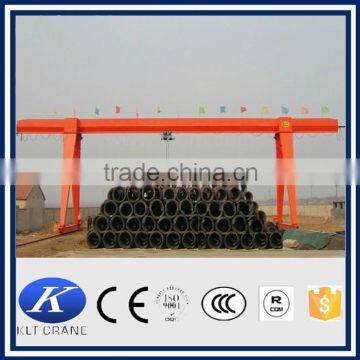

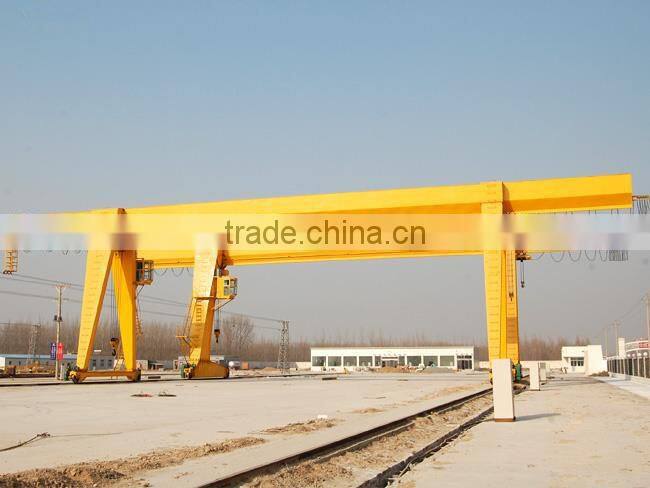

Small Gantry Crane
This kind of crane is composed of bridge, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch. Theframe adopts box-type welding mechanism. Crane travelilng mechanism adopts
separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your different use.
2. Features:

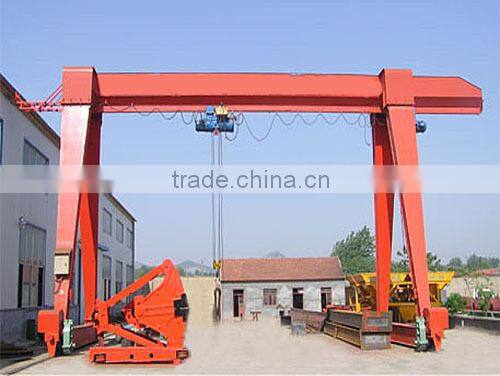

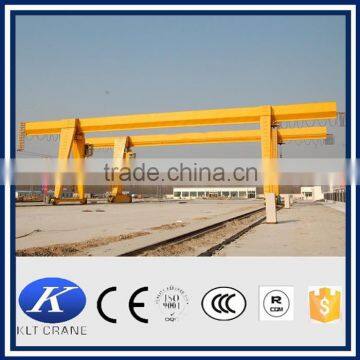

Small Gantry Crane
LIMIT SWITCHES – To prevent over hoisting & over lowering of hook.
PUSH BUTTON STATIONS – Extra light, handy, easy to operate. Wireless Radio remote controls are also conveniently and widely being used now.
SOFT STARTS – Electric / Electronic soft start modules electrically coupled to the long travel drives to achieve jerk free, cushioned & smooth starts.
MAINTENANCE PLATFORM WITH HAND RAILING – Easy, simple & safe maintenance of the Crane extended partially or along the full length of the girder.
3. Parameters:

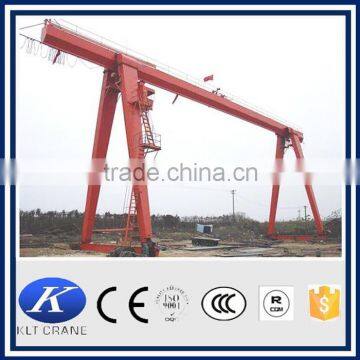

Small Gantry Crane
Capacity |
t |
5 |
10 |
16/3.2 |
20/5 |
||||||||||||||||||
Working class |
A5-A7 |
||||||||||||||||||||||
Span |
S(m) |
18 |
22 |
26 |
30 |
35 |
18 |
22 |
26 |
30 |
35 |
18 |
22 |
26 |
30 |
35 |
18 |
22 |
26 |
30 |
35 |
||
(m)Lifting Height |
Primary |
H1(m) |
10 |
11 |
10 |
11 |
10 |
11 |
10 |
11 |
|||||||||||||
Secondary |
H2(m) |
|
|
10.725 |
11.725 |
10.446 |
11.446 |
||||||||||||||||
Speed |
Life |
Primary |
m/min |
11.4 |
7.6 |
7.9 |
7.2 |
||||||||||||||||
Secondary |
|
|
19.7 |
19.5 |
|||||||||||||||||||
handcart travel |
38.3 |
43.8 |
44.6 |
||||||||||||||||||||
cart travel |
40.1 |
47.1 |
40.1 |
47.1 |
34.5 |
47.1 |
34.5 |
||||||||||||||||
Motor total power |
KW |
40.8 |
51.8 |
41.5 |
52.8 |
80 |
77 |
84 |
81 |
||||||||||||||
Steel track |
43kg/m |
||||||||||||||||||||||
Power Supply |
3-Phase A.C 50HZ 380V |
||||||||||||||||||||||
Note: The technical just for reference, we can design according to customer's requirements.
4. Application:

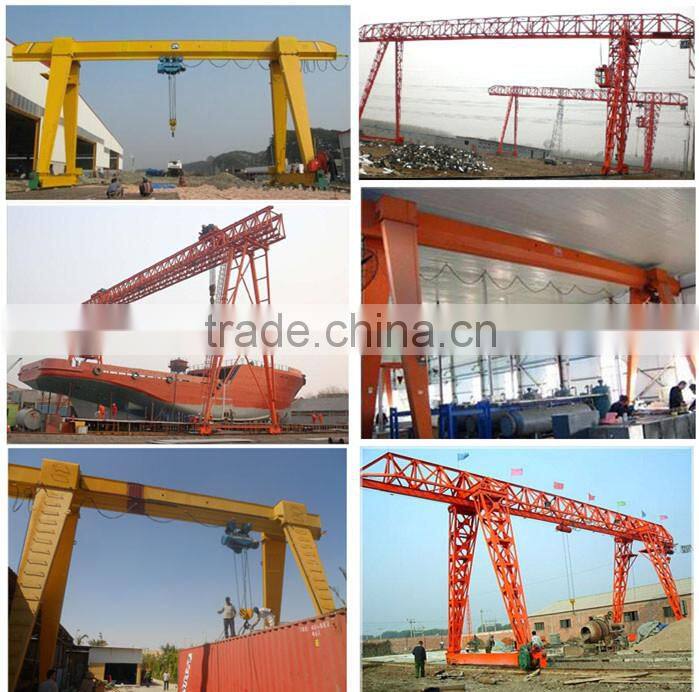

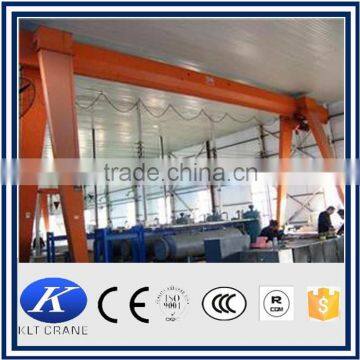

Small gantry crane is widely used in plants, warehouses, material stocks to lift goods or materials. Please do not use the equipment in the combustible, explosive to corrosives environment.
There is always one type suitable for you!
According to meet various requirements from customers, we also produce gantry crane , electric flat car,
overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in those products , please contect me or scan our website www.kltqz.en.china.cn for more details.
How to Order Our Products
a. Customers offer general drawing of the product.
b.Our designer will make a professional drawing according to your product layout.
c. After your confirming of the drawings, inform us the material and types you need.
d. We will do quote once get the confirmation of you.
Note: Customers can order all product samples we put or you can also have your own idea, as we are custom-made product supplier, so different collors and types are available.
Our delivery is Efficient , Reliable ,and Prompt!
Packaging Detail: Electric parts are packed by strong plywood crate, others packaged in polythene woven cloth or as your requirement.
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
Customer Visit
1. Can you make customized products?
Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands, our
engineers can make suitable design for you.
2. Can you supply the quality certification?
Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by
yourself, or you can let some third-partied to do the inspection for you.
3. Can I have a visit to your factory?
You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
Please never hesitate to contact me!
