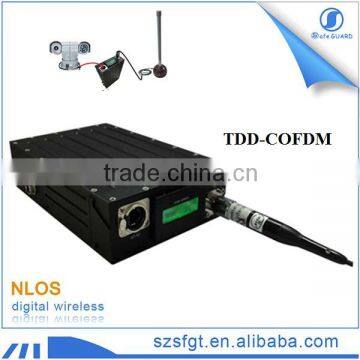

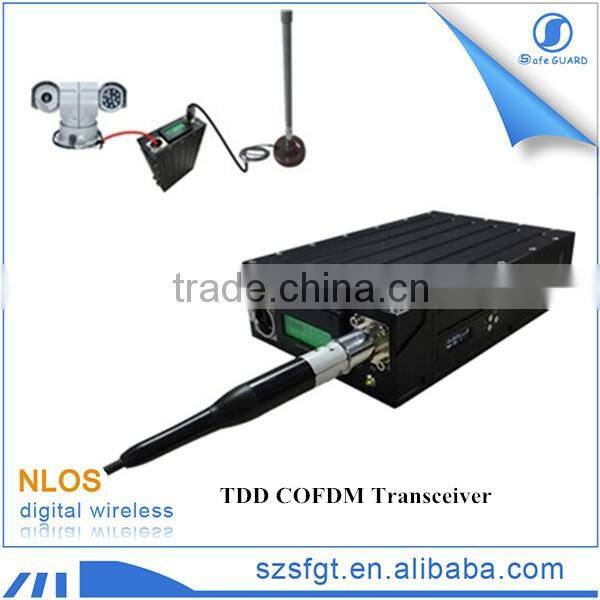

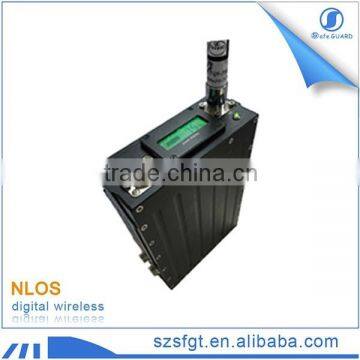

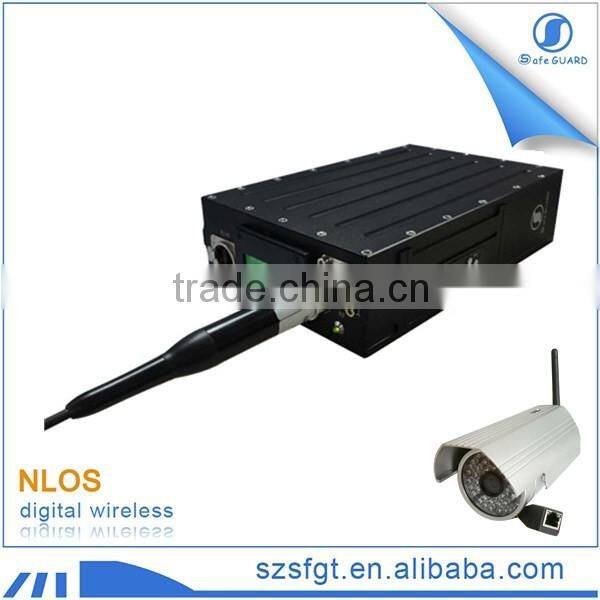

NLOS Full Duplex Wireless Communication COFDM UAV Transceiver Video Transmitter and Receiver
NLOS Full Duplex Wireless Communication COFDM UAV Transceiver Video Transmitter and Receiver
NLOS Full Duplex Wireless Communication COFDM UAV Transceiver Video Transmitter and Receiver is TDD COFDM broadband wireless mobile communication in emergency or private network. nlos long range wireless video transmitter and receiver SG-TDD20 is better independent telecom operators. Portable low delay full duplex uav transceiver SG-TDD20 is popular for its well confidentiality, and excellent security, better mobile erformance. Wireless transmitter receiver SG-TDD20 realizes a fully transparent data encryption transmission in emergency security network. Radio channel code of TDD-COFDM video Transmitter and Receiver(SG-TDD20) is TDD-COFDM modulation. Therefore Full Duplex Wireless communication transceiver SG-TDD20 achieves dual-way mopbile transmission at the same exact frequency.

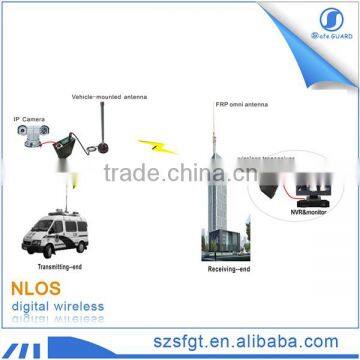

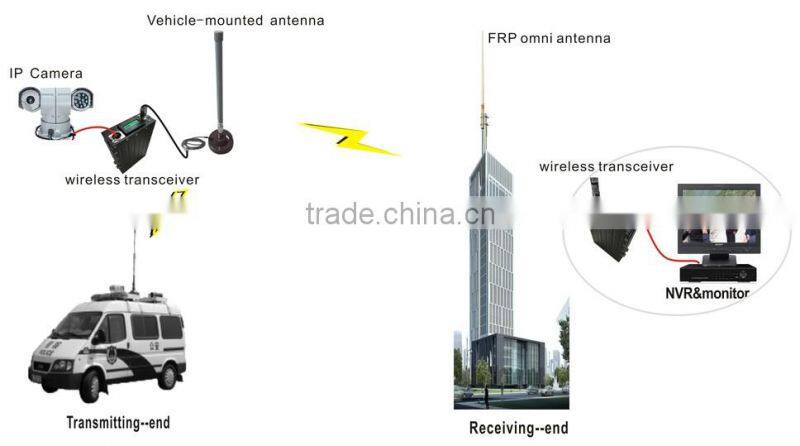

Long range wireless video transmitter and receiver SG-TDD20 realizes real-time network IP transparent transmission and remote control and the dual-way audio and video surveillance network. Therefore, NLOS COFDM video transmitter receiver SG-TDD20 is used in government, police station, hospital, military camp, frontier defense and coast defense as 2 way audio Full Duplex TDD COFDM Aviation Video Transceiver
NLOS Full Duplex Wireless Communication COFDM UAV Transceiver Video Transmitter and Receiver
(1) TDD COFDM technology
(2) Full duplex working mode
(3) User can modify the all parameters

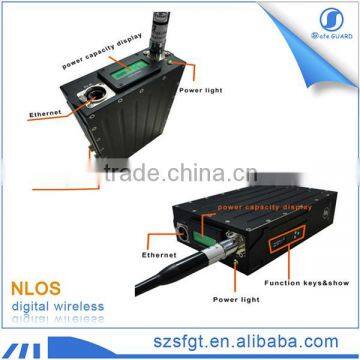

(4) LCD sceen shows the working signal strength indication;
(5) Ethernet port: 1 or2
Data ports: RS485, RS232 or RS422
(6) Baud rate can up to 921600bps
(7) AES128 encryption and customizable key password
(8) Real time transfer
(9) Available frequency:330-530MHz
NLOS Full Duplex Wireless Communication COFDM UAV Transceiver Video Transmitter and Receiver
(1TDD time division multiplexing technology with COFDM modulation system solution;
(2)LCD panel display for parameters adjustation;
(3)signal strength indication showed on LCD screen;
(4)ethernet ports: 1 or 2 ;
data port:RS485/RS232/RS422;
(5)AES128 encryption and customized key code.
(6)Super low delay,within 50-80ms;
(7)Transmitting rate up to 6.5Mbps;Video and data occupy the same channel;
(8) Available frequency:330-530MHz, have to choose 100MHz space among of the range;
Transmission mode: Full duplex
Transfer Protocol: Standard TCP / IP, transparent transmission,serial asynchronous
Data type: 10 / 100Bate-T Ethernet, industrial RS-232, RS-422, RS-485 standard
Audio channel: customized analog audio intercom interface (non-Open)
Transfer rate: 6.5Mbps in total;The video&data occupy the same channel
Transmission delay 50~ 80ms
Networking format: PTP and PTMP (point to point and point to multi-point)
BER: ≤10-6
Transmission distance: 1-3km NLOS on ground / 40km LOS distance on sea area
1-80km LOS distance/50km NLOS (on helicopter)
Receiving sensitivity: -103dBm

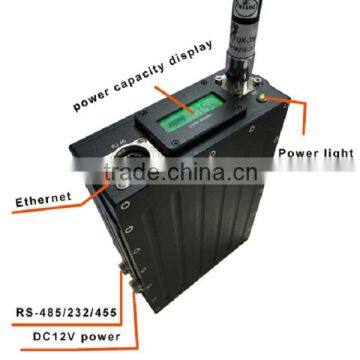

Ethernet interfaces: RJ45
RS-232/422/485 physical interface: Six pin terminals
Power input physical interface: Six pin terminals
RF physical interface: SMA female
Output frequency: 330-530MHz(optional), step in 1MHz (customizable)
Output Power: 5-20W (adjustable)
Working Bandwidth: 4MHz / 8MHz
Encryption: 128bit AES (Optional 256bit AES)
Correction Mechanism: 32bit of CRC, ARQ
Modulation: TDD_COFDM, time division duplex mode
Parameter Control: adjustable parameters through the LCD panel
Operating Voltage: DC12V
Ethernet: 10 / 100BaseT, Auto-MDI / X, IEEE802.3 TCP, UDP, TCP / IP, TFTP, ARP, ICMP, HCP, HTTP, SNMP, FTP, DNS
Working Temperature: -40 ℃ ~ 85 ℃
Built-in Battery: 12000mA (can be with or not)
Working Time: 6 hours

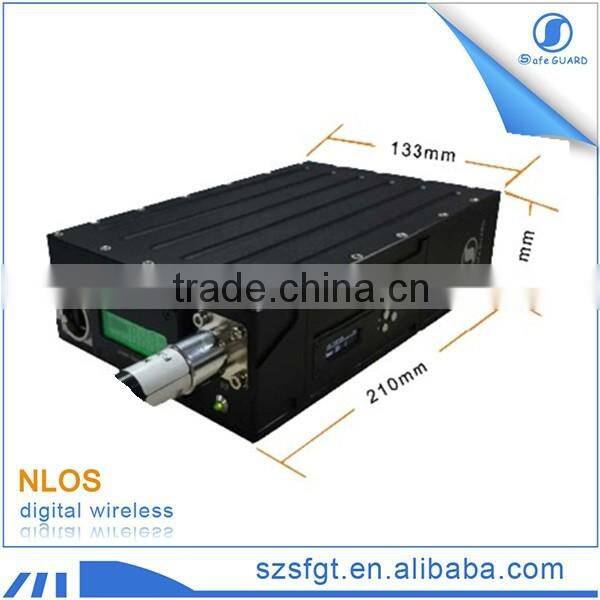

Dimension: 21cm * 13.3cm * 5.4cm
