Portable Two Way Video Audio Data Wireless Mini AP
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Safe Guard
Model Number:
SG-2400nb
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Surveillance Aerial Drone Uses Wireless Vhf Duplexer Transmitter and ReceiverNegotiableMOQ: 1 Set -
Low Cost rf Transceiver Module RS-232/RS-485 or RJ45 Wireless Video BridgeNegotiableMOQ: 1 Set
-
1000mw Mini Tdd-cofdm Long Range Full Duplex Digital Video TransceiverNegotiableMOQ: 1 Set
-
Two Way Tdd-cofdm Wireless Ethernet Transceiver Data TransmissionNegotiableMOQ: 1 Set
-
50km LOS Tdd-cofdm Video Wireless Radio Transmitter-receiver With Ethernet Data PortUS$ 7,200 - 7,599MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Safe Guard
Model Number
SG-2400nb

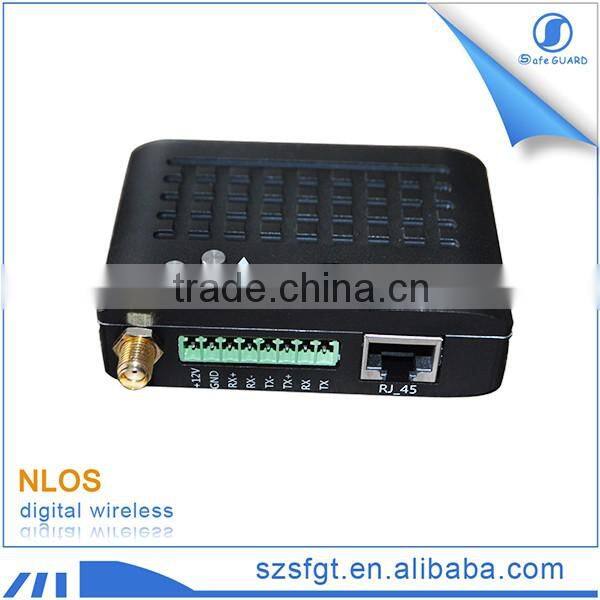

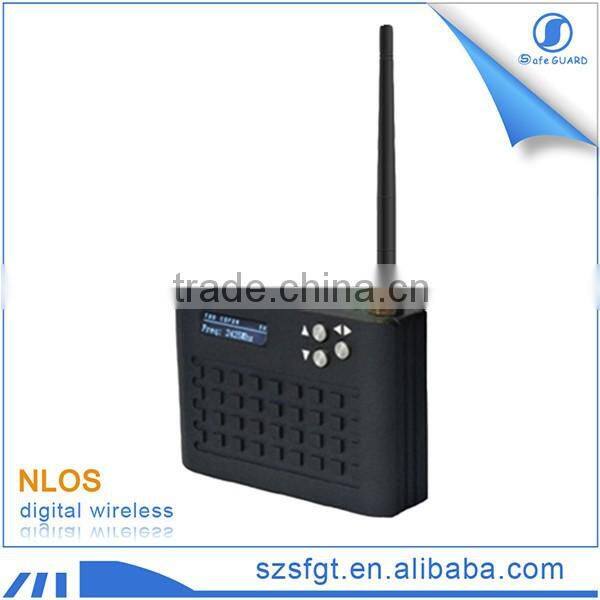

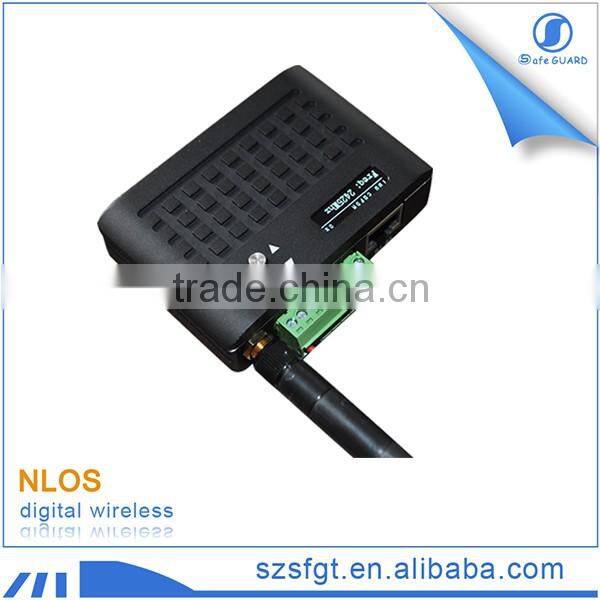

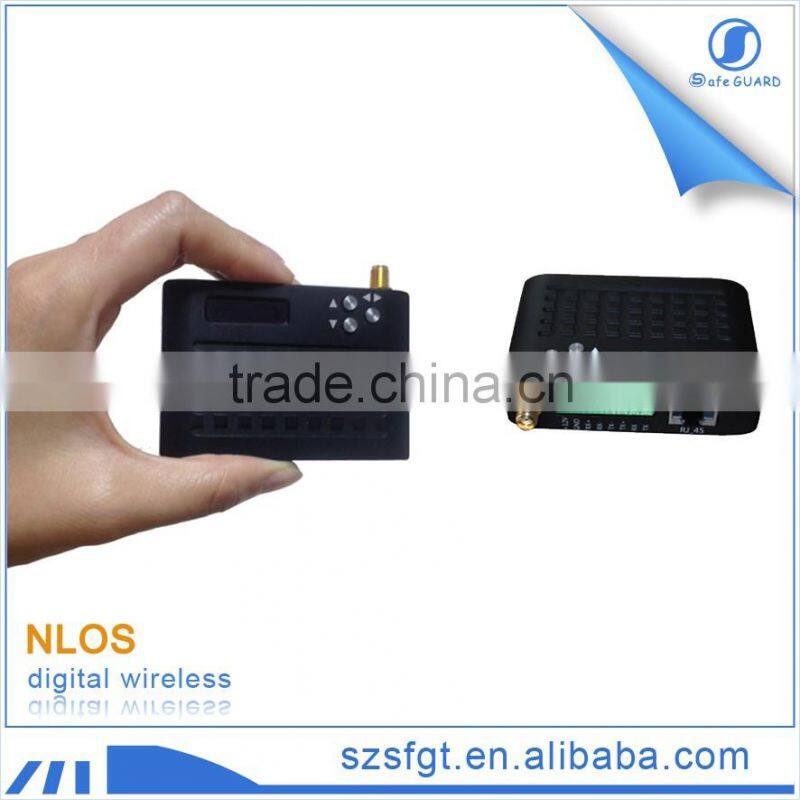

Portable two way video audio data wireless mini AP
(SG-2400NB)
High Lights
Portable two way video audio data wireless mini AP
- Small wireless AP
- Full duplex TDD-COFDM
- Dual-way data / signals video mobile transmission;
- Up to 6.5Mbps transfer rate
- LOS and NLOS data video transmission
- Support point to point (PTP) ; point to multi-point (PTMP) network technology

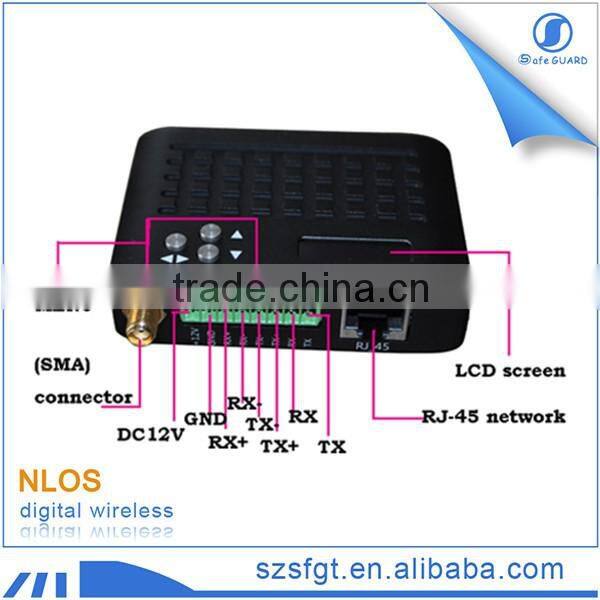

- Standard RS-232 / RS-485 or RJ45 data input /output
- Military grade
- Aluminum outer-casing with good heat dissipation
- High quality OLED digital panel display
- Concise and simple operation panel
Introduction
Portable two way video audio data wireless mini AP
Portable two way video audio data wireless mini AP , with TDD-COFDM (Time Division Duplexing coded orthogonal frequency division multiplexing) Network Bridge, is our latest designed portable mini wireless AP for two way audio video data transmission.Mini wireless AP uses the advanced processing technology and leading division COFDM module and has a perfect two-way transmission encrypted (encryption support AES-128) network data transfer channel. Portable two way aodio video data wireless mini AP achieves real-time/ live broadcast, anti-multipath, high-speed mobile data, voice and image duplex module transmission
Parameters
Portable two way video audio data wireless mini AP
| Item name | Portable two way video audio data wireless mini AP |
| Model No. | SG-2400NB |
| Ethernet |
10/100BaseT,Auto-MDI/X,IEEE802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS |
| Power supply | DC7V~17V,6W consumption |
| Output frequency | 2405~2470MHz(adjustable) |
| Output RF power | 100 to 4400MHz |
| Bandwidth | 4MHz / 8MHZ |
| Interface | RJ-45ethernet RS232 RS485 RS422 data |
| Resolution | Support 720P and 1080@50/60hz 30 frames |
| Encryption | 128bit AES or 256 bits AES |
Image & Use
Portable two way video audio data wireless mini AP
