tdd cofdm wireless ethernet bridge transmissor serial232 transceiver
Introduction of tdd cofdm wireless ethernet bridge transmissor serial232 transceiver
SG-2400NB TDD_COFDM transceiver is the new developing product of our company. It adopts advanced time division processing , TDD bidirectional network transmission and the leading COFDM modulation technology combined, providing complete bi-directional encryption (support AES_128 encryption) network data transmission channel, as well as anti multipath, high speed mobile data, and voice.
H.264 code technology as the core, assigning channel resources through slot control, through the sub-carrier frequency flexibly assigned to multiple user terminals, within the same frequency maximized realized access multiple endusers multiple access.

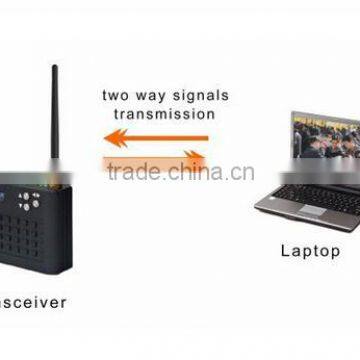

It can realize real-time two way transparent information transmission under the condition of NLOS and high speed movement. Multiple wireless networks can be integrated with each other layout into large network coverage.
As its super small volume, light weight it’s especially suitable for application in High-speed Rail, train and other complex environments.
Features of tdd cofdm wireless ethernet bridge transmissor serial232 transceiver:
1.Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology
2.Smart settings, simple operation, easy to use;
3.Support transparent PTP &PMD network technology
4.Safety with AES 128 bit, can set user’s password;
5.Support non line of sight ( NLOS ) high-speed mobile transmission
6.Provide standard RS-232&RS-485 + RJ45 Ethernet
7.Transmit/receive video audio,data and other multimedia signals simultaneously
8.Support high standards of Industrial and military level applications
9.The small volume, light weight, easy to carry, the radiating aluminum casing
10.High clear OLED digital display

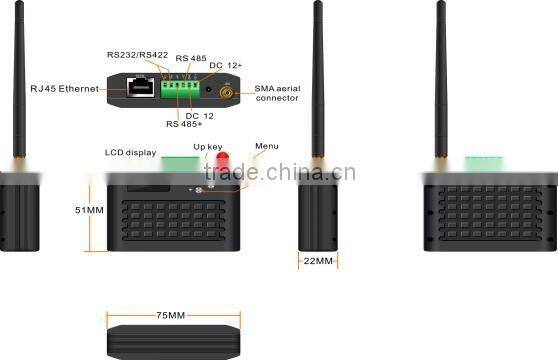

Detail Images
Specifications of tdd cofdm wireless ethernet bridge transmissor serial232 transceiver:
Power supply |
DC7V~17V, 6W consumption |
Ethernet |
10/100BaseT,Auto-MDI/X,IEEE802.3 TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS |
Output frequency |
2405~2470MHz(adjustable) |
| Type | tdd cofdm wireless ethernet bridge transmissor serial232 transceiver |
| Output rf power | 100-1000mW(30dBm) (adjustable) |
| Bandwidth | 4MHz/8MHz (adjustable) |
| Interface | RJ-45 Ethernet ,RS232/RS485/RS422 |
| Resolution | Support 720P and 1080P@50/60hz, 30 frames |
| Model: SG-2400NB | tdd cofdm wireless ethernet bridge transmissor serial232 transceiver |
| Encryption mode | 128bit AES(or 256bit AES) |
| Error correction mechanism | 32bit of CRC,ARQ |
| Modulation | TDD-COFDM |
| Parameter control | Through OLED control panel to modify parameters |
| Working temperature | -40℃~85℃ |
| Dimension | 75*51*22mm |
Weight |
135g |
| Name | tdd cofdm wireless ethernet bridge transmissor serial232 transceiver |
tdd cofdm wireless ethernet bridge transmissor serial232 transceiver
Each of our wireless transmitter/receiver/transceiver/wireless bridge goes through strict and professional testing.
tdd cofdm wireless ethernet bridge transmissor serial232 transceiver
Professional carton paper packing for international freight.
Q: What’s your service?
A: We offer one year warranty, 3 months for spare parts and 24-h technical guidance. OEM/ODM solution are highly welcome.
Q: Are you a trading company or factory?
A: We are a professional manufacturer with veteran R&D team.
Q: What’s COFDM?
A: COFDM is the abbreviation of Coded Orthogonal Frequency Division Muliplexing.
Q: Does signal can be transmitted when there is obstacle between transmitter and receiver?
A: Yes, it can. Our COFDM wireless transmitter support NLOS(non line of sight) transmission.
Q: Does it transmit video signal when it’s in a moving condition?
A: Yes, our COFDM wireless transmitter support fast moving transmission. The max moving speed up to 450km/h.
Q: Is safe for the video if using your transmitter?
A: Yes, of course. Our transmitter adopts the newest AES encryption to make sure the security and privacy.
