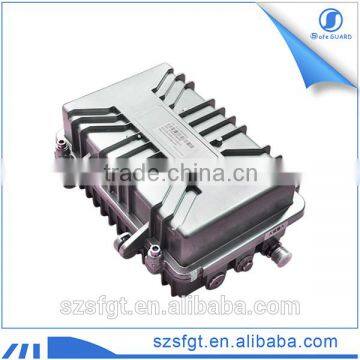

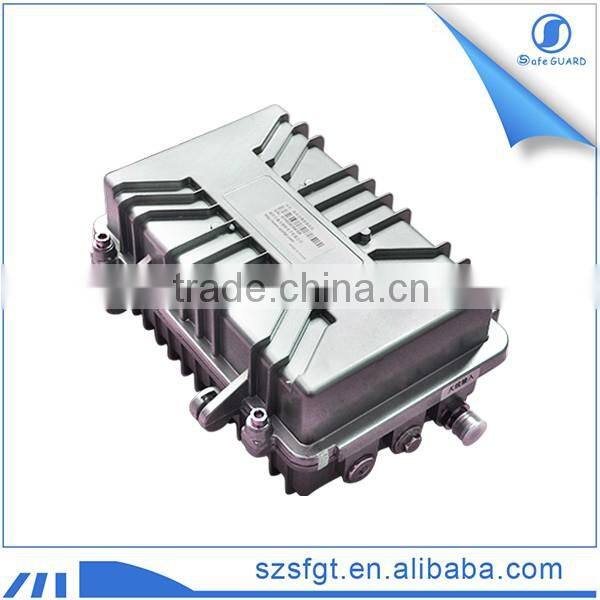

outdoor waterproof analog 1.5g wireless av transmitter
SG-F3000A
Introduction of outdoor waterproof analog 1.5g wireless av transmitter for project
This product transmits the video signal by wireless microwave. There are three main frequency band: L-Band 1.0-2.0GHZ; S-Band 2.3-2.7GHZ; KU-Band 10.75-12.7GHZ. As selection of a higher frequency, it has a strong anti-interference performance, clearer images and real-time stability. It has been well received in wireless video projects by users.
Transmitter System Indicators | |
Frequency |
1000-1500MHz (L-Band 1.0G-1.5G ) |
RF Power |
3W |
Power Supply |
12vDC/220v |
Modulation |
FM |
Frequency stability |
0.0005%(standard) |
Impedance |
50Ω |
Phase Noise @10KHz |
-75dBc |
Bandwidth |
20MHz |
RF Interface |
N |
Work environment |
-30~70 |
Video Format |
PAL |
Size |
250*180*110mm |
Transmission distance |
1-3km |
Receiver System Indicators | |
Frequency |
1.0-1.5G (optional) |
Impedance |
75Ω |
Video Output |
Analogic AV signal |
Voltage |
AC220V |
Current |
0.6A |
Interface |
BNC |
Temperature |
-30~50°C |
Humidity |
0.96% |
Weight |
1.5KG |
Size |
250*150*110mm |
Audio index | |
Audio Output |
600ΩBalance/ 0.5vImbalance |
De-emphasis |
75us/50us |
Frequency corresponding |
50Hz to 15KHz(+/-0.5dB) |
Carrier frequency |
6.5MHz |
AV Interface |
BNC |
Distortion |
3% |
FM Noise |
-50dB |
Video Index | |
Video Output |
75 Ω unbalanced, 1.0Volt P-P |
Differential gain |
5% |
Differential phase |
5 |
SNR |
55dB |
De-emphasis |
CCIR STANDARD PAL |

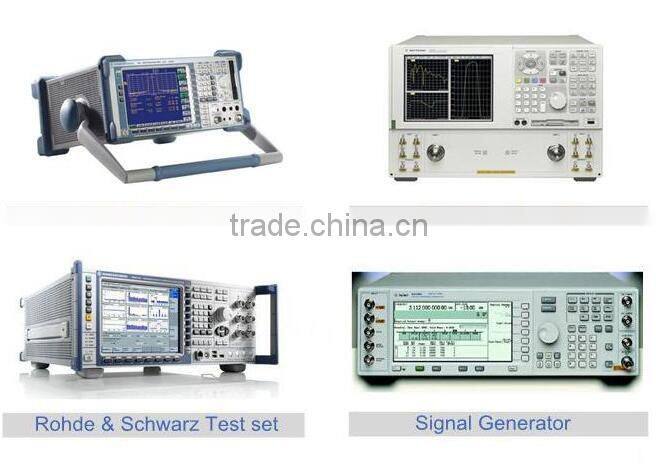

Each wireless video transmitter/ receiver/ transceiver/ wireless bridge goes through strict and professional testing!
outdoor waterproof analog 1.5g wireless av transmitter for project
Professional carton paper packing for international freight.
outdoor waterproof analog 1.5g wireless av transmitter for project
