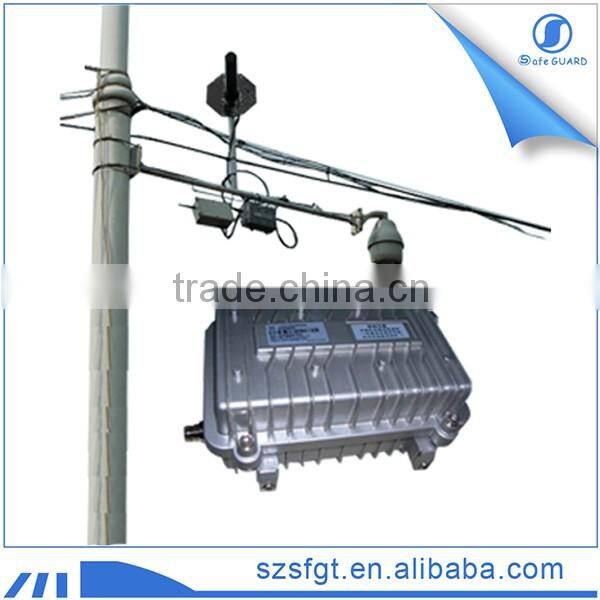

broadcast ptz 5km wireless video sender av transmitter receiver---SG-F5000A
Introduction
SG-F5000A is a long-distance monitoring equipment provided by our company with long experience, which has high quality and good price. Especially widely used in oilfield, harbor, coal mine area , construction and other industries. It is very flexible in actual application, easy and quick in construction, what’s more, can combine with digital wireless, fiber terminal,etc. connect to all analogic input interface directly. Due to the limited bandwidth, we do not suggest to use more than 20 sets of this products in same control center.
Transmitter System Indicators | |
Frequency |
1.0-1.5G(optional) |
RF Power |
5W |
Power Supply |
DC12V 1.2A / AC220V 1A |
Modulation |
FM |
Frequency stability |
0.0005%(standard) |
Impedance |
50Ω |
Phase Noise @10KHz |
-75dBc |
Bandwidth |
20MHz |
RF Interface |
N |
Work environment |
-30~70 |
Video Format |
PAL |
Size |
250*190*110mm |
Weight |
2kg |
Receiver System Indicators | |
Frequency |
1.0-1.5G(optional) |
Impedance |
75Ω |
Video Output |
Analogic AV signal |
Voltage |
AC220V |
Current |
0.6A |
Interface |
BNC |
Temperature |
-30~50°C |
Humidity |
0.96% |
Weight |
1.5KG |
Size |
250*150*110mm |
Audio index | |
Audio Output |
600ΩBalance/ 0.5vImbalance |
De-emphasis |
75us/50us |
Frequency corresponding |
50Hz to 15KHz(+/-0.5dB) |
Carrier frequency |
6.5MHz |
AV Interface |
BNC |
Distortion |
3% |
FM Noise |
-50dB |
Video Index | |
Video Output |
75 Ω unbalanced, 1.0Volt P-P |
Differential gain |
5% |
Differential phase |
5 |
SNR |
55dB |
De-emphasis |
CCIR STANDARD PAL |
Transmitter interfaces:
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Receiver interfaces:
Packaging Details for Each Set | |
|
Complete Set & Accessories |
1* video transmitter; 1* video receiver; 2* 15dBi antennas; 2* RF Cables. |
Style |
Paper carton |
Size |
Undetermined |
Overall Weight |
6kg |
- One year free warranty;
- three months for free spare parts (Replacement parts will be charged after a year);
- 24-h technical guidance;
- One-stop ODM/OEM solution;
- We provide professional system design and construction;
- We have over 15 years experience's study, design and manufacturing in wireless microwave transmission area;
- We are the professional plant source,so we can provide you high quality in best price.
