1.2GHz 5w 5km Long Range fm Transmitter for CCTV Camera

1.2GHz 5w 5km Long Range fm Transmitter for CCTV Camera photo-1

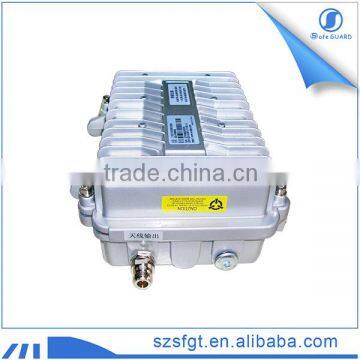

1.2GHz 5w 5km Long Range fm Transmitter for CCTV Camera photo-2
1.2GHz 5w 5km Long Range fm Transmitter for CCTV Camera photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Safe Guard
Model Number:
SG-F5000A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Safe Guard
Model Number SG-F5000A

1.2GHz 5w 5km long range fm transmitter for CCTV camera
SG-F5000A





Product Description

Introduction of 1.2GHz 5w 5km long range fm transmitter for CCTV camera

SG-F5000A is a long-distance monitoring equipment provided by our company with long experience, which has high quality and good price. Especially widely used in oilfield, harbor, coal mine area , construction and other industries. It is very flexible in actual application, easy and quick in construction, what’s more, can combine with digital wireless, fiber terminal,etc. connect to all analogic input interface directly. Due to the limited bandwidth, we do not suggest to use more than 20 sets of this products in same control center.



 1.2GHz 5w 5km long range fm transmitter for CCTV camera

Product Parameters



Model: SG-F8000A, 1.2GHz 5w 5km long range fm transmitter for CCTV camera

Frequency

1.0-1.5G(optional)

RF Power

5W

Power Supply

DC12V 1.2A / AC220V 1A

Modulation

FM

Frequency stability

0.0005%(standard)

Impedance

50Ω

Phase Noise @10KHz

-75dBc

Bandwidth

20MHz

RF Interface

N

Work environment

-30~70

Video Format

PAL

Size

250*190*110mm

Weight

2kg



Receiver System Indicators

Frequency

1.0-1.5G(optional)

Impedance

75Ω

Video Output

Analogic AV signal

Voltage

AC220V

Current

0.6A

Interface

BNC

Temperature

-30~50°C

Humidity

0.96%

Weight

1.5KG

Size

250*150*110mm





Audio index

Audio Output

600ΩBalance/ 0.5vImbalance

De-emphasis

75us/50us

Frequency corresponding

50Hz to 15KHz(+/-0.5dB)

Carrier frequency

6.5MHz

AV Interface

BNC

Distortion

3%

FM Noise

-50dB



Video Index

Video Output

75 Ω unbalanced, 1.0Volt P-P

Differential gain

5%

Differential phase

5

SNR

55dB

De-emphasis

CCIR STANDARD PAL

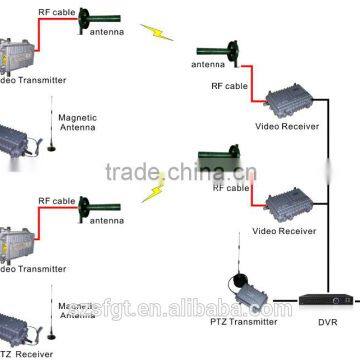

Application

 1.2GHz 5w 5km long range fm transmitter for CCTV camera





Testing Equipments

1.2GHz 5w 5km long range fm transmitter for CCTV camera

 Each wireless video transmitter/ receiver/ transceiver/ wireless bridge goes through strict and professional testing!

1.2GHz 5w 5km long range fm transmitter for CCTV camera



Packaging & Shipping

1.2GHz 5w 5km long range fm transmitter for CCTV camera

Professional carton paper packing for international freight.

1.2GHz 5w 5km long range fm transmitter for CCTV camera



Customization

1.2GHz 5w 5km long range fm transmitter for CCTV camera
