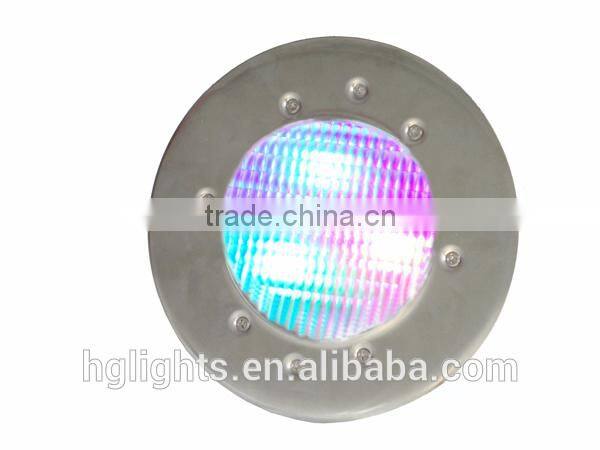

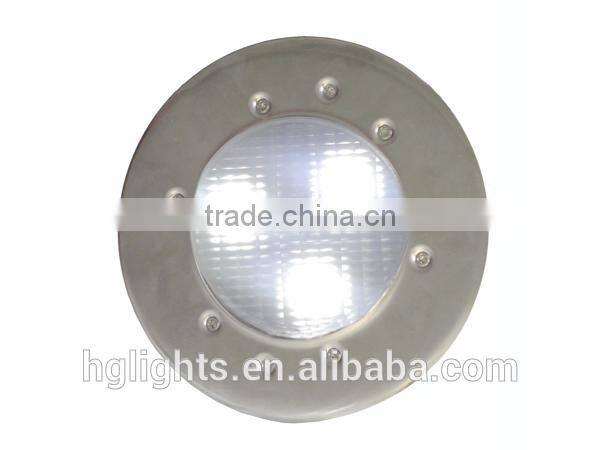

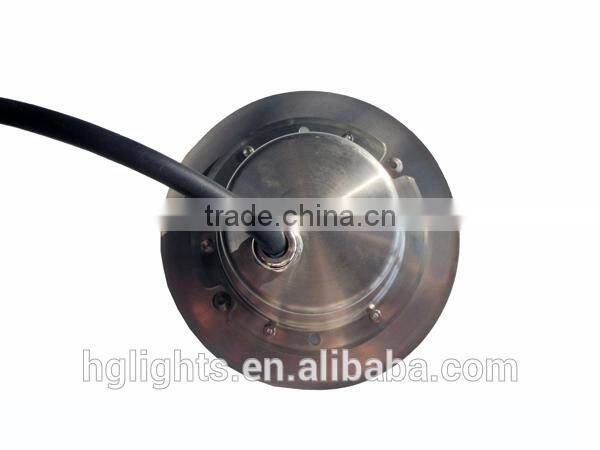

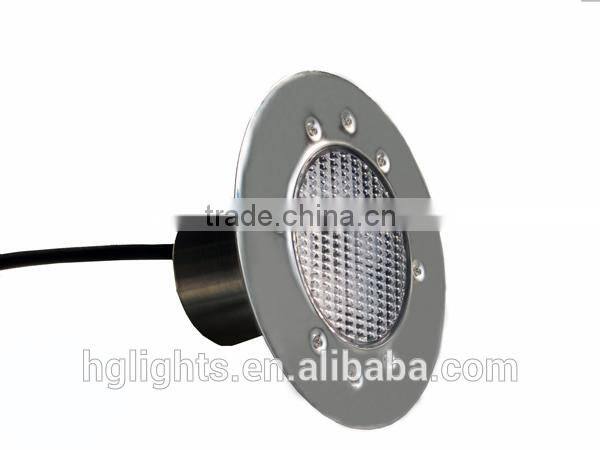

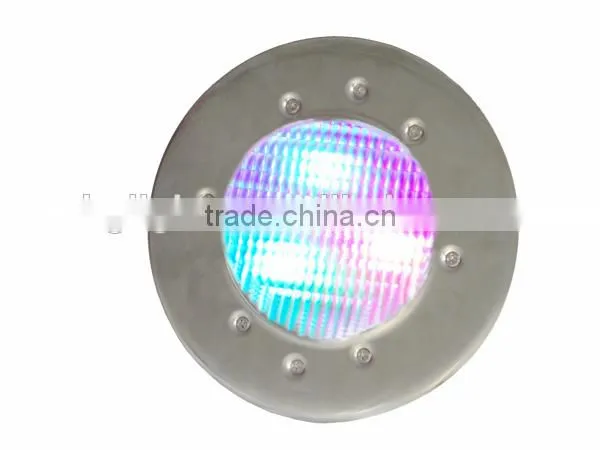

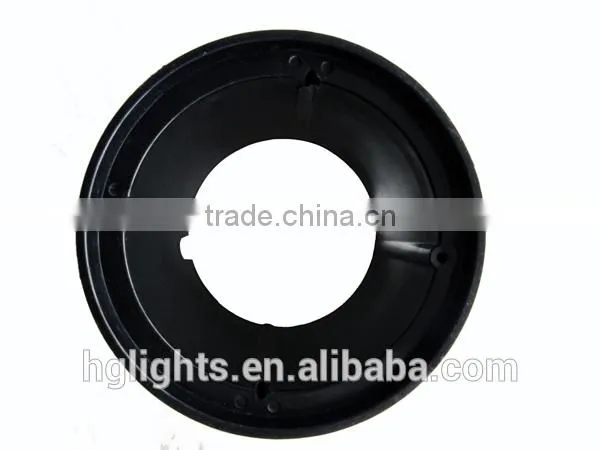

316 Stainless Steel 3W Recessed LED Underwater Light
- 5000 Piece / Pieces per Month
- FOB Shenzhen
- Credit Card
-
Light Weight Outdoor Blue RGB Waterproof Battery Powered Underwater LED Swimming Pool Lighting
-
Branded Complete New Swimming Waterproof Stainless Steel Underwater Recessed LED Pool Table Light
-
Trendy Outdoor Floating Beautiful RGB Waterproof Above Ground Accessories Cordless Table LED Swimming Pool Light
-
Innovative USB Remote Surface 220V Party Swimming Fountain Wireless Ball LED Floating Pool Lights
-
Customized Decoration 2022 New Sunflower Multicolor Swimming Stand Battery Pool Floating Lights
-
Waterproof Outdoor Solar charging Color Changing Led Ball Light Lamp floating on swimming pool
Product Details
| LED Light Source: | 1W High power | Input Voltage(V): | 12v | Lamp Power(W): | 3 |
| Lamp Luminous Flux(lm): | 200 | Lamp Luminous Efficiency(lm/w): | 70 | Color Temperature(CCT): | Other, p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k |
| Working Temperature(℃): | -10, 50 | Working Lifetime(Hour): | 30000 | IP Rating: | IP68 |
| Certification: | CE, EMC, FCC, LVD, VDE | Lamp Body Material: | Stainless Steel | Place of Origin: | Guangdong, China |
| Brand Name: | HG | Model Number: | HG-P30U-3*1W (pool light) |
Product Description
Recessed LED Underwater Light
Product show: HG-P30U-3*1W (pool light)
Features:
l 316 (V4A) stainless steel LED underwater light, unique heat-dissipation & waterproof design,
high-grade and artistic, wide application.
l Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
l IP68 structure waterproof
l high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.
l Color: Red, Green, Blue, RGB, 14 kinds of color changing mode
Single color – white, red, green, blue, yellow
l 5 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,
Automatic control, External control (wire control)
l Constant driver to make sure LED light working stable, avoid any flashing and noisy
l Voltage:AC/ DC 12V, Frequency: 50/60HZ
l Beam angle: 15°/25°/30°/45°/60° for options
l Life span: >30000 hours
l Over-current protection
Applications: garden pond, square, water column, flower-bed in villas, garden,
rocky water-fall, outdoor fountain, etc.
Main parameters:
Specification | Parameter | |
Model No. | HG-P20U-3x1W (Pool Light) | HG-P30U-6x1W (Pool Light) |
LED Qty | 3pcs 1W | 6pcs 1W |
Input Voltage | AC/DC 12V | AC/DC 12V |
Input Frequency | 50/60 Hz | 50/60 Hz |
Power | 4±1 W(W/G/B/RGB) 3±1 W(red) | 7±1 W(W/G/B/RGB) 5±1 W(red) |
Luminous flux | P.W.: 200±10%Lm W.W.: 180±10%Lm C.W.: 170±10%Lm Red: 60±10%Lm Green: 130±10%Lm Blue: 28±10%Lm RGB: 90±10%Lm | P.W.: 390±10%Lm W.W.: 370±10%Lm C.W.: 350±10%Lm Red: 120±10%Lm Green: 260±10%Lm Blue: 50±10%Lm RGB: 180±10%Lm |
Wave Length (RGB) | R:621-625 nm G:518-520 nm B:464-467 nm | R:621-625 nm G:518-520 nm B:464-467 nm |
Dimension | (D)157×104 mm | (D)157×104 mm |
Color temperature | W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K | W.W.:3000-3500K P.W.:6000-7000K C.W.:8000-12000K |
Working temperature | 0~40℃ | 0~40℃ |
Storage Temperature | -10~60℃ | -10~60℃ |
Base | wire | wire |
Constant driver | yes | yes |
IP rating | IP68 | IP68 |
Constant driver& over-current protection | yes | yes |
Recessed led underwater light series:
Control methods:

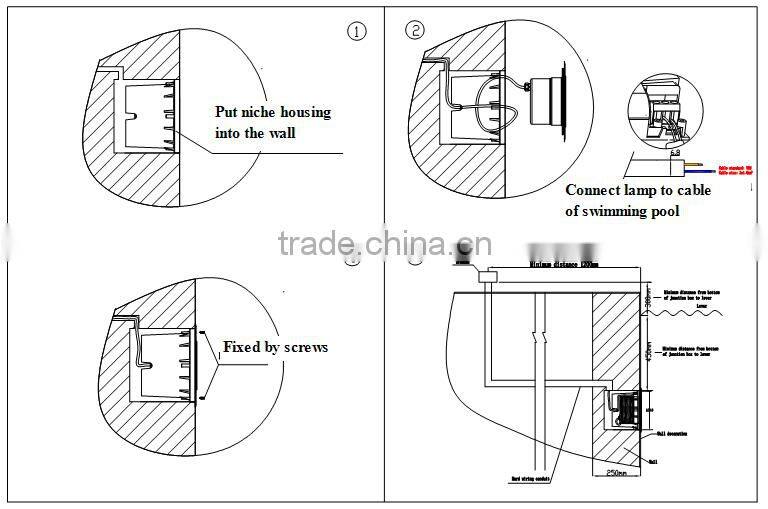

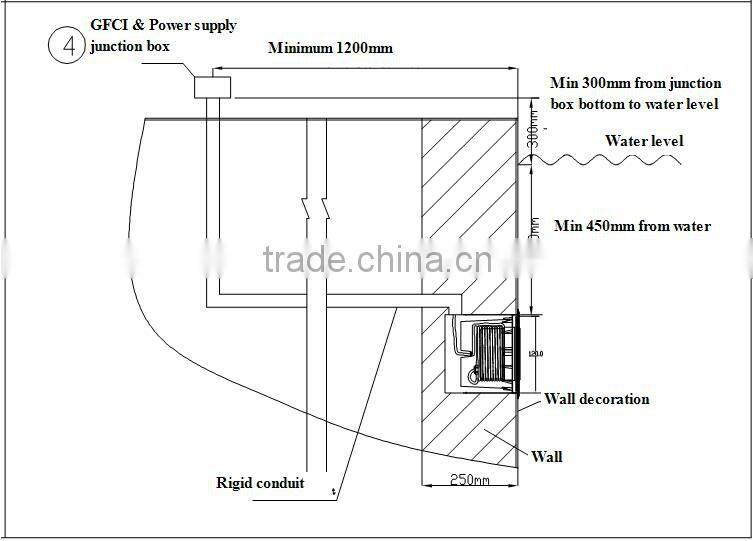

Installation diagram:
Packaging:
1 pc in a white box, 36 pcs in 50x50x52 cm master carton N.W.: 26.5 kgs
it also can be customized based on the customers' requirements.
Shipping:
7-15 working days, it also depends on stock material and order quantity.
OEM or ODM
Our advanced production lines, precise equipment, strict quality control process and experienced
engineer team are capable to fulfill the toughest OEM or ODM requirement from customers worldwide.
M.O.Q.
Generally, we don’t require M.O.Q. in order to help some clients to expand their business & keep the
ball rolling.
Lead time
7-15 working days based on stock material and order quantity.
Payment
T/T, Western Union or LC(at sight)
Incoterms
EX-Factory/work, FOB, CIF
Warranty
All our products are covered by 24 months warranty from the date of purchase
We are not responsible for any damage caused by improper use/assembling or force majeure.
SHENZHEN HEGUANG LIGHTING CO., LTD. is a sophisticated manufacturer which specializes in R&D and
production of LED Light ODM & OEM in fields of LED Swimming Pool Light and Underwater Light as well as
fountain light, inground light, wall washer, etc.
Exibition show:
Want to get more information, please feel free to contact us.
