3W led underwater fishing light ip68 waterproof
Features
*316 (V4A) stainless steel LED underwater light, unique heat-dissipation & waterproof design, high-grade and artistic, wide application.
*Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
*IP68 structure waterproof
*high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.
*Color: Red, Green, Blue, RGB, 14 kinds of color changing mode
Single color – white, red, green, blue, yellow
* kinds of RGB control method: DMX Control,
*Constant driver to make sure LED light working stable, avoid any flashing and noisy
*Voltage:AC/ DC 12V, Frequency: 50/60HZ
*Beam angle: 15°/25°/30°/45°/60° for options
*Life span: >30000 hours
*Over-current protection
Main parameters for 3W led underwater fishing light ip68 waterproof
Specification | Parameter | |
Model No. | HG-P20U-3*1W | HG-P30U-6*1W |
LED Qty. | 3 pcs 1W High power | 6 pcs 1W High power |
Input Voltage | AC/DC 12V | AC/DC 12V |
Input Frequency | 50-60 Hz | 50-60 Hz |
Power | 4±1 W(W/G/B/RGB) 3±1 W(red) | 7±1 W(W/G/B/RGB) 5±1 W(red) |
Luminous flux | 200±10%Lm(P.W) 180±10%Lm(W.W) 170±10%Lm(C.W) 60±10%(R) / 130±10%(G) 28±10%(B) / 90±10%(RGB) | 390±10%Lm(P.W) 370±10%Lm(W.W) 350±10%Lm(C.W) 120±10%(R) / 260±10%(G) 50±10%(B) / 180±10%(RGB) |
Wave Length (RGB) | R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm | R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm |
Color temperature | p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k | p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k |
Dimension | 124.5×115 mm | 124.5×115 mm |
Working temperature | -20~50℃ | -20~50℃ |
Storage Temperature | -20~50℃ | -20~50℃ |
Base | wire | wire |
Constant driver | yes | yes |
IP rating | IP68 | IP68 |

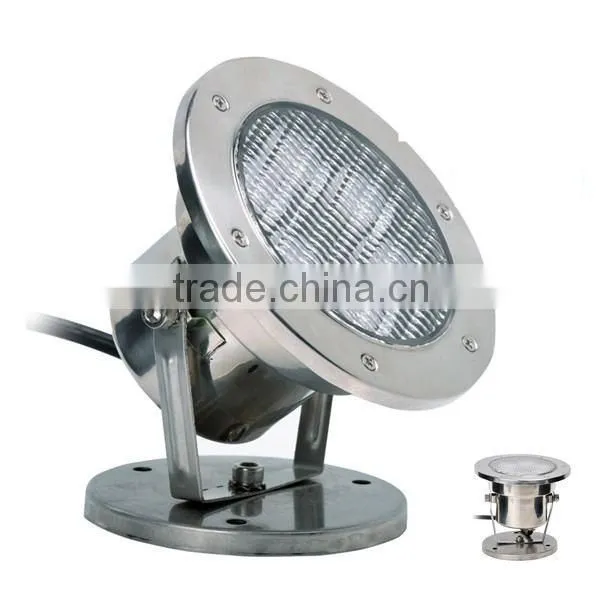

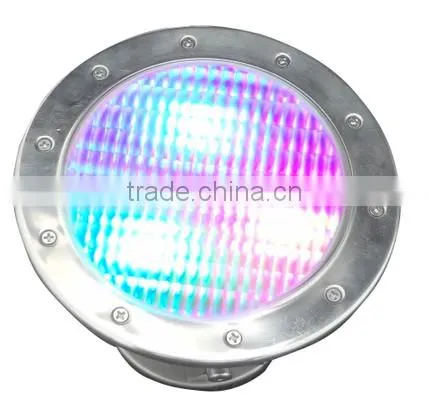

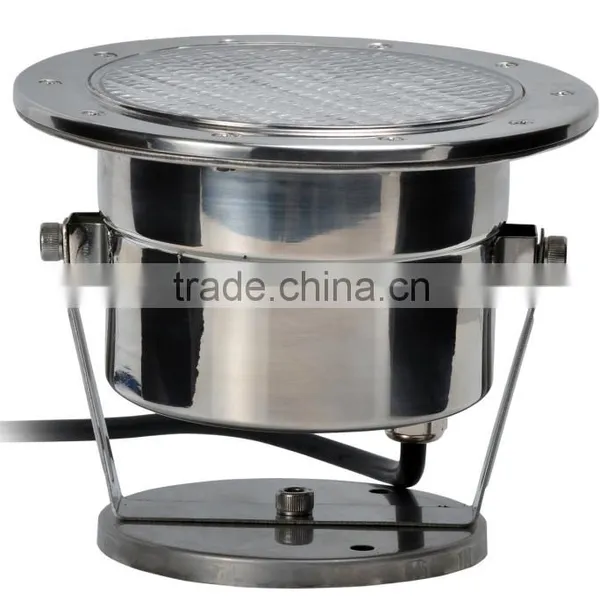

Details pictures for 3W led underwater fishing light ip68 waterproof
3W led underwater fishing light ip68 waterproof DMX Controller

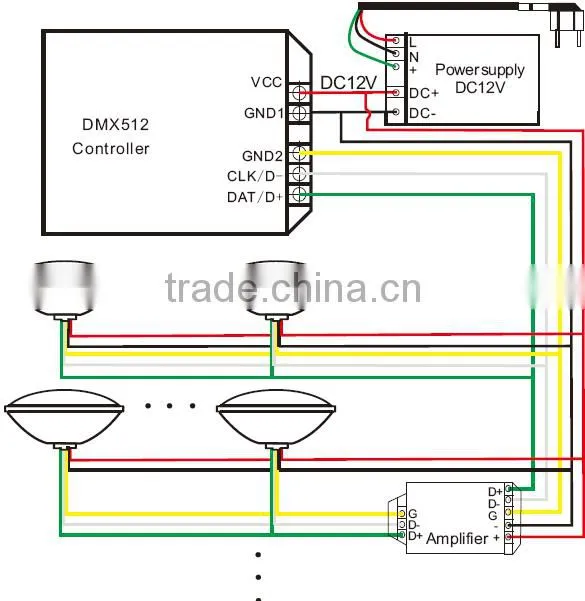

3W led underwater fishing light ip68 waterproof conncetion diagram
User Manual for 3W led underwater fishing light ip68 waterproof
Step1: connect DMX Controller to power line as below diagram
Step2: connect lamps to power line and DMX Controller as below diagram
Remark:
DMX Controller VCC connect to Power supply DC+, GND1 connect to Power supply DC-
5 Wires:
Brown wire connect to DMX controller “VCC”
Black wire connect to DMX controller “GND1”
Yellow wire connect to DMX controller “GND2”
White wire connect to DMX controller “CLK/D-”
Blue wire connect to DMX controller “DAT/D+”
1 pc DMX512 Controller could connect many lamps, in case signal is not strong enough after connect too many lamps, use amplifier to enhance the signal.
Packaging:
1pc in135×126×110 color / white box
30pcs in 650x300x350 carton
Shipping:10 ~13 working days based on the order volume.
Heguang Lighting specialized in led swimming pool lights for many years, main products cover led par56 pool lamp & led surface mounted light & led fountain light & led underwater light.
Briefly develop history:
In 2006, Heguang established
In 2009, specializing in Led Swimming pool light
In2011, develop overseas market
In 2012, attending world-class exhibition
In 2014, building the brand awareness
