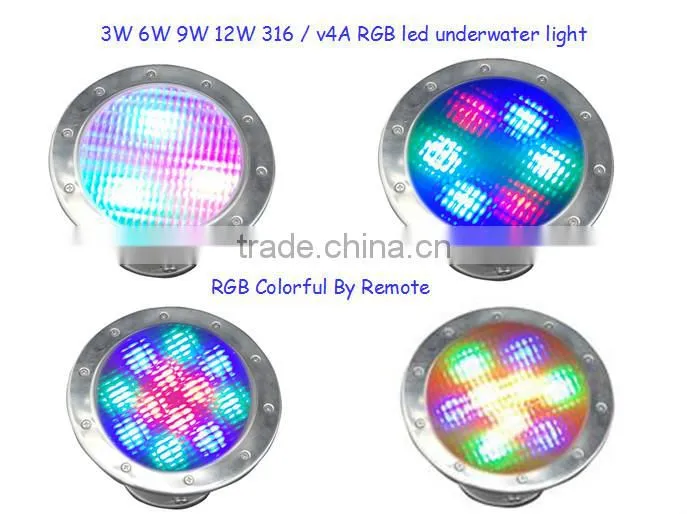

rgb par38 underwater led lights
Features
*316 (V4A) stainless steel LED underwater light, unique heat-dissipation & waterproof design, high-grade and artistic, wide application.
*Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
*IP68 structure waterproof
*high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.
*Color: Red, Green, Blue, RGB, 14 kinds of color changing mode
Single color – white, red, green, blue, yellow
* kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,
Automatic control, External control (wire control)
*Constant driver to make sure LED light working stable, avoid any flashing and noisy
*Voltage:AC/ DC 12V, Frequency: 50/60HZ
*Beam angle: 15°/25°/30°/45°/60° for options
*Life span: >30000 hours
*Over-current protection
Main parameters for rgb par38 underwater led lights
Specification | Parameter | |
Model No. | HG-P38U-9*1W | HG-P38U-12*1W |
LED Qty. | 9 pcs 1W High power | 12 pcs 1W High power |
Input Voltage | AC/DC 12V | AC/DC 12V |
Input Frequency | 50/60 Hz | 50/60 Hz |
Power | 10±1 W(W/G/B/RGB) 6±1 W(red) | 13±1 W(W/G/B/RGB) 8±1 W(red) |
Luminous flux | 600±10%Lm(P.W) 580±10%Lm(W.W) 550±10%Lm(C.W) 200±10%(R) / 400±10%(G) 80±10%(B) /260±10%(RGB) | 780±10%Lm(P.W) 750±10%Lm(W.W) 700±10%Lm(C.W) 280±10%(R) / 520±10%(G) 120±10%(B) /350±10%(RGB) |
Color temperature | p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k | p.w.6000~7000k w.w.:3000-3500k c.w.8000~10000k |
Wave Length | R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm | R:620-630 K/nm G:515-525 K/nm B:460-470 K/nm |
Dimension | 147×123 mm | 147×123 mm |
Working temperature | -20~50℃ | -20~50℃ |
Storage Temperature | -20~50℃ | -20~50℃ |
Base | wire | wire |
Constant driver | yes | yes |
IP rate(w/housing) | IP68 | IP68 |

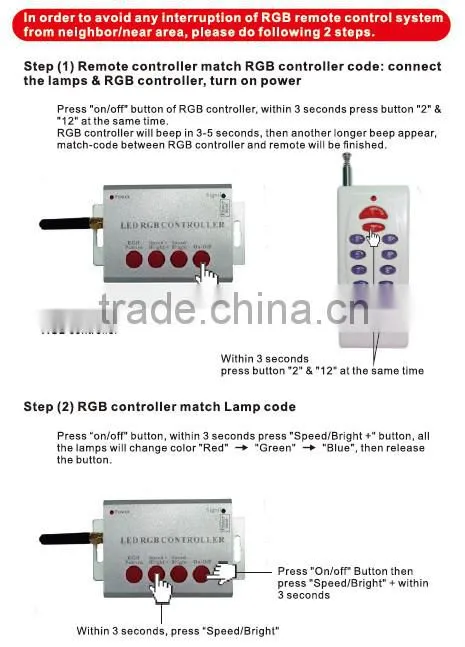

RGB Remote Control Methods

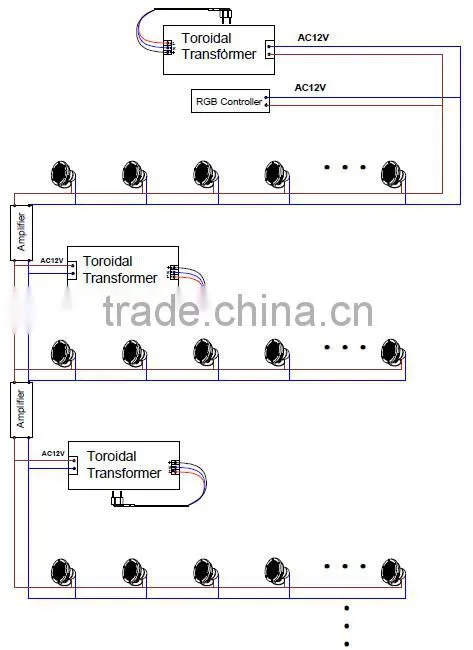

Diagram
User Manual

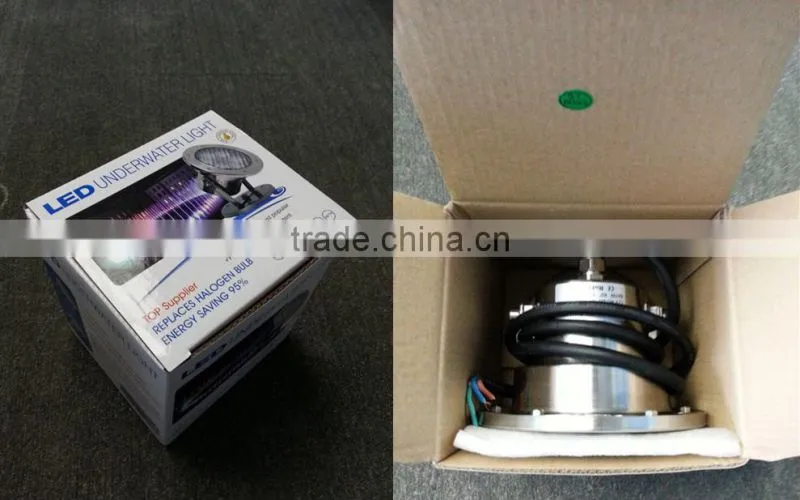

Packaging:
1pc in156×146×110 color / white box

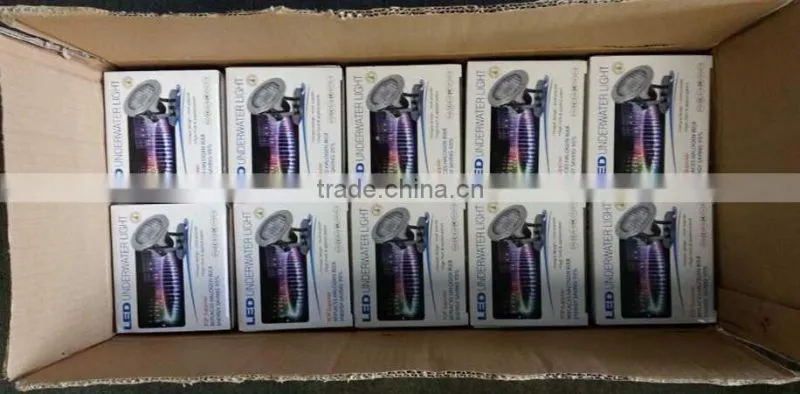

30pcs in 650x320x350 carton
Shipping:
10 ~13 working days based on the order volume.
Heguang Lighting specialized in led swimming pool lights for many years, main products cover led par56 pool lamp & led surface mounted light & led fountain light & led underwater light.
Briefly develop history:
In 2006, Heguang established
In 2009, specializing in Led Swimming pool light
In2011, develop overseas market
In 2012, attending world-class exhibition
In 2014, building the brand awareness
