Om300 Calibrate Joystick

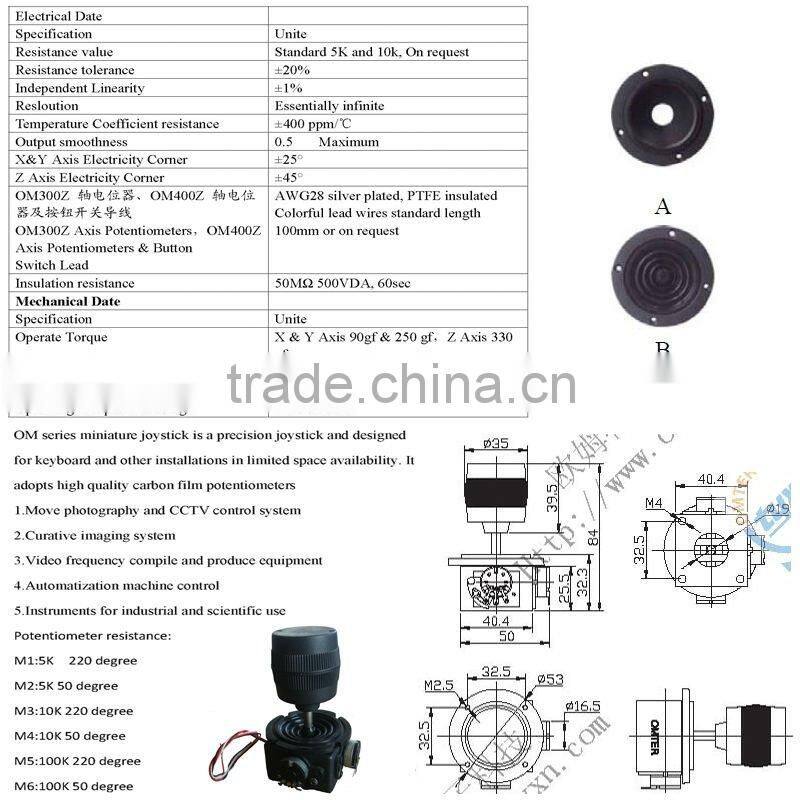

Specifications

1.potentiometer joystick/ joystick potentiometer
2. 3 axis joystick
3.standard resistance 5k and 10k. or could make as demand

1.potentiometer joystick
2.model:OM300A
3.standard resistance 5k and 10k. or could make as customer's needΩ or 10 KΩ on request

4.Resistance Tolerance: ±20%

5.Independent Linearity: ±1 %

6.Resolution: Essentially infinite

7.Temperature Coefficient Resistance: ±400 ppm/

8.Output Smoothness: 0.5 % maximum

9.X And Y Axis Electricity Corner: ±25°P-30°

10.Insulation Resistance: 50 MΩ at 500 VDC,60 sec.

11.Main pivot ball: precision ground stainless steel

12.Stick shaft: φ5mm

13.Operate Torque: X and Y axis 440gf,Z axis 880gf

14.Restoration Error Rate: ±1%

15.Prolepsis Mechanical Lifecycle: 500,000 cycle



...
