OM800 Wheelchair Joystick

Yueqing Omter Electronic & Technology Co., Ltd.

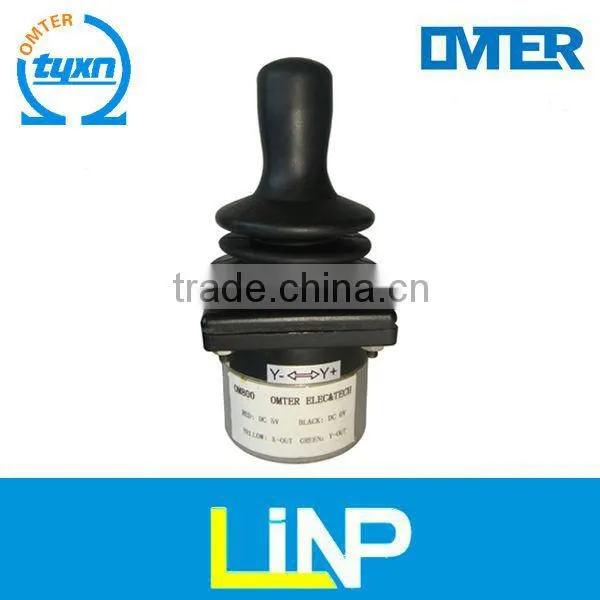

OM800 Wheelchair Joystick thumbnail-1
OM800 Wheelchair Joystick photo-1
US$ 43 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OMTER
Model Number:
OM800
Compatible Platform:
PSP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OMTER
Model Number OM800
Compatible Platform PSP
Type Joystick
Place of Origin Zhejiang, China

Specifications

1. Brand: OMTER
2.OM800 wheelchair joystick
3.optional resistance value
4.Competivie price
5.High quality

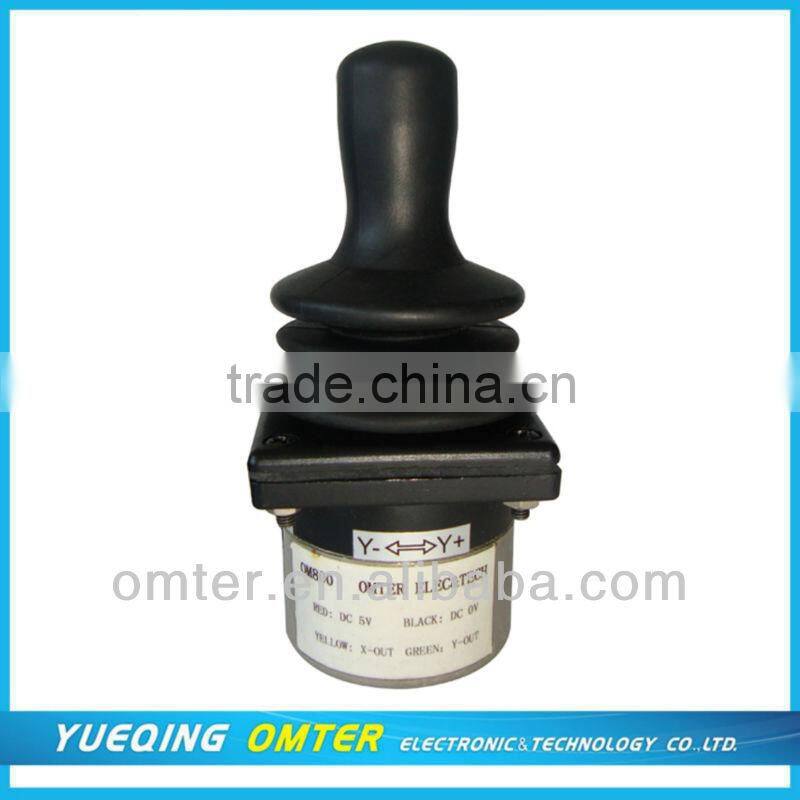

    OM800 wheelchair joystick

OM800 wheelchair joystick

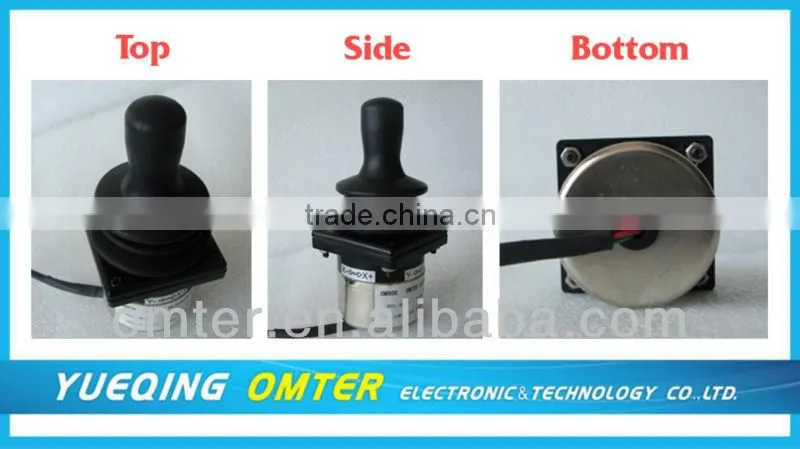

Detailed picture:

OM800 wheelchair joystick



Product characteristic:

Spring automatic reset.

 Double axis in any direction operation. Button could select.

Could according to requirement select the output voltage range,Could choose RS232 or the USB connection output.

Application scope:

This series product mainly applies in the electrically operated wheelchair,the video frequency control device.



Product Selection:
OM800 - ooo
  1.           2.
Sub-item selection instructions:
1. Product series numberOM800 double axis Hall type , the spring automatic reset, without direction switch,installment pitch of holes size 36mm*36mm Mainly uses in the wheelchair controls the video frequency control and the machine shop truck control
2.Output signal

H51= Hall type DC5V power source, output voltage 0.5V~2.5V~4.5V

H52= Hall type DC5V power source, output voltage 0V ~2.5V~5.0V

The RS232=RS232 serial digital signal output

The USB=USB connection digital signal output



Technical parameter:

Mechanical parameter:
Swing angle:±25
Service life:Is bigger than 5,000,000 times
Operation strength:15N (biggest)
Limit strength:50N
Weight:120g
Electrical parameter:
Total current:<20mA
Linearity tolerance:± 5%
Power supply voltage:DC5V±10%
Load resistance:>10KΩ
Environment parameter:
Operating temperature scope:- 40°C~+80°C
Protection rank:IP65

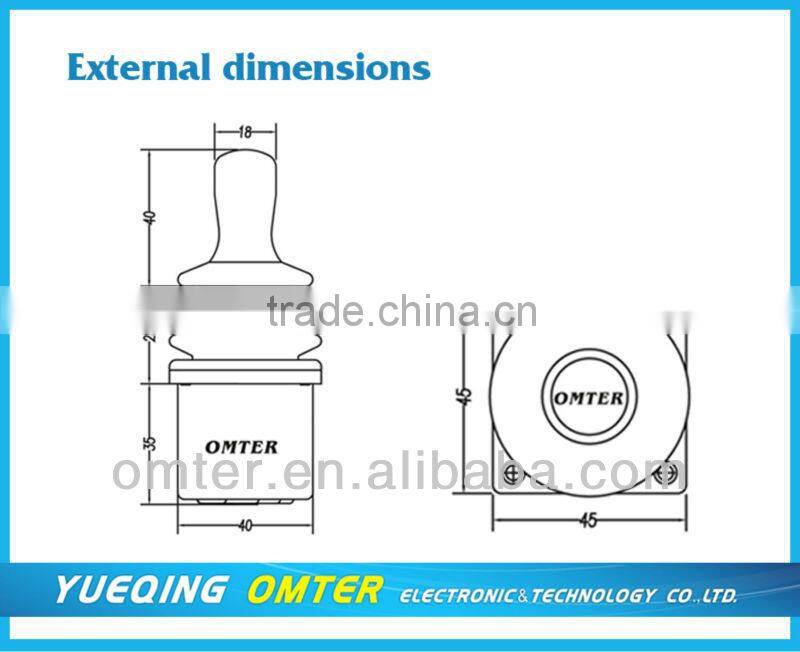

Hall Series Drawing:

OM800 wheelchair joystickOM800 wheelchair joystick



Electrical installment:

Line colorLine No.Function
Red1+5VDC
Black20V
Yellow3X-OUT
Green4Y-OUT

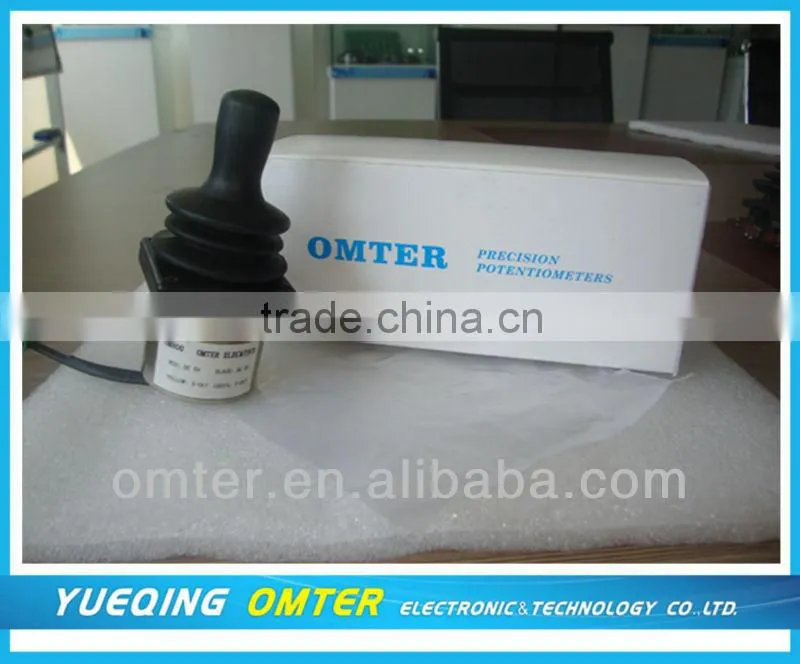

Package:

OM800 wheelchair joystick



Express delivery :

OM800 wheelchair joystick



Sample:

1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union



Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year



Advantage:

1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)



Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .



Company Picture:

OM800 wheelchair joystick



....
