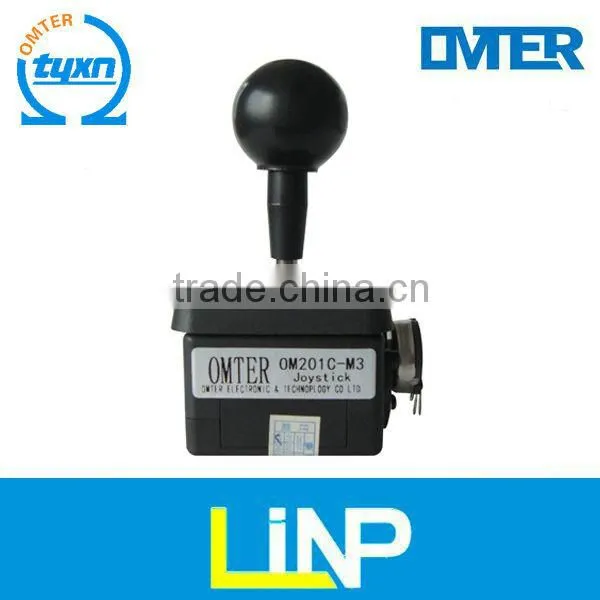

OM201C-M3 Potentiometer Joystick

Yueqing Omter Electronic & Technology Co., Ltd.
OM201C-M3 Potentiometer Joystick thumbnail-1
OM201C-M3 Potentiometer Joystick photo-1
US$ 19 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Omter
Model Number:
OM201
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Omter
Model Number OM201

Specifications

1. Brand: OMTER
2.OM201 joystick
3.optional resistance value
4.Competivie price
5.High quality

      OM201C-M3 potentiometer joystick OM201C-M3 potentiometer joystick

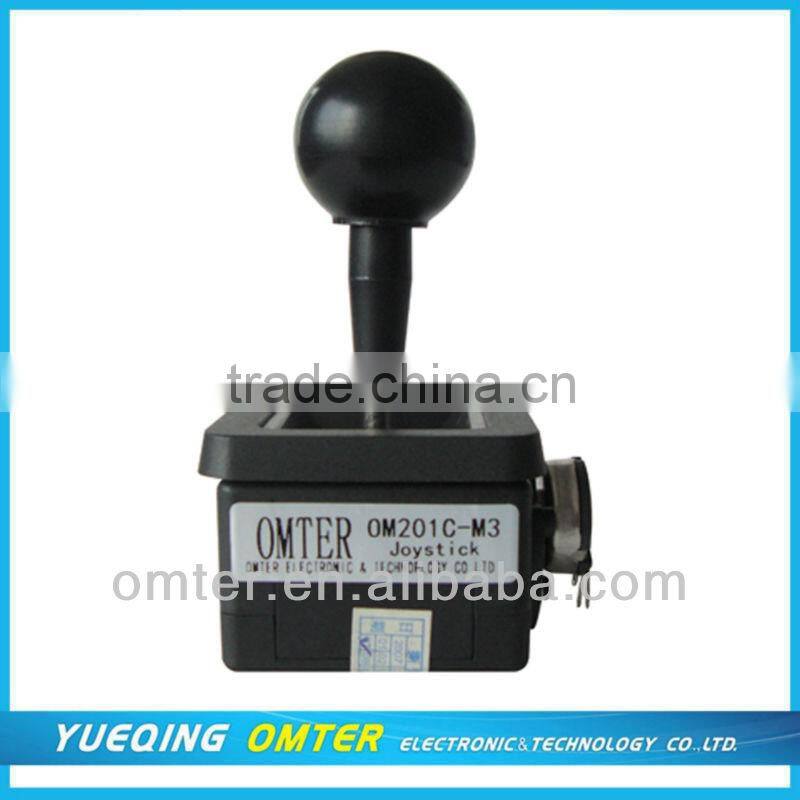

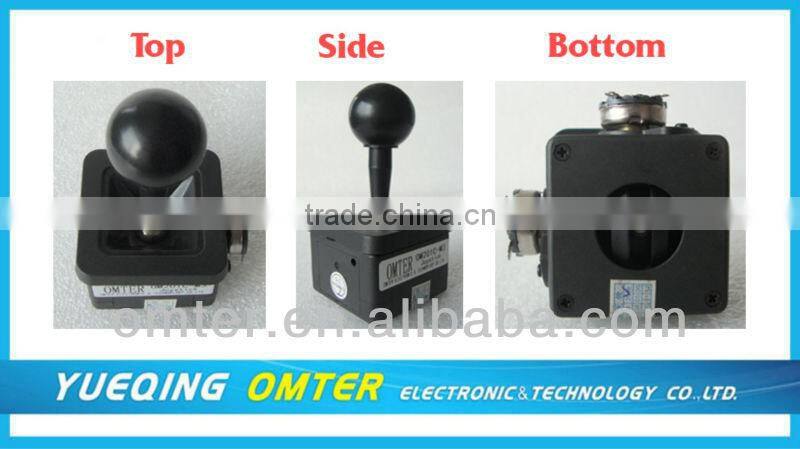

Detailed picture:

OM201C-M3 potentiometer joystick

Features:Flexible handling ,Small resetting error, Long life-time

Optionals:Terminal type,Lead length,Seal form,Switch,potentiometer,soft or heavy handling

Typical Applications:Move photography cctv controlsystem,Measurement equipments,Medical imaging system,Automative control,Video editing equipments,Industrial Instruments



Electrical Date
SpecificationUnite
Resistance valueStandard 5K and 10k, On request
Resistance tolerance±20%
Independent Linearity±1%
ResloutionEssentially infinite
Temperature Coefficient resistance±400 ppm/°C
Output smoothness0.5 Maximum
X&Y Axis Electricity Corner±25°
Z Axis Electricity Corner±45°
OM300Z,OM400Z ,OM300Z Axis PotentiometersAWG28 silver plated, PTFE insulated Colorful lead wires standard length100mm or on request
Insulation resistance50MΩ 500VDA, 60sec
Mechanical Date
SpecificationUnite
Operate TorqueX & Y Axis 90gf & 250 gf,Z Axis 330 gf
Restoration Error Rate±0.03KΩ
Prolepsis Mechanical Lifecycle500,000 cycle
Operating Temperature Range-10°C-80°C
Potentiometer Selection:
M1: The total resistance value is 5K, but the effect adjust resistance range is from 1.8K to 2.5k,then from 2.5k to 3.2K.
M2: The total resistance value also is 5K, but the adjust range is from 0k to 2.5K then from 2.5K to 5K.
M3: The total resistance value is 10K, the adjust range is from 3.5K to 5k,then from 5K to 6.5K.
M4: The total resistance value is 10K, the adjust range is from 0K to 5K, then from 5K to 10K.
M5: The total resistance value is 100K, the adjust range is from 36K to 50 k,then from 50K to 64K.
M6: The total resistance value is 100K, the adjust range is from 0K to 50 k,then from 50 K to 100K.

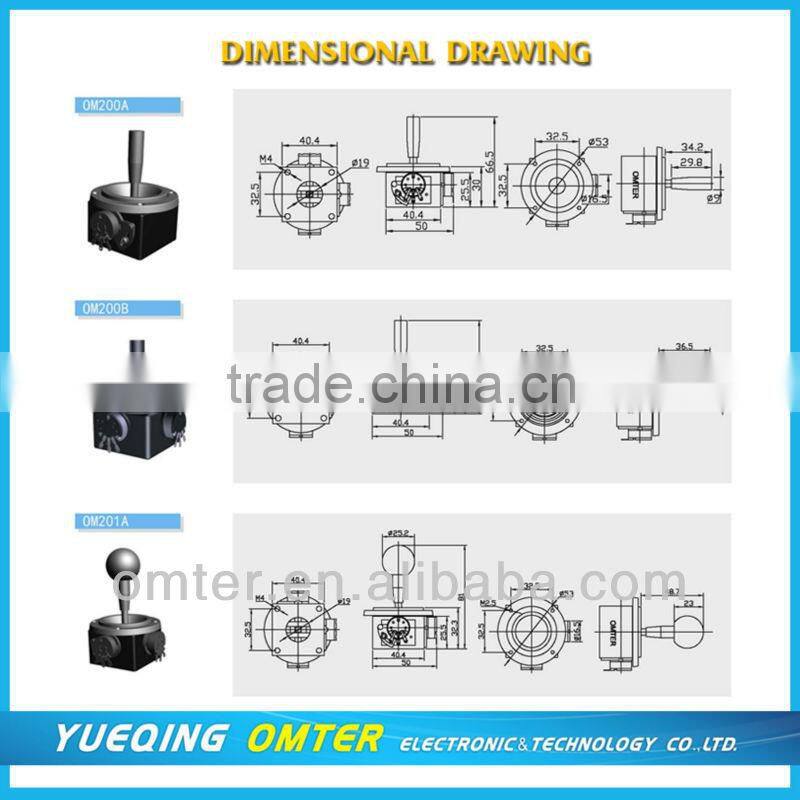

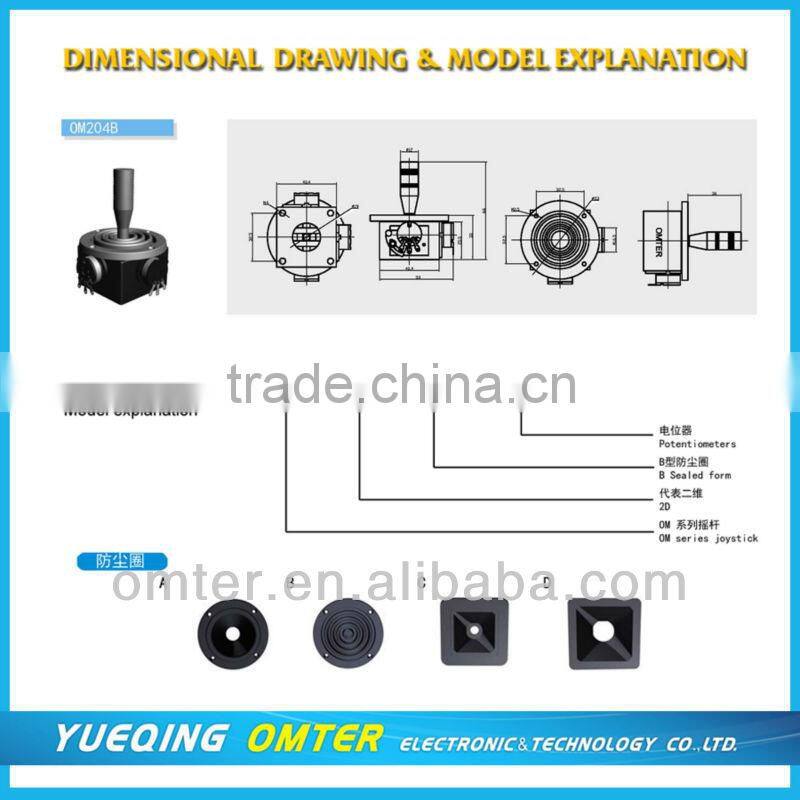

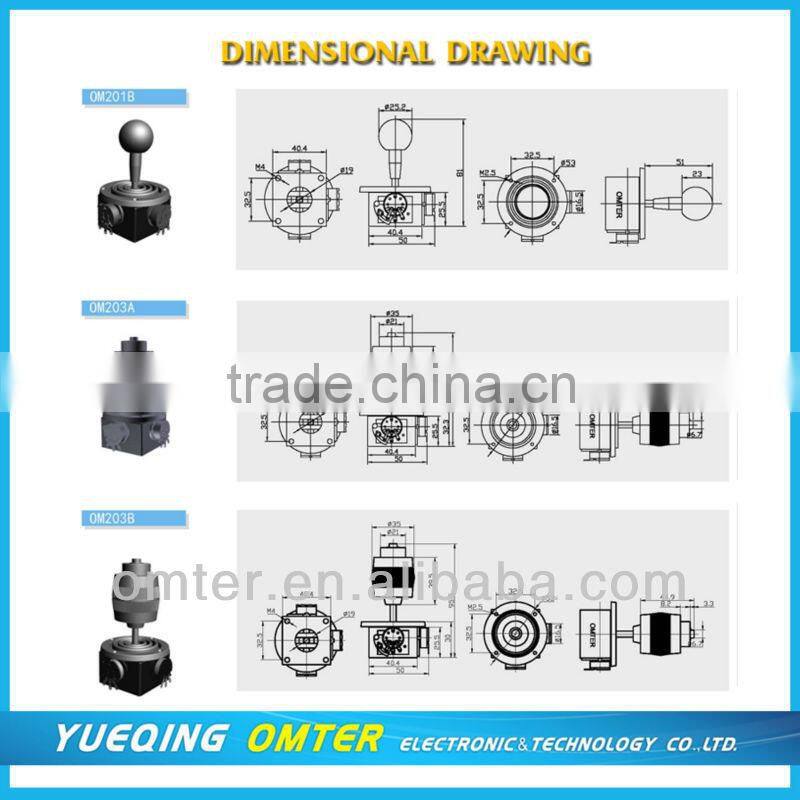

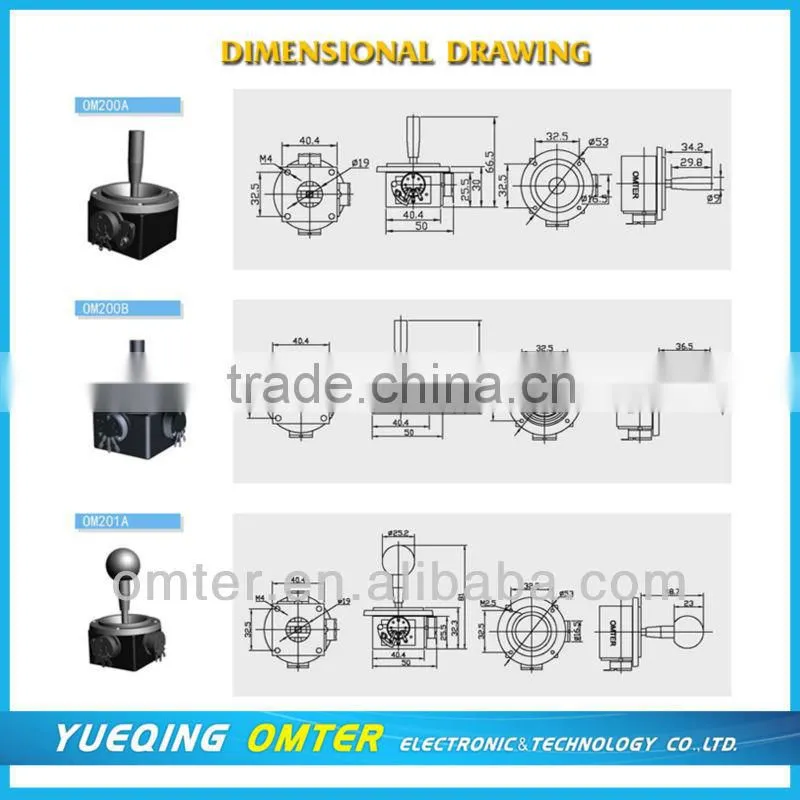

OM200 Series Drawing:

OM201C-M3 potentiometer joystickOM201C-M3 potentiometer joystickOM201C-M3 potentiometer joystick

OM201C-M3 potentiometer joystick



Package:

OM201C-M3 potentiometer joystick



Express delivery:

OM201C-M3 potentiometer joystick



Sample:

1. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

2. Samples payment term: T/T, PAYPAL, Western union



Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year



Advantage:

1.Low MOQ: 1PC

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)



Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
