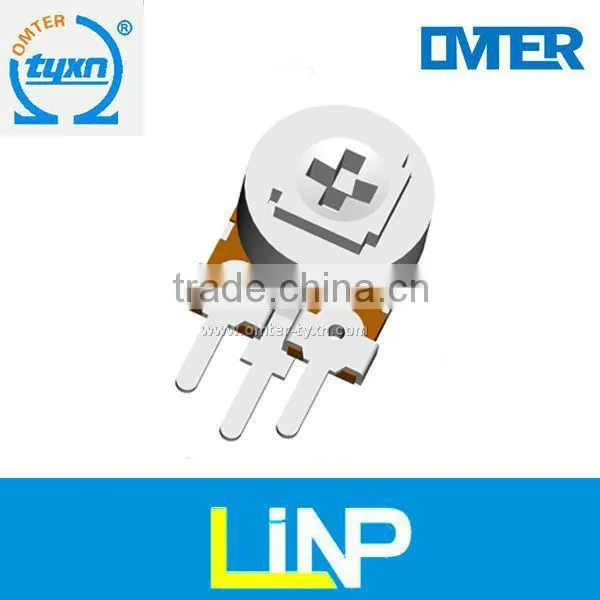

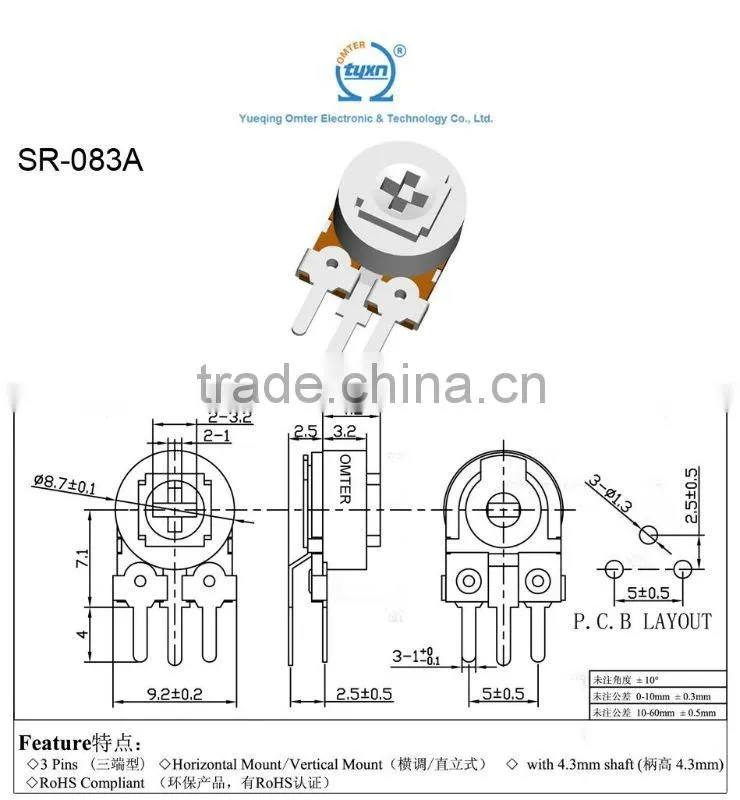

12mm carbon potentiometers SR-083A
- 100 Piece / Pieces per Month
- NINGBO
- Credit Card
- New guide vane position potentiometer 025-32570-000, maintenance of chlorine liquefaction unit slide valve malfunction
- Slide potentiometer 534B0293H01, maintenance of lubrication system malfunction in York Industrial Refrigeration Compressor Unit
- 8mm Potentiometer: Horizontal, 10K Ohm+/-10%, with Rotary Switch, Shaft Length 15mm, Used for Walkie Talkies, Radios and Other Instruments and Equipment
- 9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
- 9mm horizontal single gang rotary potentiometer knob adjustable resistance with rotary switch
- 8mm metal shaft horizontal type dual gang Rotary Potentiometer with rotary switch, use for interpone and Small Audio Device, Small Radio
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | OMTER | Model Number: | SR-083A |
Type: | Trimming Potentiometer | Technology: | Carbon Film | Resistance: | 100Ω- 1MΩ |
Resistance Tolerance: | ±30% standard | Rated Power: | 0.1W | Max. Operating Voltage: | Less than 50V |
Operating Temperature: | -5°C ~+40°C |
Product Description
Specifications
1.High quality and reasonable price2.model NO : SR-083A
3.carbon POT. trimmer potentiometer
4.industrial POT.
1.High quality and reasonable price
2.model NO : SR-083A
3.carbon POT. trimmer potentiometer
4.industrial POT.
General Specification
MAIN SPECIFICATION | |
Total Resistance | 100Ω- 1MΩ |
Total Resistance tolerance | ±30% standard |
Residual Resistance | Maximum 5% of nominal resistance ,but less than 30Ω |
Taper | Linear (B) |
operation voltage | Less than 50V |
Power Rate | 0.1W |
Operation temperature | -5°C ~+40°C |
Temperature characteristics | +5~+30°C change in resistance after 5 hours at 70 °C |
Humidity characteristics
| Maximum ± 20% change in resistance after 350 hours at 40°C RH95% loaded |
MECHANICAL | |
Total Rotation Angle | 200±20(degree) |
Rotation Torque | 60~300 g.cm |
Shaft Stop Strength | 500gf.cm Min |
Mechanical strength | Bakelite sheet be not broken down under pressure of 1kg.cm maximum |
Soldering time | 2 seconds 250°C |
Durable performance | |
Rotational life | maximum15% change in nominal resistance after 100 cycles |
Load life | Maximum 5% change in nominal resistance after 3 hours loaded |
...
