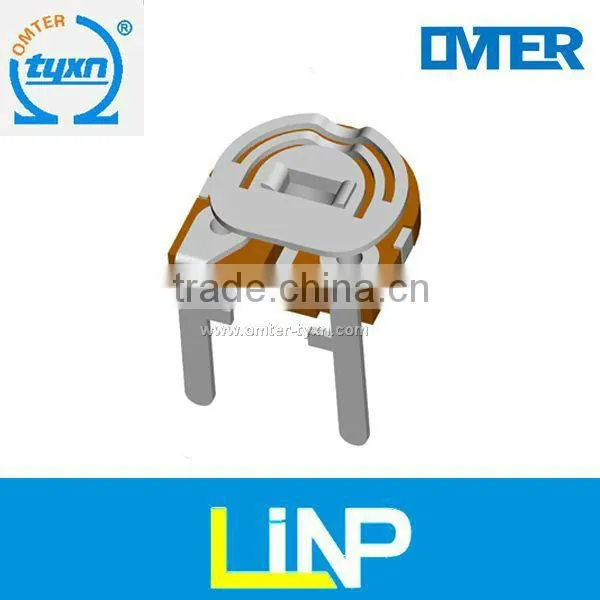

10mm potentiometer SC-065

FOB Price

USD $1 - $15 / Piece

500 Pieces(Min.Order)

Product Details

1.High quality and reasonable price
2.model NO : SC-065
3.miniature POT. trimmer potentiometer
4.industrial POT.

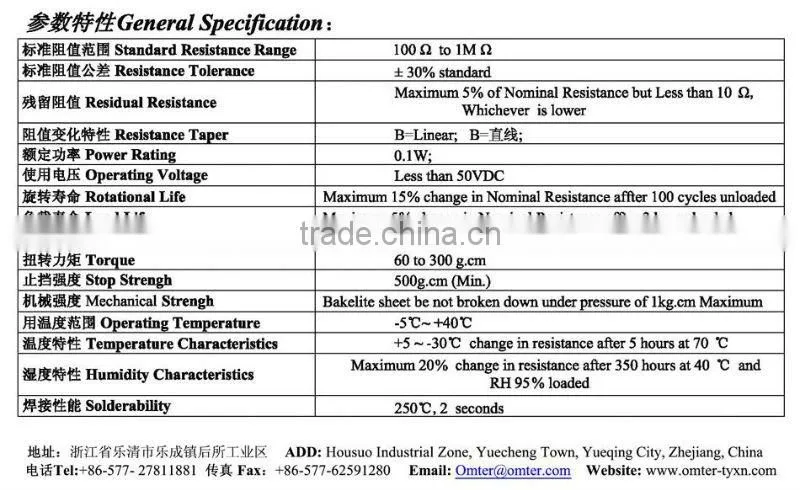

General Specification

MAIN SPECIFICATION
Total Resistance	100Ω- 1MΩ
Total Resistance tolerance	±30% standard
Residual Resistance	Maximum 5% of nominal resistance ,but less than 30Ω
Taper	Linear (B)
operation voltage	Less than 50V
Power Rate	0.1W
Operation temperature	-5°C ~+40°C
Temperature characteristics	+5~+30°C change in resistance after 5 hours at 70 °C
Humidity characteristics	Maximum ± 20% change in resistance after 350 hours at 40°C RH95% loaded

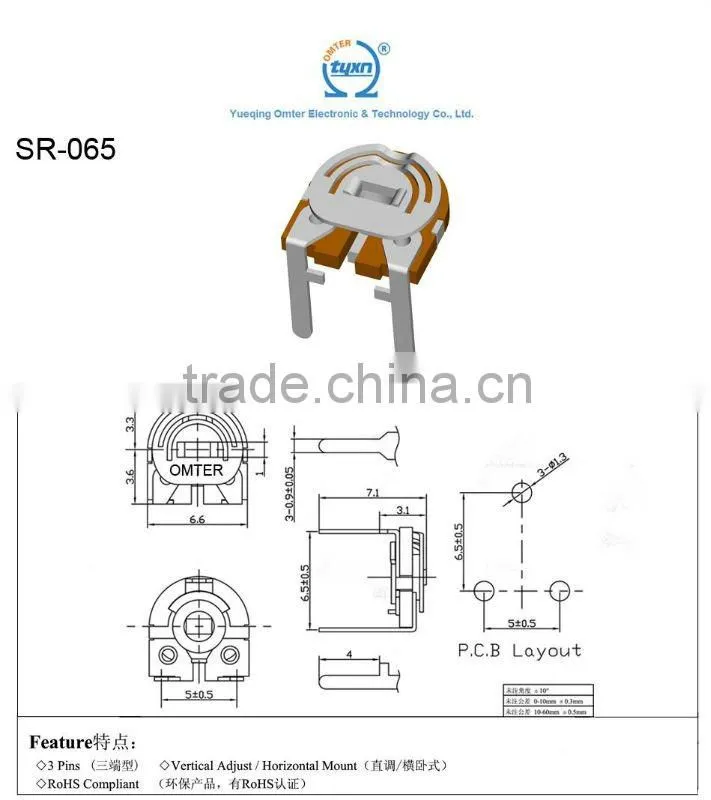

MECHANICAL
Total Rotation Angle	200±20(degree)
Rotation Torque	60~300 g.cm
Shaft Stop Strength	500gf.cm Min
Mechanical strength	Bakelite sheet be not broken down under pressure of 1kg.cm maximum
Soldering time	2 seconds 250°C
Durable performance
Rotational life	maximum15% change in nominal resistance after 100 cycles
Load life	Maximum 5% change in nominal resistance after 3 hours loaded

....

Yueqing Omter Electronic & Technology Co., Ltd.: Contact nameSweetie lin; Phone0086-0577-27811881; AddressHousuo Industrial Zone, Yuecheng Town, Yueqing
