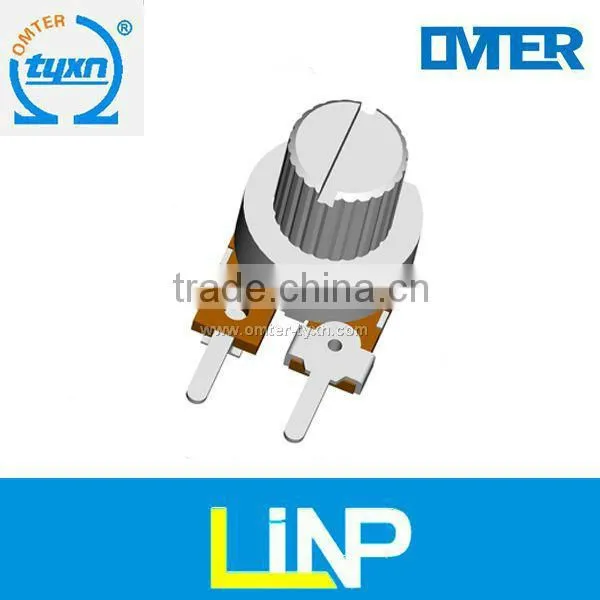

10k Ohm Potentiometer SR-082B

Name: 10k Ohm Potentiometer SR-082B
Brand: OMTER
SKU: 123743371
Availability: InStock

US$ 1 - 15 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OMTER

Model Number:

SR-082B

Yueqing Omter Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OMTER

Model Number SR-082B

Type Trimming Potentiometer

Technology Carbon Film

Resistance 100Ω- 1MΩ

Resistance Tolerance ±30% standard

Rated Power 0.1W

Max. Operating Voltage Less than 50V

Operating Temperature -5°C ~+40°C

Specifications

1.High quality and reasonable price
2.model NO : SR-082B
3.miniature POT. trimmer potentiometer
4.industrial POT.

General Specification

MAIN SPECIFICATION
Total Resistance	100Ω- 1MΩ
Total Resistance tolerance	±30% standard
Residual Resistance	Maximum 5% of nominal resistance ,but less than 30Ω
Taper	Linear (B)
operation voltage	Less than 50V
Power Rate	0.1W
Operation temperature	-5°C ~+40°C
Temperature characteristics	+5~+30°C change in resistance after 5 hours at 70 °C
Humidity characteristics	Maximum ± 20% change in resistance after 350 hours at 40°C RH95% loaded

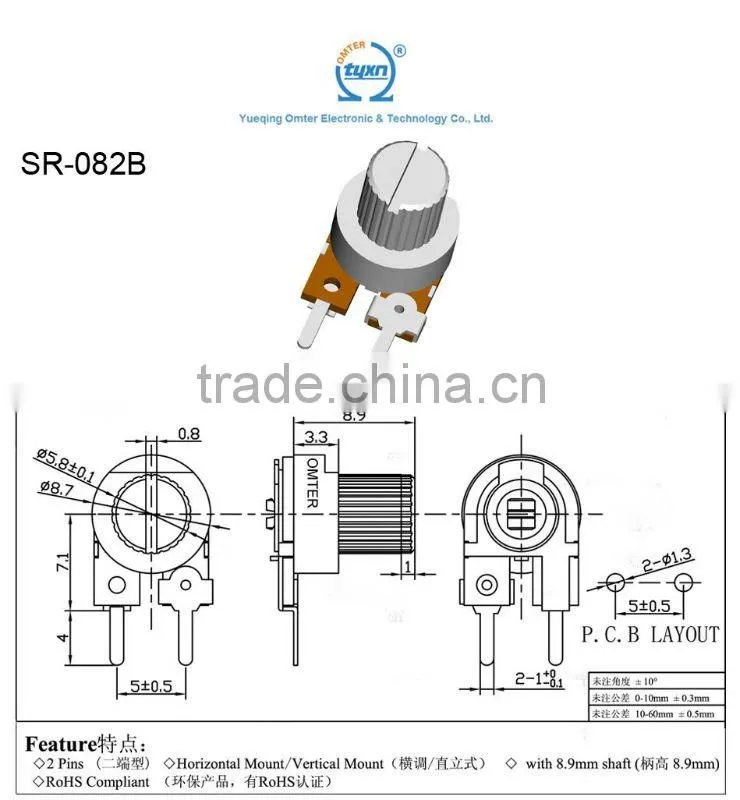

MECHANICAL
Total Rotation Angle	200±20(degree)
Rotation Torque	60~300 g.cm
Shaft Stop Strength	500gf.cm Min
Mechanical strength	Bakelite sheet be not broken down under pressure of 1kg.cm maximum
Soldering time	2 seconds 250°C
Durable performance
Rotational life	maximum15% change in nominal resistance after 100 cycles
Load life	Maximum 5% change in nominal resistance after 3 hours loaded
