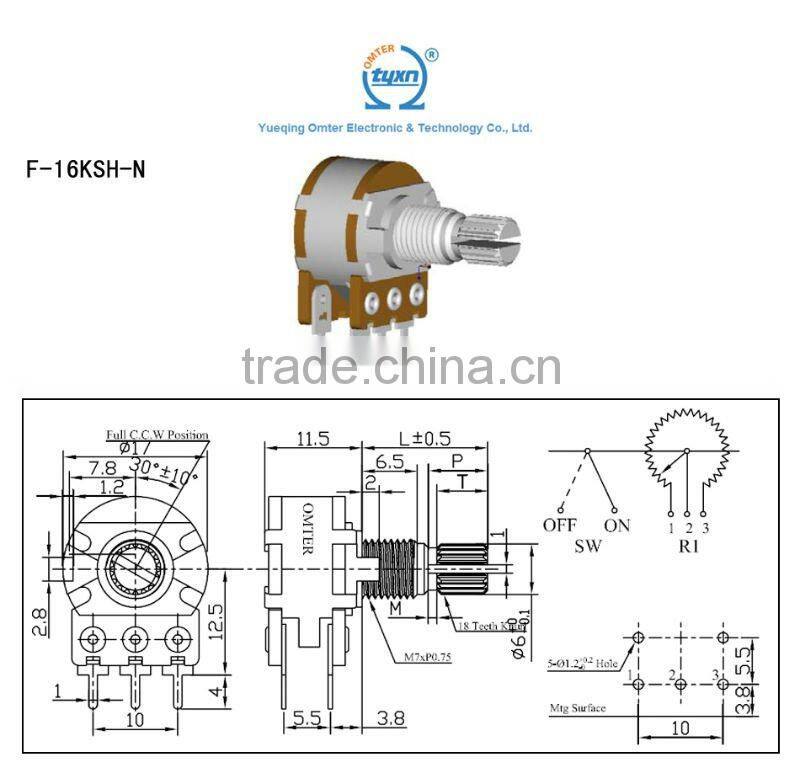

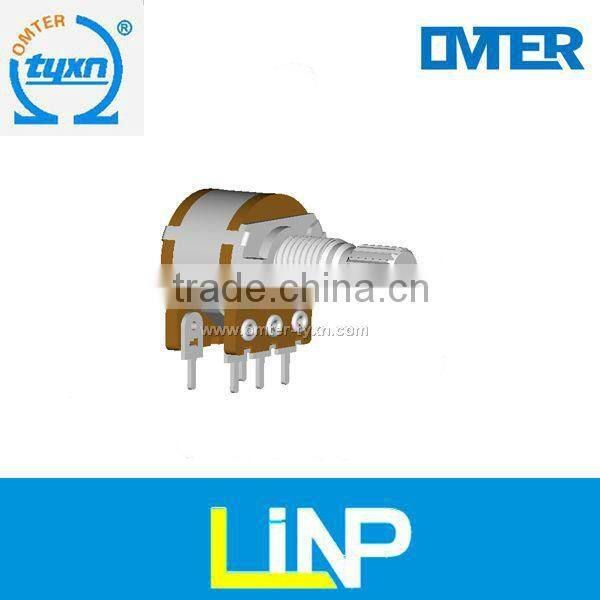

F-16KSH-N Knurled Shaft Potentiometer

Name: F-16KSH-N Knurled Shaft Potentiometer
Brand: OMTER
SKU: 123743117
Availability: InStock

Yueqing Omter Electronic & Technology Co., Ltd.

US$ 0.1 - 5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OMTER

Model Number:

F-16KSH-N

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OMTER

Model Number F-16KSH-N

Type Rotary Potentiometer

Technology Carbon Film

Resistance 500Ω- 1MKΩ

Resistance Tolerance ±20%

Rated Power Single unit linear B:0.2W Other Tapers:0.1W Dual unit linear B:0.125W;

Max. Operating Voltage Linear B:AC200V;Other :AC 150V

Operating Temperature normal

Specifications

1.High quality and reasonable price
2.model NO : F-16KSH-N
3. knurled shaft Rotary POT.Rotary potentiometer
4.industrial PO

General Specification

MAIN SPECIFICATION
Total Resistance	500Ω- 1MKΩ
Total Resistance tolerance	±20%
Resistance Tape	A,B,C,D
Max. operation voltage	Linear B:AC200V;Other :AC 150V
Power Rate	Single unit linear B:0.2W Other Tapers:0.1W
	Dual unit linear B:0.125W;other:0.06W
Withstanding voltage	1minute at AC 500V
Noise	Less than 100mV
Insulation resistance	more than 100mΩ at DC500V
Residual Resistance Value	Term.1~2: Less than 20Ω
	Term.2~3: Less than 20Ω
Tracking error	-40dB~0dB±3dB
Switch return route	S.P.S.T.
Switch contact resistance	Less than 50 mΩ
Switch power rate	Single unit 1.0A at AC/DC 12V
	Dual Unit 2.0A at AC/DC 125v
Total Rotation Angle	300±5(degree)
Rotation Torque	20~200 gf.cm
Shaft Stop Strength	7.0Kgf.cm Min
push-pull strength	8.0kgf Min
Switch rotation angle		35±10(degree)
Switch torque	150~500 gf.cm
