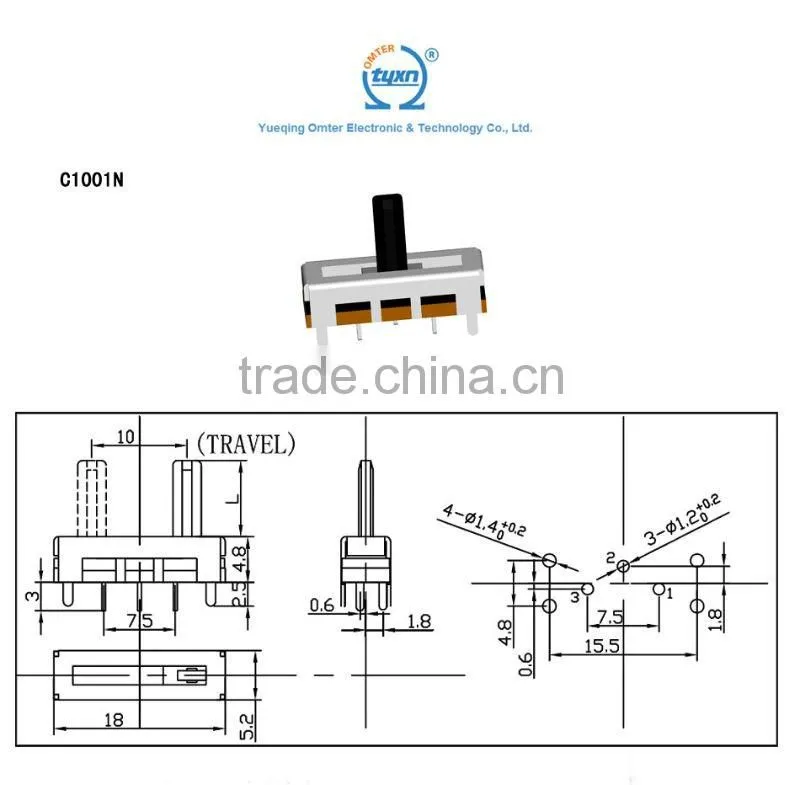

C1001N Potentiometers Slide Types
US$ 0.5 - 15
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
C1001N
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C1531N-A1 22k Slide PotentiometerUS$ 1 - 15MOQ: 500 Pieces -
10w Wire Wound Potentiometer 7286US$ 1 - 15MOQ: 500 Pieces
-
10k Wire Wound Potentiometer 534US$ 1 - 15MOQ: 500 Pieces
-
10k Rotary Potentiometer 3590US$ 1 - 15MOQ: 500 Pieces
-
10k Potentiometer Rotary Switch 3540US$ 1 - 15MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
C1001N
Type
Slide Potentiometer
Technology
Carbon Film
Resistance
500Ω~1MΩ
Resistance Tolerance
±20%
Rated Power
B:Single 0.3 Dual 0.15 Except B: Single 0.1 Dual 0.05
Max. Operating Voltage
B:100V,except B: 200V
Operating Temperature
normal
Specifications
1.High quality and reasonable price2.model NO : C1001N
3.slide potentiometer
4.industrial POT.
1.High quality and reasonable price
2.model NO : C1001N
3.slide potentiometer
4.industrial POT.
Mechanical characteristics
Items |
C1001N |
Operating force |
30gf.cm~100gf.cm |
Lever stopper strength |
3Kgf.cm (5mm point from mounting surface) |
Lever wobble |
2(2×L)/20mm Max (L:Level length both sides) |
Click slip-out force |
Operating force +20~200gf.cm |
Electrical characteristics
Total resistance |
1KΩ~1MΩ |
Total resistance Tolerance |
±20% |
Residual resistance |
Term.2~3:Less than 20Ω |
Resistance taper |
A,B,C, |
Ratings power |
B:Single 0.3 Dual 0.15 |
Except B: Single 0.1 Dual 0.05 | |
(V)Rated voltage |
B:(C15:100) Except :200 |
B:(C15:50) Except 150 | |
:Slide noise |
less than 47mv |
Insulation resistance |
100MΩ min. at 250V DC |
Voltage proof |
1 minute at 250V AC |
Sliding life |
15,000 cycles min. |
....
