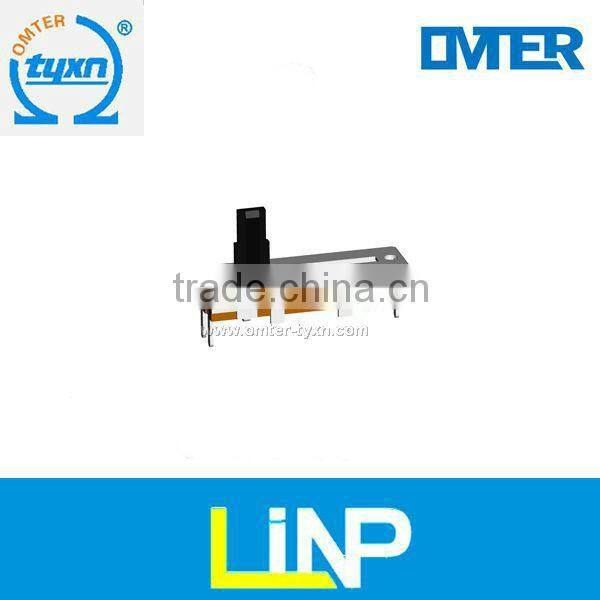

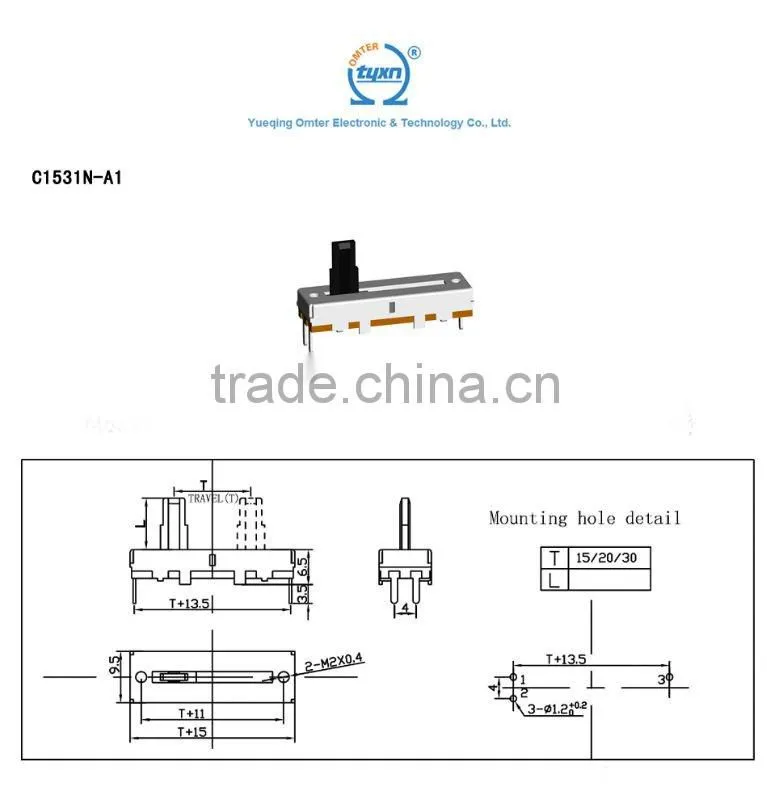

C1531N-A1 22k Slide Potentiometer

Name: C1531N-A1 22k Slide Potentiometer
Brand: OMTER
SKU: 123743151
Availability: InStock

Yueqing Omter Electronic & Technology Co., Ltd.

US$ 1 - 15 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OMTER

Model Number:

C1531N-A1

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OMTER

Model Number C1531N-A1

Type Slide Potentiometer

Technology Carbon Film

Resistance 500Ω- 1MΩ

Resistance Tolerance 20%

Rated Power B:single0.2 dual 0.1, except B: single0.1W dual 0.5W

Max. Operating Voltage B:100V,except B: 200V

Operating Temperature normal

Specifications

1.High quality and reasonable price
2.model NO : C1531N-A1
3.slide potentiometer
4.industrial POT.

General Specification

MAIN SPECIFICATION
Total Resistance	500Ω- 1MΩ
Resistance tolerance	20%
Residual Resistance	Term 1-2:less than 100Ω
Resistance Taper	A.B.C.D.W
operation voltage	B:100V,except B: 200V
Power Rate	B:single0.2 dual 0.1, except B: single0.1W dual 0.5W
Voltage proof	1minute at 300V AC
Insulation resistance	MIX 50mΩ at DC100V
MECHANICAL
Operation force	30 gf.cm~100gf.cm
Lever Stop Strength	5Kgf.cm (5mm point from mounting surface)
Lever wobble	2(2*L)/20mm MAX(L:lever length both sides)
Click slip-out force	Operating force+20~200 gf.cm
Durable performance
sliding life	15000cycle min
Slider noise	Less than 47mv
