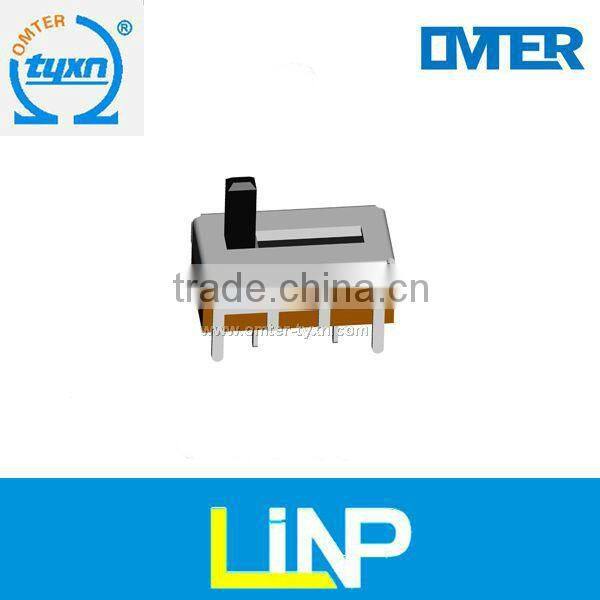

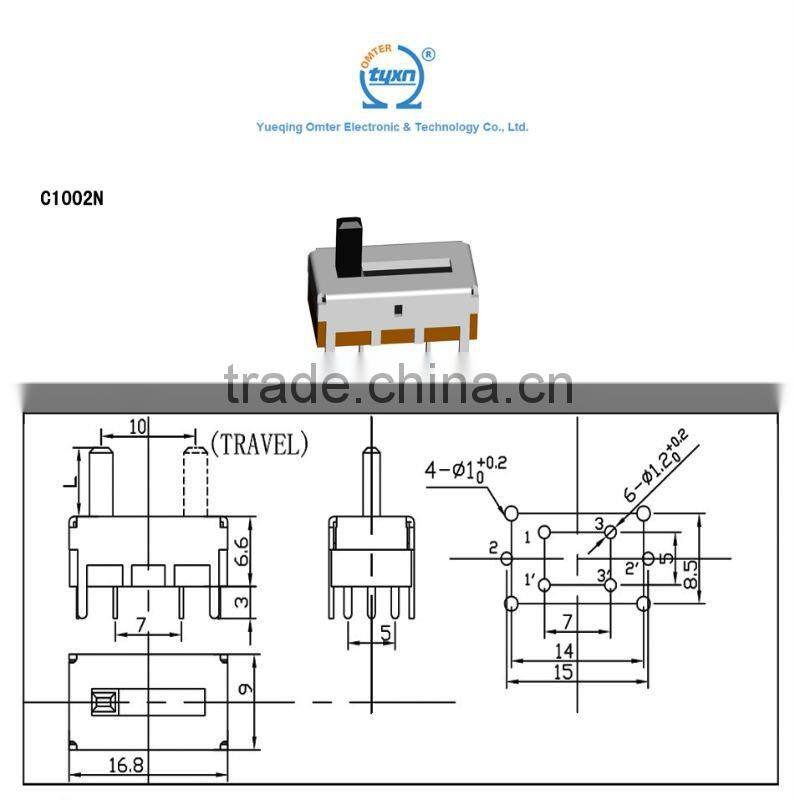

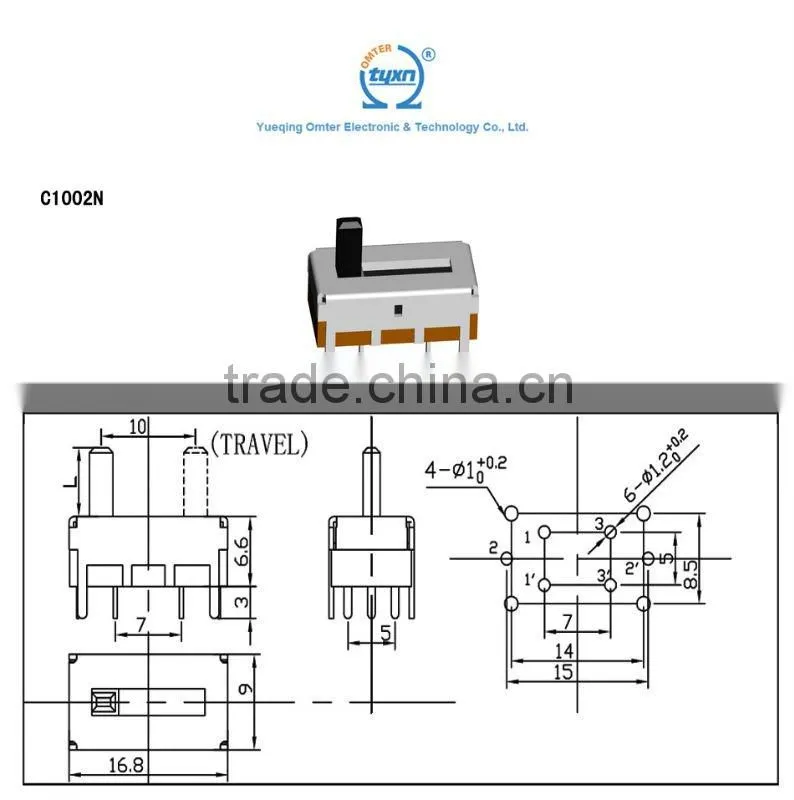

C1002N 11mm Slide Potentiometer
US$ 0.1 - 5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
C1002N
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C09K1N 10mm Slide PotentiometerUS$ 0.1 - 5MOQ: 1000 Pieces -
C2043N-A3 10mm Slide Carbon PotentiometerUS$ 0.1 - 5MOQ: 1000 Pieces
-
F-0911PS d Shaft PotentiomterUS$ 0.1 - 15MOQ: 1000 Pieces
-
F-16KSH-N Knurled Shaft PotentiometerUS$ 0.1 - 5MOQ: 1000 Pieces
-
C1001N Potentiometers Slide TypesUS$ 0.5 - 15MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
C1002N
Type
Slide Potentiometer
Technology
Carbon Film
Resistance
500Ω- 1MΩ
Resistance Tolerance
20%
Rated Power
B:single0.2 dual 0.1, except B: single0.1W dual 0.5W
Max. Operating Voltage
B:100V,except B: 200V
Operating Temperature
normal
Specifications
1.High quality and reasonable price2.model NO :C1002N
3.slide potentiometer
4.industrial POT.
General Specification
MAIN SPECIFICATION | |
Total Resistance |
500Ω- 1MΩ |
Resistance tolerance |
20% |
Residual Resistance |
Term 1-2:less than 100Ω |
Resistance Taper |
A.B.C.D.W |
operation voltage |
B:100V,except B: 200V
|
Power Rate |
B:single0.2 dual 0.1, except B: single0.1W dual 0.5W
|
Voltage proof |
1minute at 250V AC |
Insulation resistance |
MIX 50mΩ at DC100V |
MECHANICAL | |
Operation force |
30 gf.cm~100gf.cm |
Lever Stop Strength |
5Kgf.cm (5mm point from mounting surface) |
Lever wobble |
2(2*L)/20mm MAX(L:lever length both sides) |
Click slip-out force |
Operating force+20~200 gf.cm |
Durable performance | |
sliding life |
15000cycle min |
Slider noise |
Less than 47mv |
...
