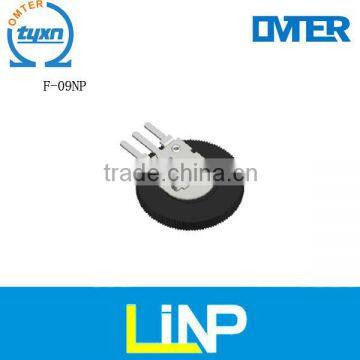

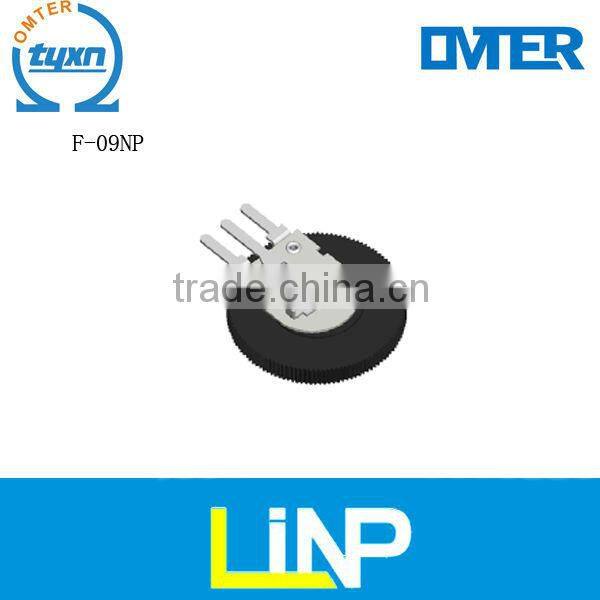

F-09NP Thumbwheel Driving Carbon Potentiometer
US$ 0.3 - 5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OMTER
Model Number:
F-09NP
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2WDD35D-4 1k Linear Dual PotentiometerUS$ 80 - 200MOQ: 5 Pieces -
SR-082C 16mm Potentiometer RotaryUS$ 0.5 - 5MOQ: 1000 Pieces
-
WX14-12 13mm Rotary PotentiometerUS$ 0.5 - 5MOQ: 1000 Pieces
-
Linear (B) Taper Trimmer PotentiometerUS$ 0.1 - 5MOQ: 10000 Pieces
-
C1002N 11mm Slide PotentiometerUS$ 0.1 - 5MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
OMTER
Model Number
F-09NP
Type
Other, carbon potentiometer
Technology
Carbon Composition
Resistance
500Ω- 500KΩ
Resistance Tolerance
+-20%
Rated Power
Linear B: AC 0.1W; Other: 0.05W
Max. Operating Voltage
0.05V
Operating Temperature
normal

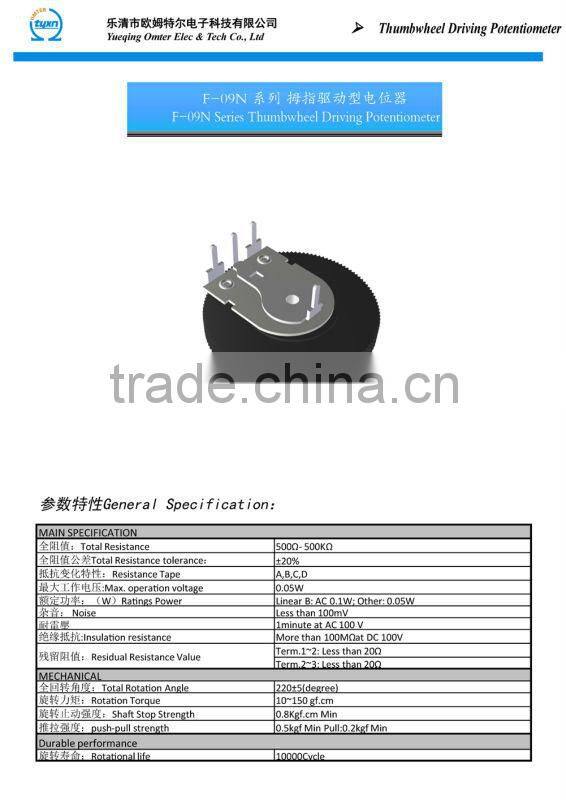

Specifications
F-09NP Thumbwheel Driving carbon potentiometerHigh quality
reasonable price.

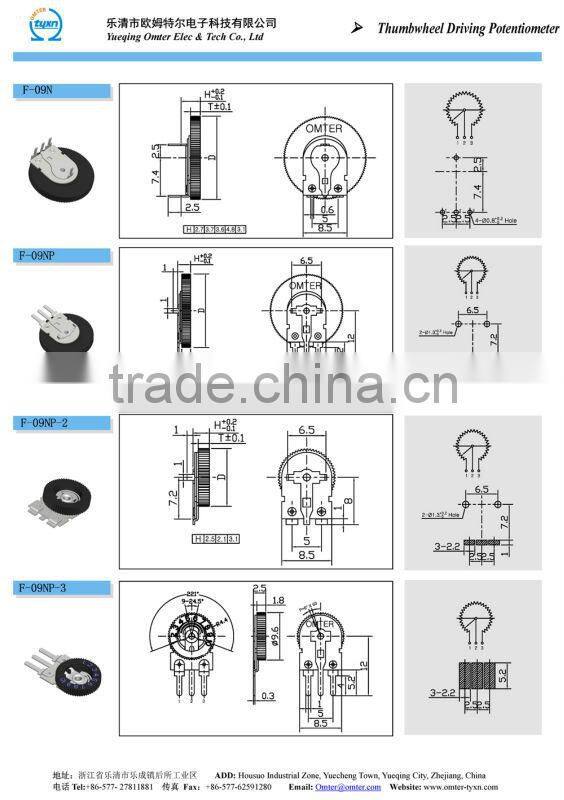

F-09NP Thumbwheel Driving carbon potentiometer
Model: F-09NP
Total Resistance: 500Ω- 500KΩ
Impedance characteristics patterns: A, B, C, D
Max. Working Voltage: 0.05V
Noise: Less than 100mV
Insulation Resistance: More than 100MΩat DC 100V
Dielectric Strength: 1minute at AC 100 V
Residual Resistance: Term.1~2: Less than 20Ω Term.2~3: Less than 20Ω
Total Travel: 220±5(degree)
Starting Torque: 10~150 gf.cm
Push-pull strength: Push:0.5kgf Min Pull:0.2kgf Min
Rotational Life Expectancy: 1,0000 Cycles
....
