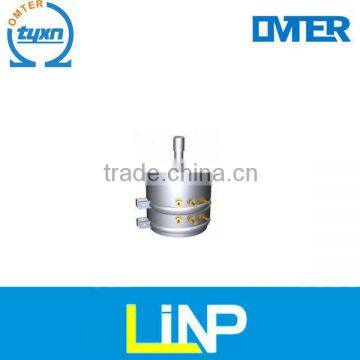

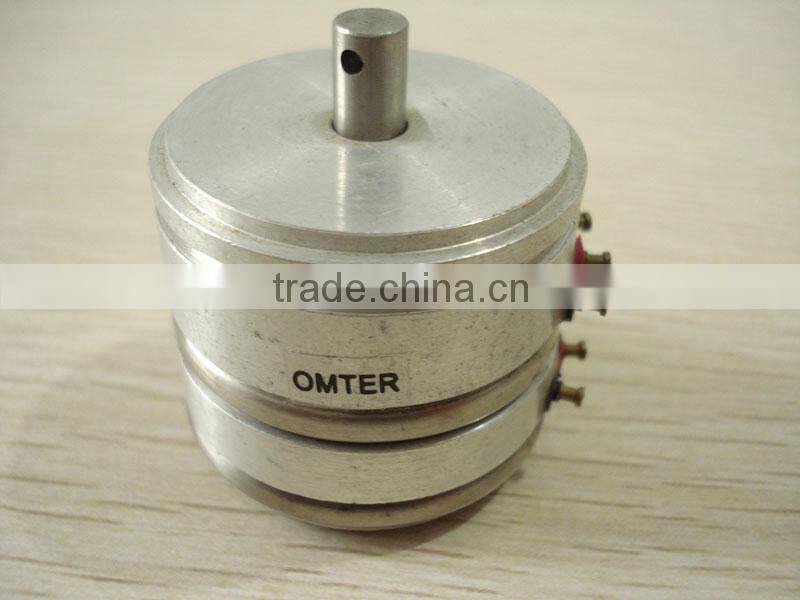

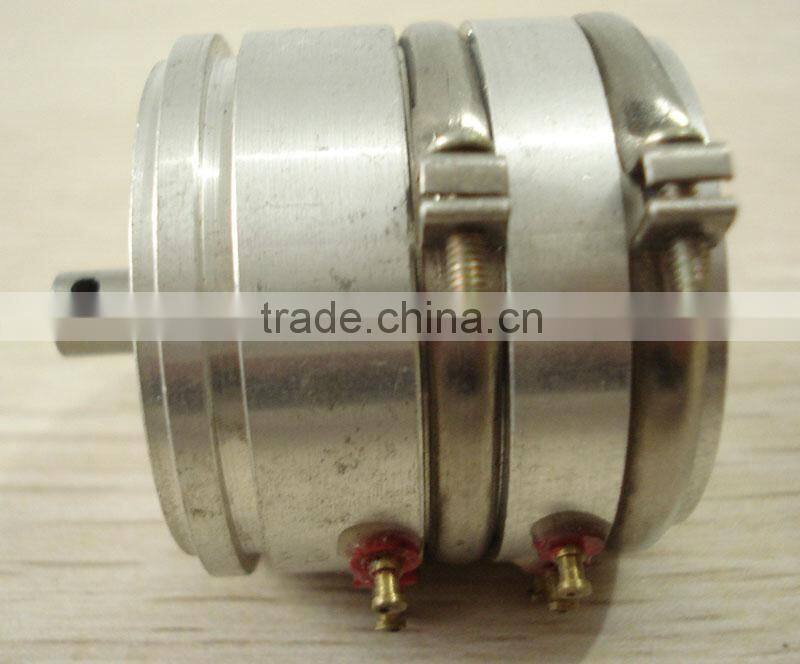

2WDD35D-4 1k Linear Dual Potentiometer

Name: 2WDD35D-4 1k Linear Dual Potentiometer
Brand: OMTER
SKU: 123742973
Availability: InStock

US$ 80 - 200 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OMTER

Model Number:

2WDD35D-4

Yueqing Omter Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OMTER

Model Number 2WDD35D-4

Type Rotary Potentiometer

Technology Carbon Film

Resistance 1K, 2K, 3K, 5K (Ω)

Resistance Tolerance ±15%

Rated Power 2W ( @70℃ )

Max. Operating Voltage /

Operating Temperature -55℃~ +125℃

Specifications

1.High quality and reasonable price
2.model no : 2WDD35D-4
3.dual potentiometer
4.industrial POT.

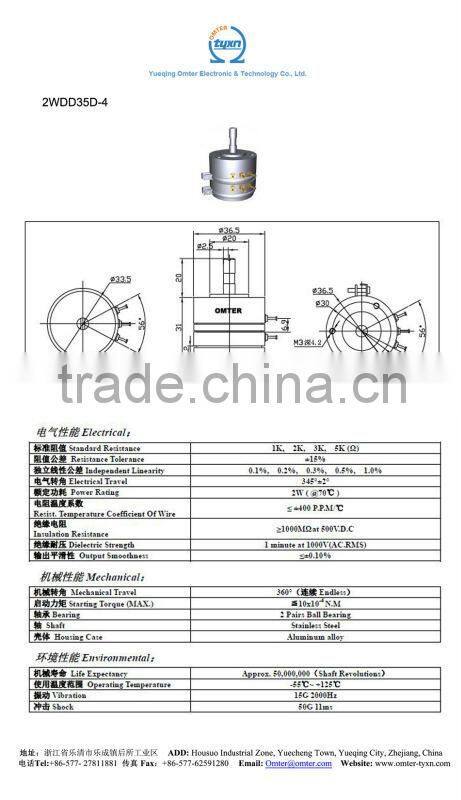

General Specification

MAIN SPECIFICATION
Total Resistance	1K, 2K, 3K, 5K (Ω)
Resistance tolerance	±15%
Independent Linearity	0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Output Smoothness	≤±0.10%
Dielectric Strength	1 minute at 1000V(AC.RMS)
Power Rate	2W ( @70°C )
Electrical Travel	345°±2°
Resist. Temperature Coefficient Of Wire	≤ ±400 P.P.M/°C
Insulation Resistance	≥1000MΩat 500V.D.C
MECHANICAL
Mechanical Travel	360°(Endless)
Starting Torque (MAX.)	10x10-4N.M
Bearing	2 Pairs Ball Bearing
Shaft	Stainless Steel
Housing Case	Aluminum alloy
Durable performance
sliding life	Approx. 50,000,000(Shaft Revolutions)
Operating Temperature	-55°C~ +125°C
Vibration	15G 2000Hz
Shock	50G 11ms
