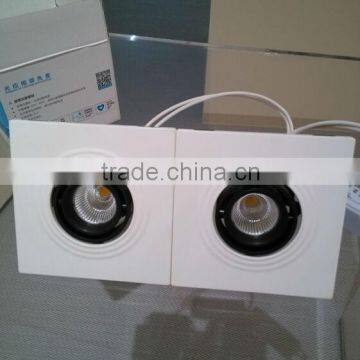

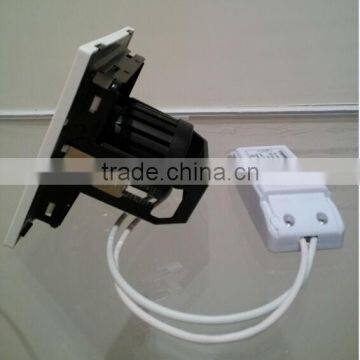

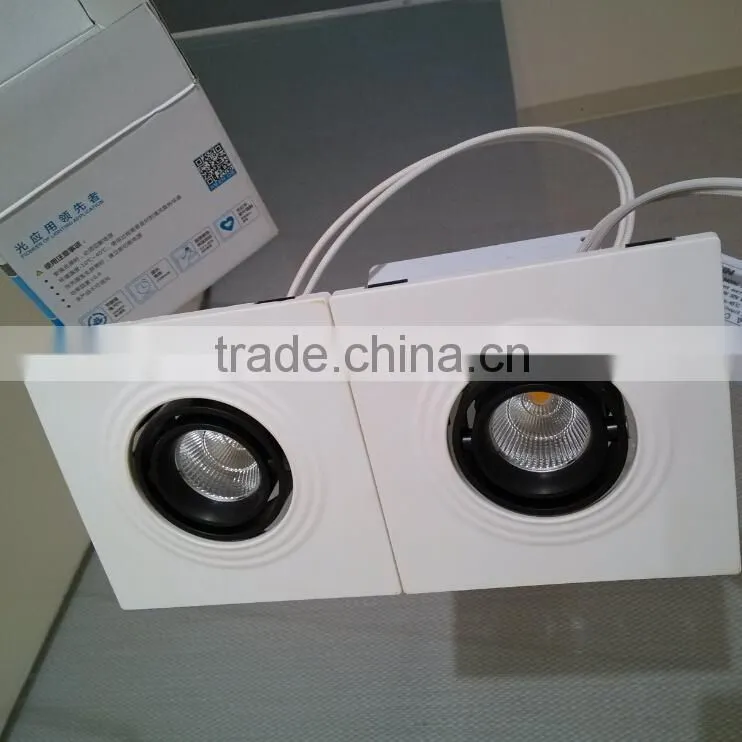

TIWIN 2014 New Product Xinglang 8w LED Grille Light
Specifications
TIWIN 2014 new product Xinglang 8w LED grille lighthealthy, energy-saving, highly efficient
TIWIN 2014 new product Xinglang LED 8w grille light
healthy, energy-saving, highly efficient
Features
Simple atmospheric, characteristic wave patterns, fashionable, strong affinity,
Ivory white color,easy to integrate into various interior decoration style
Applied to hotels, shopping malls, homes, exhibition halls
The use of combination module
single or multi-group Installation method is achieved, according to the lighting requirements
Each module uses standard interface G5.3 luminous source
Containing Tianying lighting Tin Yuet series MR16 GU 5.3 DC 12V 4W products
Environment-friendly, energy-saving, convenient to maintain
Can be rotated in vertical direction 15°, horizontal direction 350°
Adjust the beam angle according to the lighting requirements
3-year warranty
Modular design, multiple random combination of installation
Light intensity: cd
Average beam angle (50%):22.7°
Performance Characteristics
Name | Luminous source sorts | Working environment | Installation method | Beam angle | Horizontal angle modulation | Input voltage | Output voltage | Drive current | Color | Material |
Xinglang LED grille spotlight | MR16
| Indoor
| Embedded | 24° | 350°
| 220VAC
| 12VDC
| 385 mA
| White
| aluminium alloy, ABS, SPCC |
Specifications
Product model | Size A*B*C | Size of holes | Color temperature | Power | Module number | Luminous flux | CRI | Power efficiency | Dimmable or not | Weight |
PNED0004A3U | 127*127*97mm | 110*110mm | 3000K | 4W | 1 | 200Im | >80 | >=0.9 | No | 1KG |
PPNED0008A3U
| 254*127*97mm | 110*235mm | 3000K | 8W | 2 | 400Im | >80 | >=0.9 | No | 2KG |
PNED0012A3U
| 381*127*97mm | 110*360mm | 3000K | 12W | 3 | 600Im | >80 | >=0.9 | No | 3KG |
