TIWIN 9W 12W 15W Commercial COB LED track light with white black body finish
CCT:2700K/3000K/4000K
Watt:9W/12W/15W
Lumen: 750LM/900LM/1100LM
Color:white/black
| Features: | |||
|
Slim and exquisite, elegant and fashionable Imported chips, secure and reliable, high color rendering index, actual presentation High efficient lighting, energy-saving and environment-friendly, preventing eyes from dazzling | |||
| Part No. | Description | ||
| 146×90×125mm, 9 Watt, 100-240VAC,750lm, Ra≥80, IP20, ≥30000H | |||
| SLCE-9W-WW1-W | SLCE0901A1U-S527WH8N102 |
9W,2700K,750lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-9W-WW-W | SLCE0901A1U-S530WH8N102 |
9W,3000K,750lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-9W-NW-W | SLCE0901A1U-S540WH8N102 |
9W,4000K,750lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-9W-WW1-B | SLCE0901A1U-S527MB8N102 |
9W,2700K,750lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-9W-WW-B | SLCE0901A1U-S530MB8N102 |
9W,3000K,750lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-9W-NW-B | SLCE0901A1U-S540MB8N102 |
9W,4000K,750lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| 146×90×125mm, 12 Watt, 100-240VAC,900lm, Ra≥80,IP20, ≥30000H | |||
| SLCE-12W-WW1-W | SLCE1201A1U-S527WH8N102 |
12W,2700K,900lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-12W-WW-W | SLCE1201A1U-S530WH8N102 |
12W,3000K,900lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-12W-NW-W | SLCE1201A1U-S540WH8N102 |
12W,4000K,900lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-12W-WW1-B | SLCE1201A1U-S527MB8N102 |
12W,2700K,900lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-12W-WW-B | SLCE1201A1U-S530MB8N102 |
12W,3000K,900lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-12W-NW-B | SLCE1201A1U-S540MB8N102 |
12W,4000K,900lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| 146×90×125mm, 15 Watt, 100-240VAC,1100lm, Ra≥80,IP20, ≥30000H | |||
| SLCE-15W-WW1-W | SLCE1501A1U-S527WH8N102 |
15W,2700K,1100lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-15W-WW-W | SLCE1501A1U-S530WH8N102 |
15W,3000K,1100lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-15W-NW-W | SLCE1501A1U-S540WH8N102 |
15W,4000K,1100lm,25°,100-240VAC,white body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-15W-WW1-B | SLCE1501A1U-S527MB8N102 |
15W,2700K,1100lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-15W-WW-B | SLCE1501A1U-S530MB8N102 |
15W,3000K,1100lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
| SLCE-15W-NW-B | SLCE1501A1U-S540MB8N102 |
15W,4000K,1100lm,25°,100-240VAC,black body, External Driver,Uncontrollable, 2 years warranty |
|
SPECIFICATION:
TIWIN 9W/12W/15W Commercial COB LED track light with white/black body
|
JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD. | ||||||
| Document ID | Product Specification | Version | 1.01 | ||||
| Compile Date | Page | 2014/1/1 | |||||
| Photo | |
Item | |||||
| Name | LED SLCE cob Track spotlight | ||||||
| Product specification | 100-240VAC, 50-60Hz 9W/12W/15W | ||||||

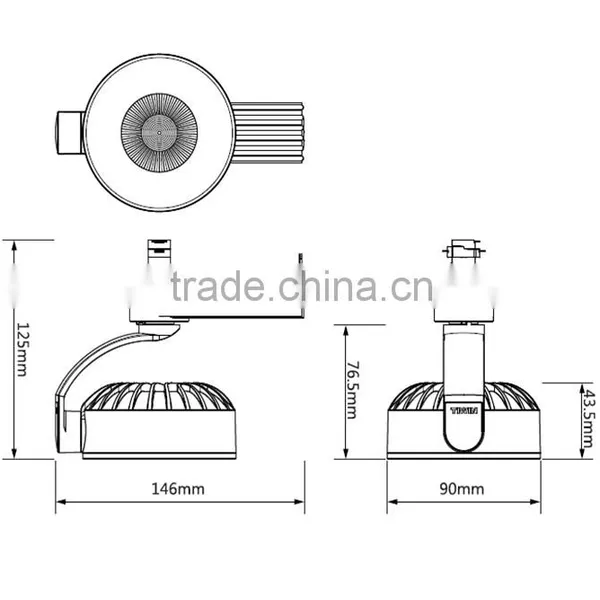

| Size | 146×90×125mm | ||||||
| Installation method | Three lines cables | ||||||
| dimensions | |
ambient temperature | -20-45℃, 10%~65% RH | ||||
| Angle adjustment | No | ||||||
| Control method | No | ||||||
| IP grade | IP20 | ||||||
| Rated lifespan | ≥30000H | ||||||
| standard | GB7000.1-2007 | ||||||
| material | Aluminium alloy+pc | ||||||
| Radiator component | |||||||
| Lamp weight | 360g | ||||||
| Installations component | |||||||
| color | white/black | ||||||
| CPD |
|
Beam angle | 25° | ||||
| Luminous flux | 750/900/1100lm | ||||||
| CCT | 2700K/3000K/4000K | ||||||
| CRI | Ra≥80 | ||||||
| Brand | CITIZEN | ||||||
| Led QTY | 1 pcs | ||||||
| led type | CLL022-1203A5,CLL022-1204A5 | ||||||
| Output | 37VDC,220mA/287mA/360mA | ||||||
| Inner box size | 155×65×175mm | ||||||
| Carton size | 640×345×190mm | ||||||
| weight(Kg) | C.W=8.5KG | ||||||
| packing | 20pcs per carton | ||||||
Picture:
Our Beautiful Factory
Our Morden Office
Advanced Production Line
Strict Test Procedures
Huge Samples Room to Feel our High Quality Light
Attend Fairs to Show our Brand Power
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal are the most usual ways we are using.
3) What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 10-25days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
