Specifications
JLC-80KW Used Induction Heating Equipment1.IGBT technology.
2.Perfect protection function.
3.Converting frequency.

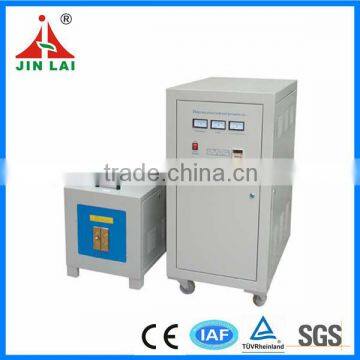

JLC-80KW Used Induction Heating Equipment
1) Feature:
1. IGBT inversion technology reduce operating cost
2. High efficiency up to 90%
3. LC series circuit and voltage feedback design achieve energy saving up to 30% compared with SCR technology induction machine
5. Diode rectification technology make sure high power factor –never less 0.95
6. Soft switch technology and prefect protection system enhance good reliability
7. Suitable for heating medium size of part.
2) Specifications:
Name | Induction Hardening Machine |
Model | JLC-80KW |
Power input | 3 phase 380V 50/60HZ |
Max. Input Current | 135A |
Max. Power Output | 80kw |
Oscillating Frequency | 10-30KHZ |
Duty Cycle | 100% |
Cooling Water | 0.4Mpa, 32L/min |
Alarm Temperature | <40°C |
Dimension | Generator:740x560x1000mm |
Transformer:530x400x480mm | |
Net weight | Generator : 90kg |
transformer : 70kg | |
Timing | 1M~99.99H,1S~99.99M,0.01S~99.99S |
3) Spare parts for JLC-80KW Machine
Item | Name of machine or parts | Specification | Amount |
1 | JLC-80KW Generator | - | 1 pc |
2 | JLC-80KW Transformer | - | 1 pc |
2 | Foot switch | 3 core | 1 pc |
3 | Induction Coils | - | 3 sets |
4 | Coil connect pole | - | 3 set |
5 | Instruction Manual | - | 1 |
6 | Packing list and receipt | - | 1 |
7 | Guarantee card | - | 1 |
8 | Products certificate | - | 1 |
4) Application:
1. Pre-heating for forging and forming
2. Brazing
3. Heat treatment such as surface hardening
4. Melting for aluminum, copper etc
5. Pipe Pre-heating and soak before after weld
6. Pipe heating for elbow machine
