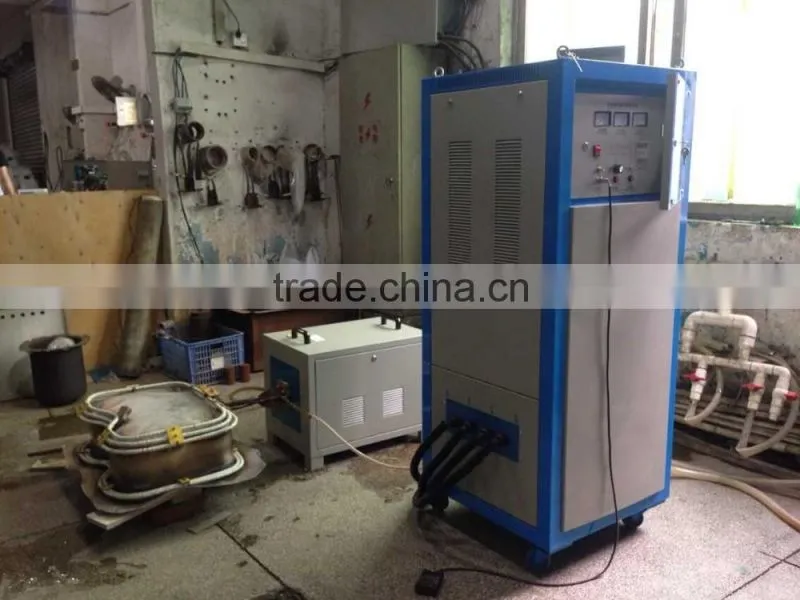

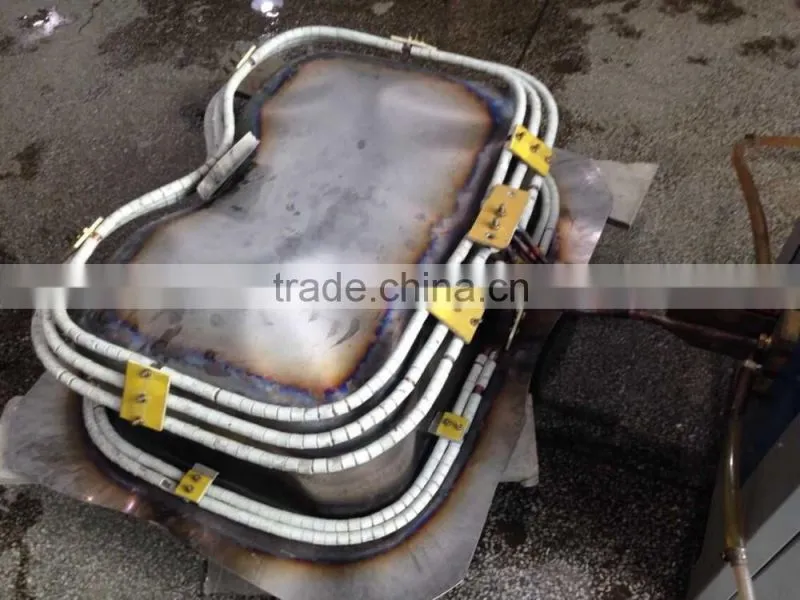

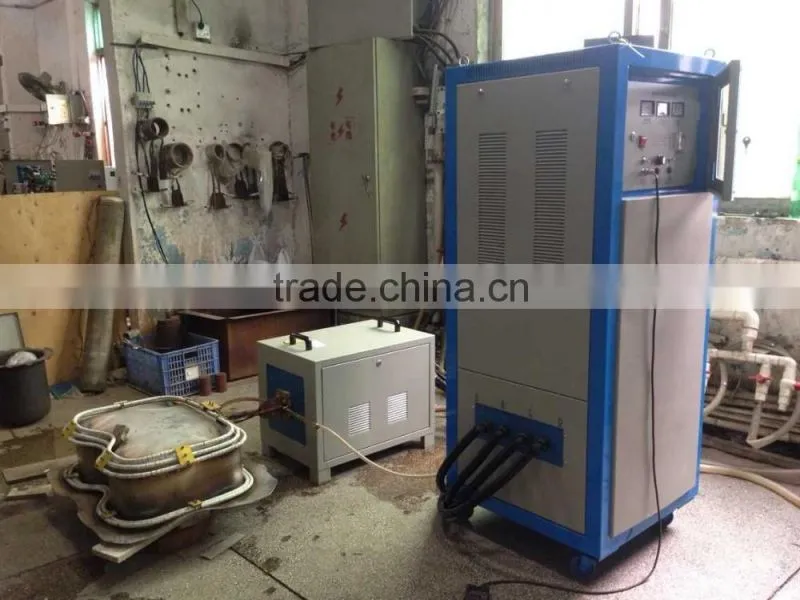

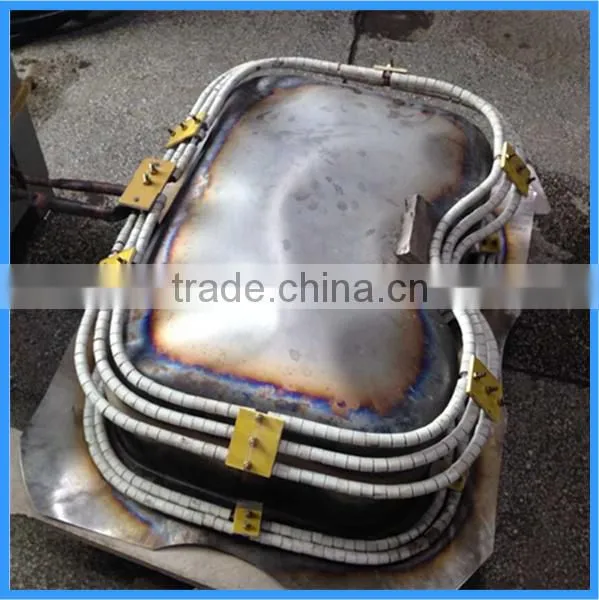

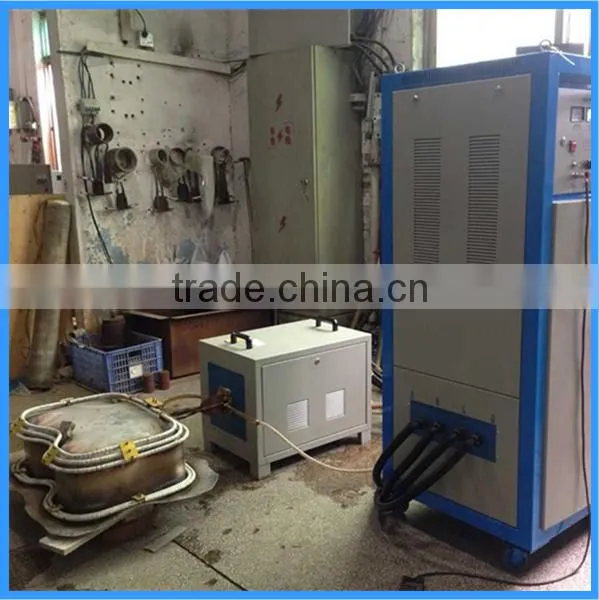

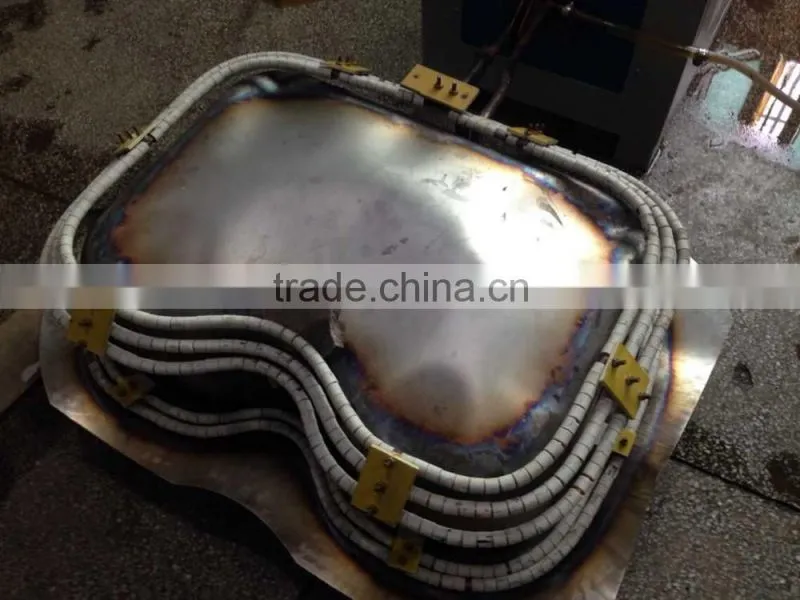

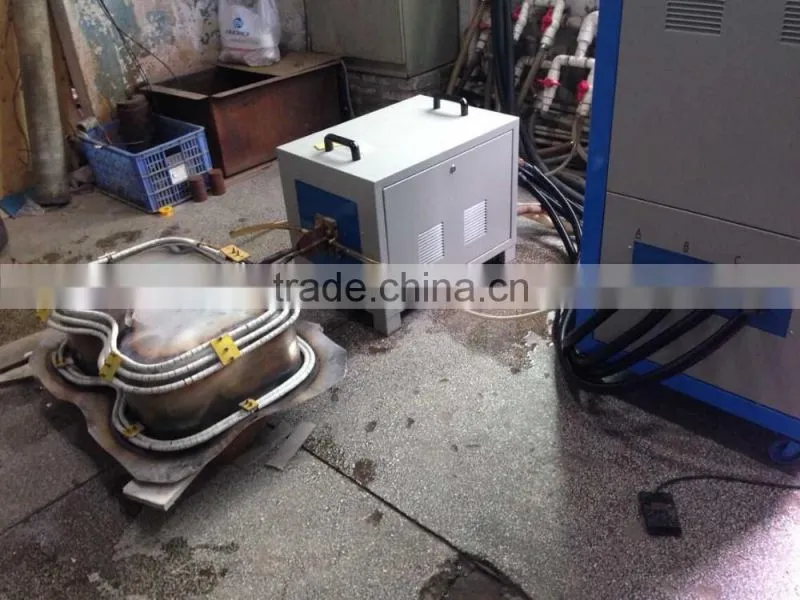

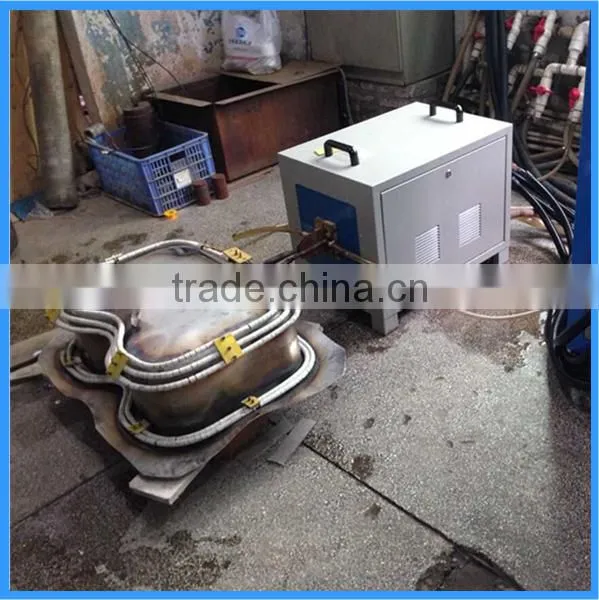

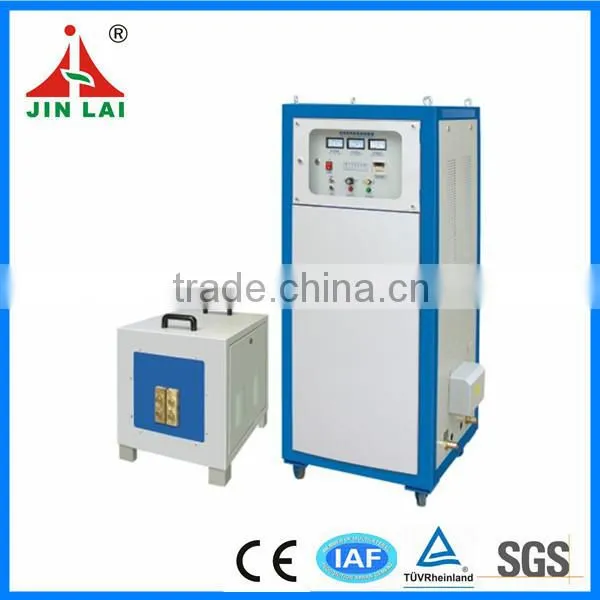

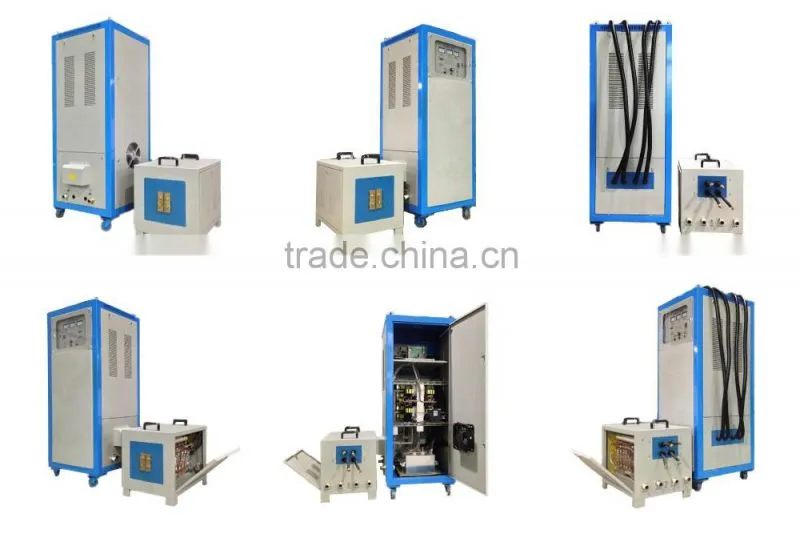

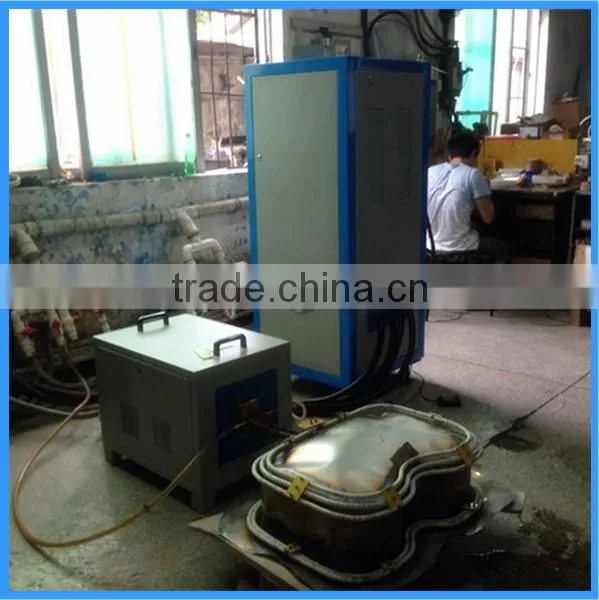

Water Tank Annealing Machine Electric Heating Machine (JLC-120KW)
1. IGBT inversion technology reduce operating cost
2. The absolute load merit rate design, can work continuously for 24 hours.
3. The digital phase locked realizes following frequency automatically
4. Design in modules It s installed facility and use conveniently
5. The perfect protection function ,insuring the reliability and easily maintaining of the equipments
6. The technique of converting frequency by resonance promotes efficiency of whole equipment by over 95% efficiently
7. Economically ,and environmental protection ,it can replace of the gas/ coal /electronic tube induction heating machine

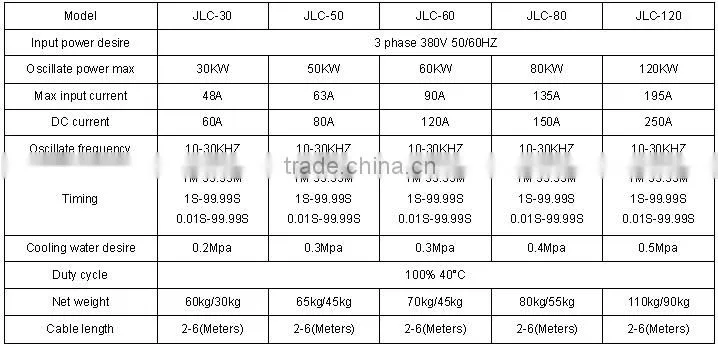

Model |
JLC-120KW |
|
Input power desire |
3 phase 380V 50/60HZ |
|
Oscillate power max |
120KW |
|
Max input current |
195A |
|
DC current |
250A |
|
Oscillate frequency |
10-30KHZ |
|
Timing |
1M-99.99M 1S-99.99S 0.01S-99.99S |
|
Cooling water desire |
0.5Mpa |
|
Duty cycle |
100% 40°C |
|
Dimensions(L*W*H) |
Generator |
830*620*1510mm |
transformer |
730*440*560mm |
|
Net weight |
110kg/90kg |
|
Cable length |
2-6(Meters) |
|
- Germany SIEMENS INFINEON IGBT Module. 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
- Japan Nichicon electrolytic capacitor. ( filter capacitor )
- Imported transistor integrated block.
- All water pipe use thermostability, High pressure resistance best quality material.
- Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
- International advanced all-solid-state semiconductor power devices.
- Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
- Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

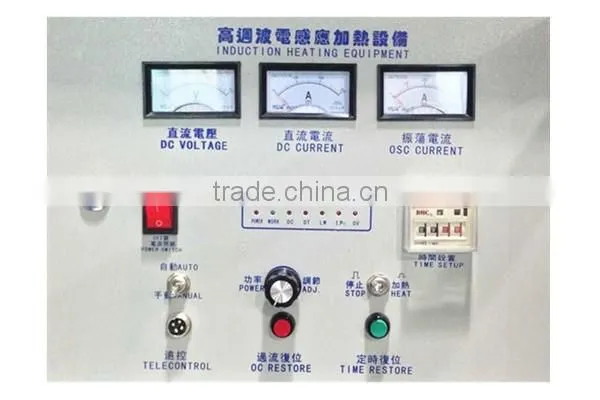

Front Panel
