Help CenterJLC-160 Used Induction Heating Equipment
Related Products
-
JLC-300 Induction Heating UnitUS$ 1,000 - 10,000MOQ: 1 Set -
Induction Heating Machine For Metal ForgingUS$ 1,000 - 100,000MOQ: 1 Set
-
JLC-80KW Used Induction Heating EquipmentUS$ 1,000 - 100,000MOQ: 1 Set
-
Induction Bolt HeatingUS$ 1,000 - 100,000MOQ: 1 Set
-
Water Tank Annealing Machine Electric Heating Machine (JLC-120KW)US$ 1,000 - 100,000MOQ: 1 Set
Specifications
JLC-160 Used Induction Heating Equipment1.IGBT technology.
2.Perfect protection function.
3.Converting frequency technique

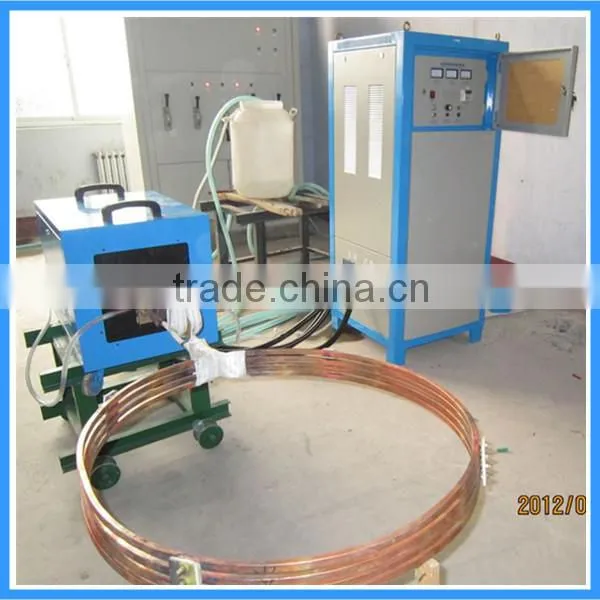

JLC-160 Used Induction Heating Equipment
1) Feature:
1. IGBT inversion technology reduce operating cost
2. High efficiency up to 90%
3. LC series circuit and voltage feedback design achieve energy saving up to 30% compared with SCR technology induction machine
5. Diode rectification technology make sure high power factor –never less 0.95
6. Soft switch technology and prefect protection system enhance good reliability
7. Suitable for heating medium size of part.
2) Specifications:
Name |
Induction Hardening Machine |
Model |
JLC-160KW |
Power input |
3 phase 415V 50/60HZ |
Operating Voltage Range |
363V~456V |
Max. Input Current |
245A |
Max. Power Output |
160kw |
Oscillating Frequency |
10-30KHZ |
Efficiency |
90% |
Duty Cycle |
100% |
Cooling Water |
0.5Mpa, 32L/min |
Alarm Temperature |
<40°C |
Dimension |
Generator:900x670x1650mm |
Transformer:800x440x580mm | |
Net weight |
Generator : 175kg |
transformer : 105kg | |
Timing |
1M~99.99H,1S~99.99M,0.01S~99.99S |
3) Spare parts for JLC-160KW Machine
Item |
Name of machine or parts |
Specification |
Amount |
1 |
JLC-160KW Generator |
- |
1 pc |
2 |
JLC-160KW Transformer |
- |
1 pc |
2 |
Foot switch |
3 core |
1 pc |
3 |
Induction Coils |
- |
2 sets |
4 |
Coil connect pole |
- |
2 set |
5 |
Instruction Manual |
- |
1 |
6 |
Packing list and receipt |
- |
1 |
7 |
Guarantee card |
- |
1 |
8 |
Products certificate |
- |
1 |
4) Coil design as your drawing
We will make dia: 352-354mm,height 50mm,single circle coil.
Better you make revolving device for gear. The heating time is about 1-2 seconds a piece.
5) Application:
1. Pre-heating for forging and forming
2. Brazing
3. Heat treatment such as surface hardening
4. Melting for aluminum, copper etc
5. Pipe Pre-heating and soak before after weld
6. Pipe heating for elbow machine
