1.25MM Pitch Wire to Board Connectors DIP SMD
- 100000 Piece / Pieces per Month
- Hongkong
- T/T L/C D/P D/A
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SWB | Model Number: | 9821Housing Terminal Wafer |
Type: | Other |
Product Description

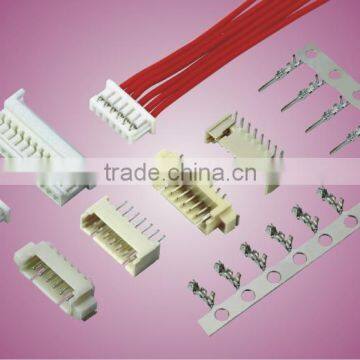

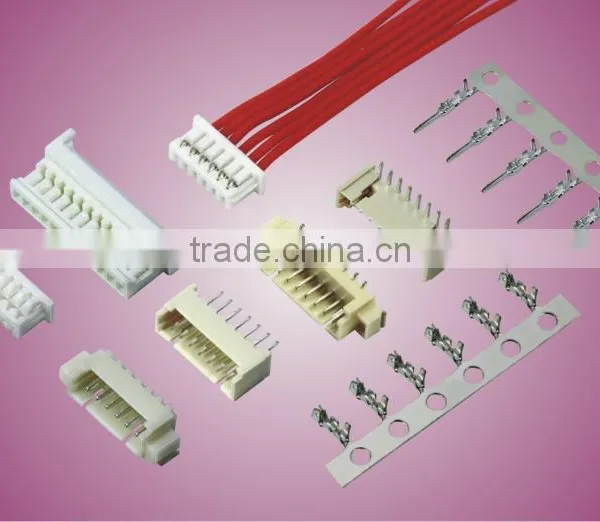

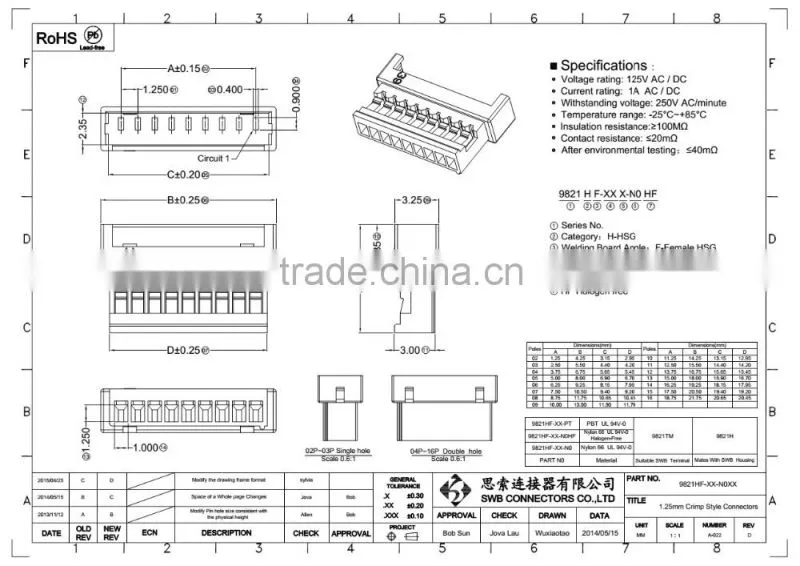

1.25 mm Pitch Wire to Board Connectors UL proof
SPECIFICATIONS:
Voltage Rated: 125V AC/DC
Current Rated: 1A AC/DC Max
Withstand voltage: 500V AC/minute
Insulation resistance: 100MΩ min
Contact resistance: 20 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#28-32
Item | Part No | Material | Poles | Package |

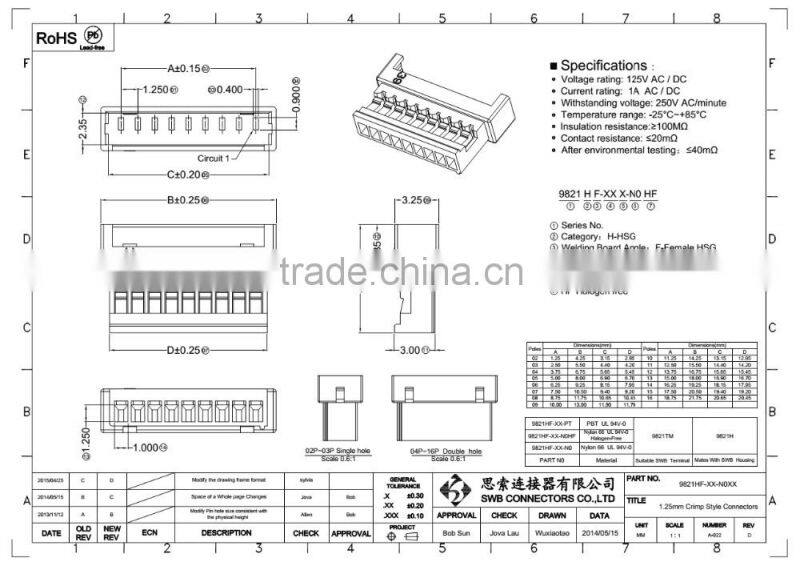

Housing | 9821H/HF | PA66 UL94V-0 | 02 - 16 | 1000 Pcs/Bag |

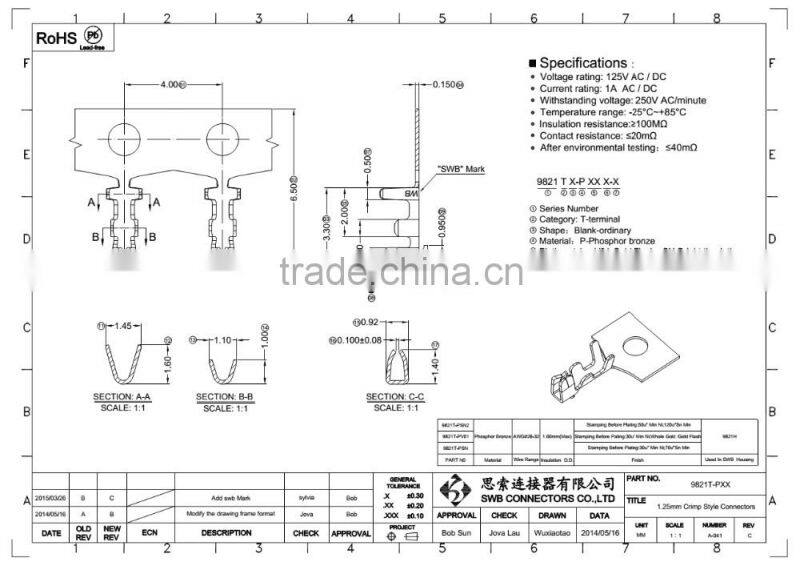

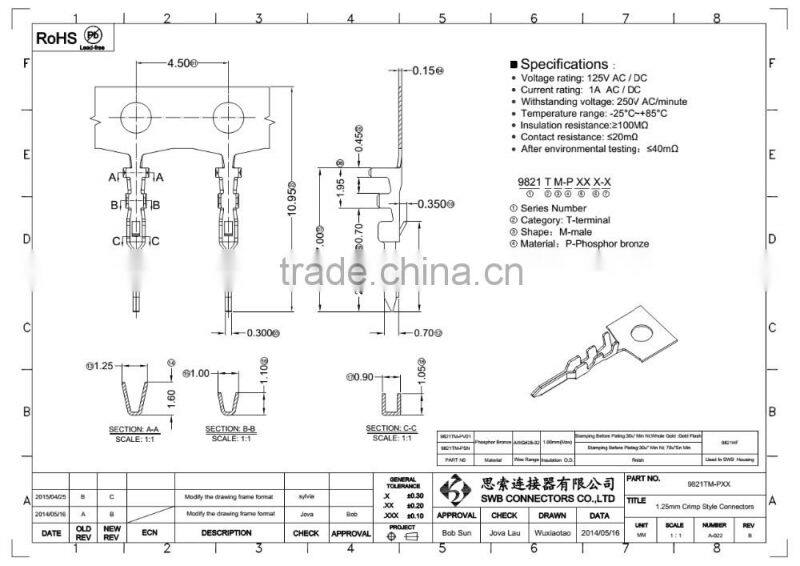

Terminal | 9821T/TM | Phoshor Bronze | 15000Pcs/Reel | |

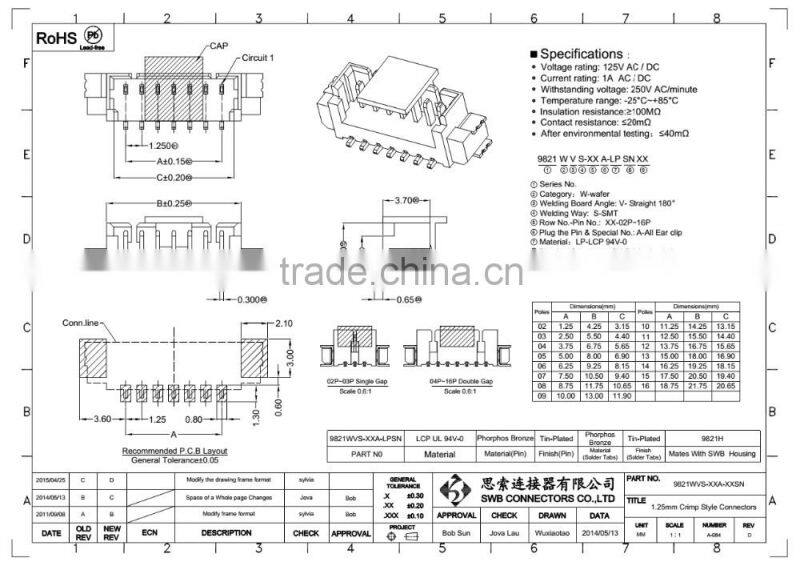

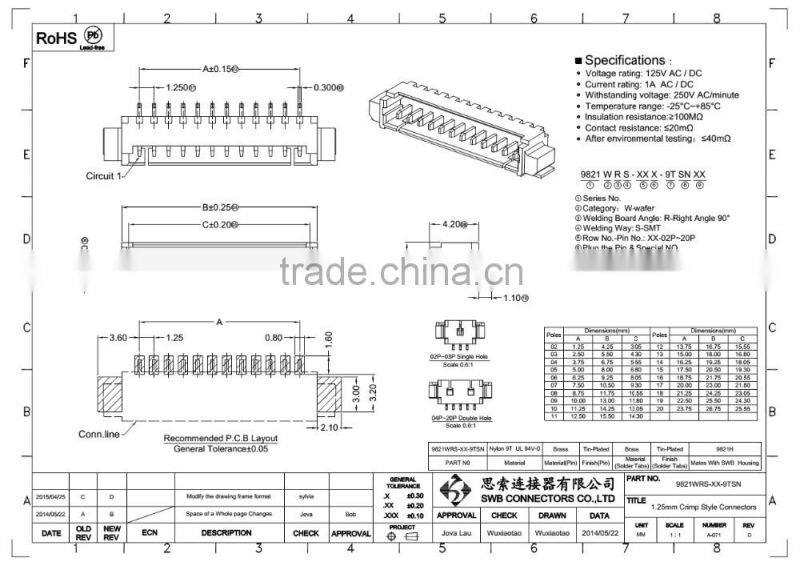

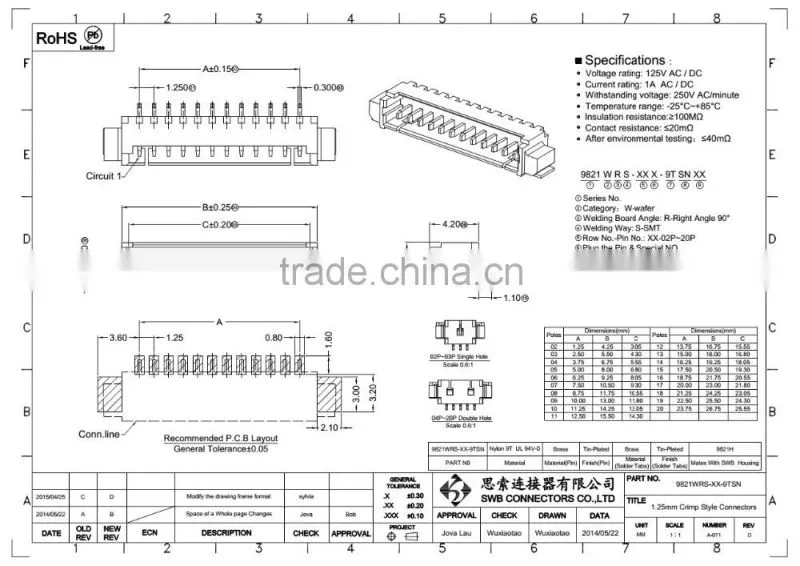

Wafer | 9821W | PA66 UL94V-0 | 02- 16 | 1000 Pcs/Reel |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
Q:How to place a fast connector order?
A:The following tips will save your time.
- The name of the product
- Pictures and/or the data sheet for the product
- The number of rows
- The number of pins per row
- The pitch of the connector
- The height of the insulator
- The color of the insulator
- The type of material
- Any Additional Demands
Ask your engineer for details
Are you a purchaser that doesn’t work directly with the product? To place a fast connector order, you can consult the project engineer to gather these information before contacting us.
