Home > Products > Wire to Board Connector > 7.92 MM Pitch Wire to Board Electrical Connectors
7.92 MM Pitch Wire to Board Electrical Connectors
- Hongkong
- T/T L/C D/P D/A Money Gram
You May Like
-
6.35 MM Pitch Wire to Board Electrical Connectors With Buckle
-
5.08MM Pitch Wire to Board Electric Connectors UL94V-2
-
4.2MM Pitch Wire to Board Electric Connectors With Buckle
-
4.2MM Pitch Wire to Board Electric Connectors Molex Replacement
-
4.2MM Pitch Wire to Wire Electric Connectors Molex Replacement
-
4.14MM Pitch Wire to Wire Electric Connectors Made in China
Product Details
| Place of Origin | Guangdong, China | Brand Name | SWB | |
| Model Number | 9396W | Type | Other |
Product Description

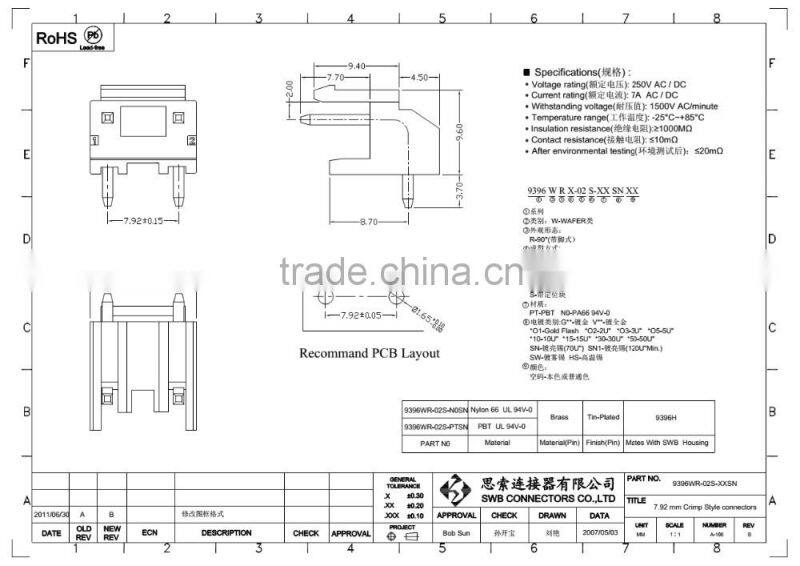

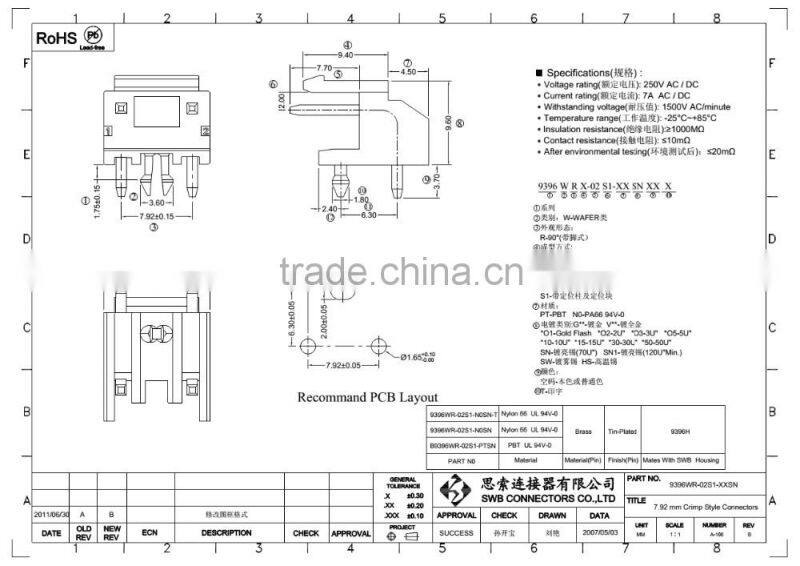

7.92 MM Pitch wire to board electrical connectors
SPECIFICATIONS:
Voltage Rated: 250V AC/DC
Current Rated: 7A AC/DC Max
Withstand voltage: 1500V AC/minute
Insulation resistance: 1000MΩ min
Contact resistance: 10 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#18-22
Item | Part No | Material | Poles | Package |
Wafer | 9396WR-02S1-n0SN | Nylon66 UL94V-0 | 02 | 1000 Pcs/Bag |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
4 Long term after sell service to ensure customer is satisfied.
