Product Details
| Place of Origin | Guangdong, China | Brand Name | SWB | |
| Model Number | connector | Type | SMA | |
| Application | Automotive | Gender | Female |
Product Description
SPECIFICATIONS:
Voltage Rated: 250V AC/DC
Current Rated: 3A AC/DC Max
Withstand voltage: 800V AC/minute
Insulation resistance: 1000MΩ min
Contact resistance: 20 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#22-26

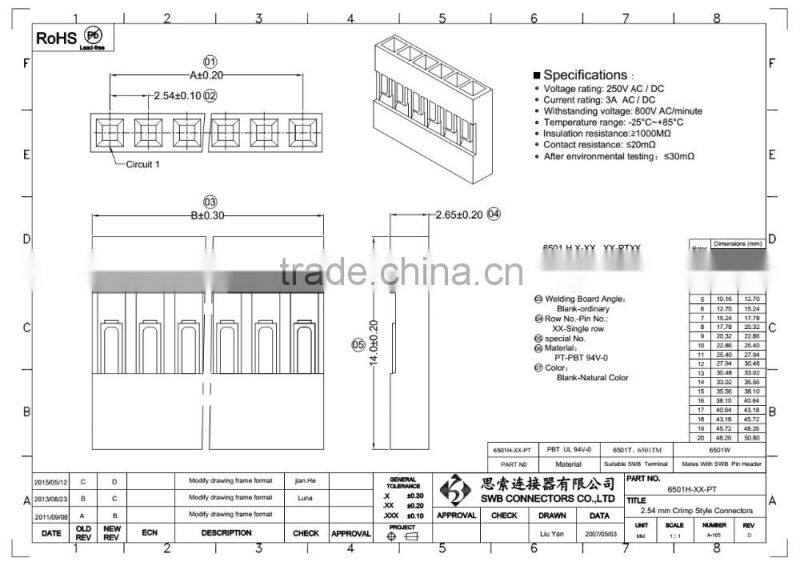

Item | Part No | Material | Poles | Package |
Housing | 6501H | PBT UL94V-0 | 01-60 | 1000 Pcs/Bag |

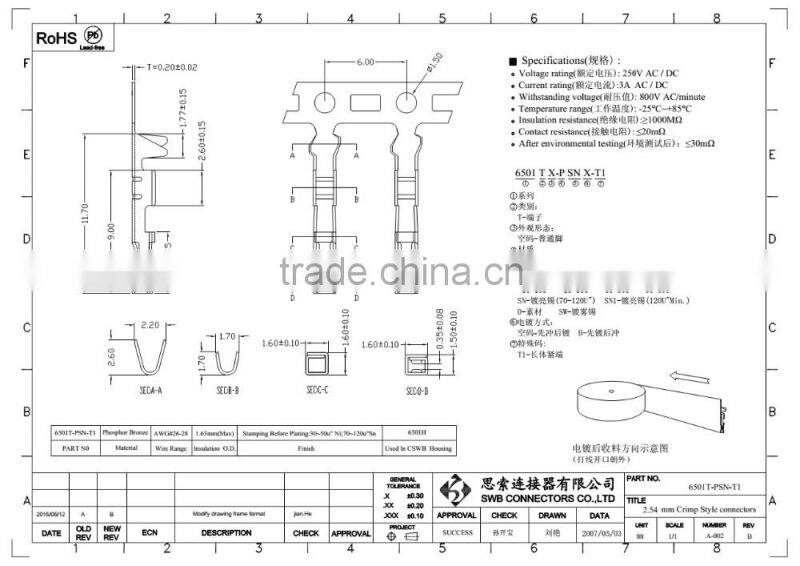

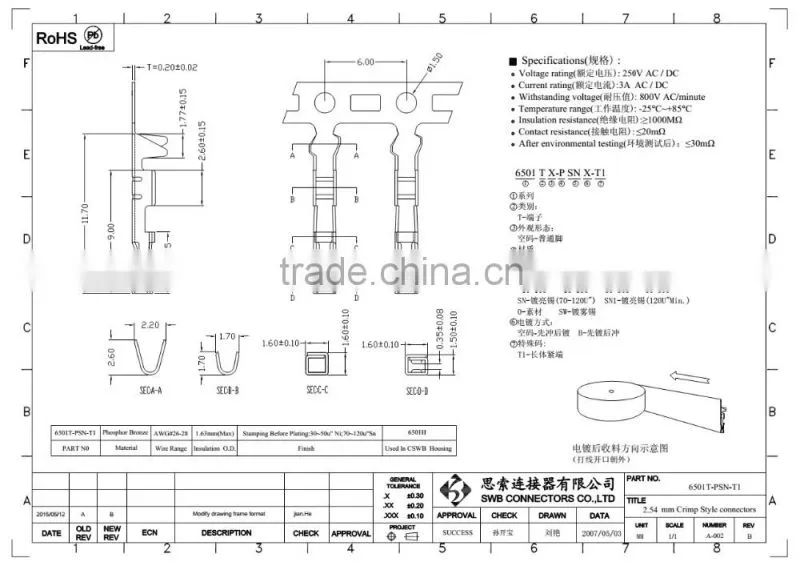

Terminal | 6501T | Phosphor Bronze |
| 10000Pcs/Reel |

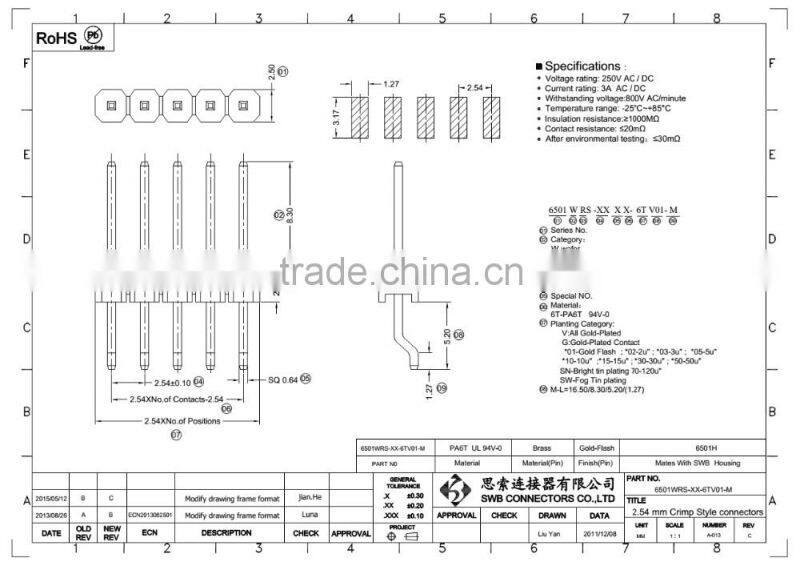

Wafer | 6501W | PA9T UL94V-0 | 01-60 | 1000Pcs/Bag |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
4 Long term after sell service to ensure customer is satisfied.
