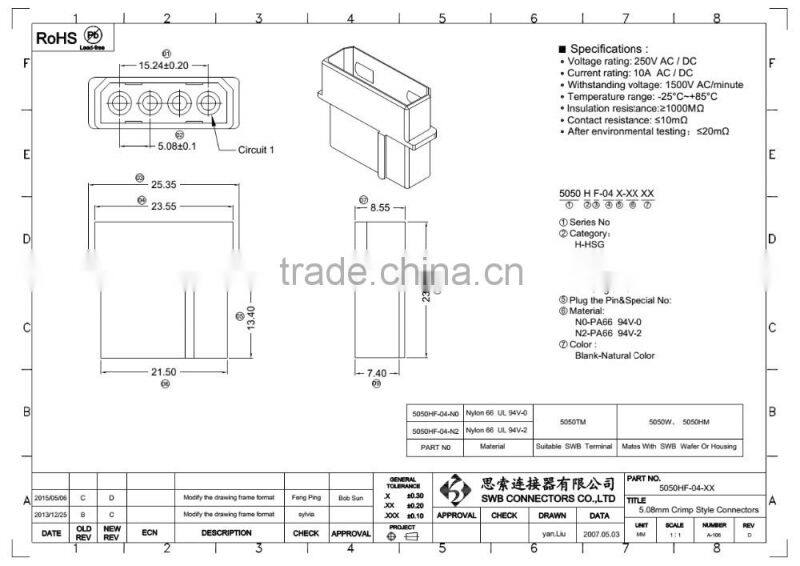

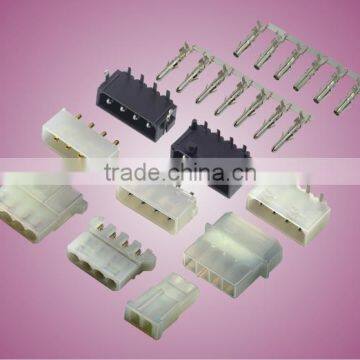

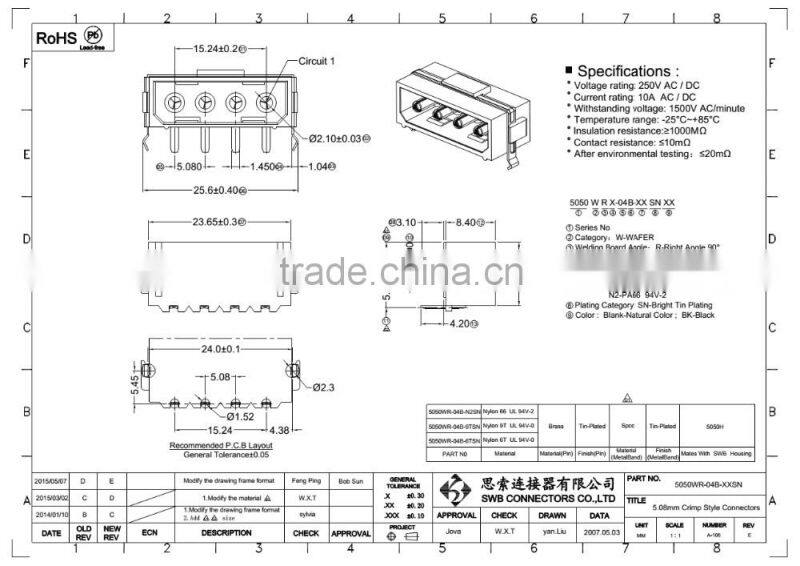

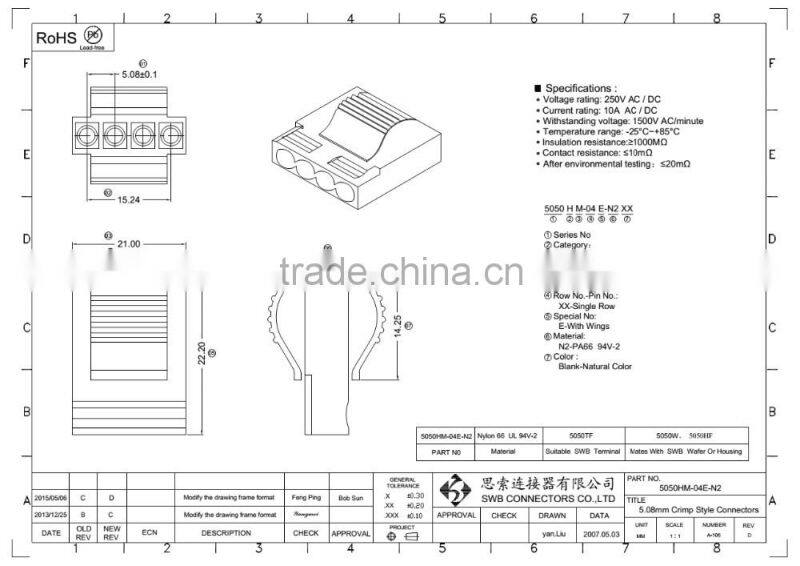

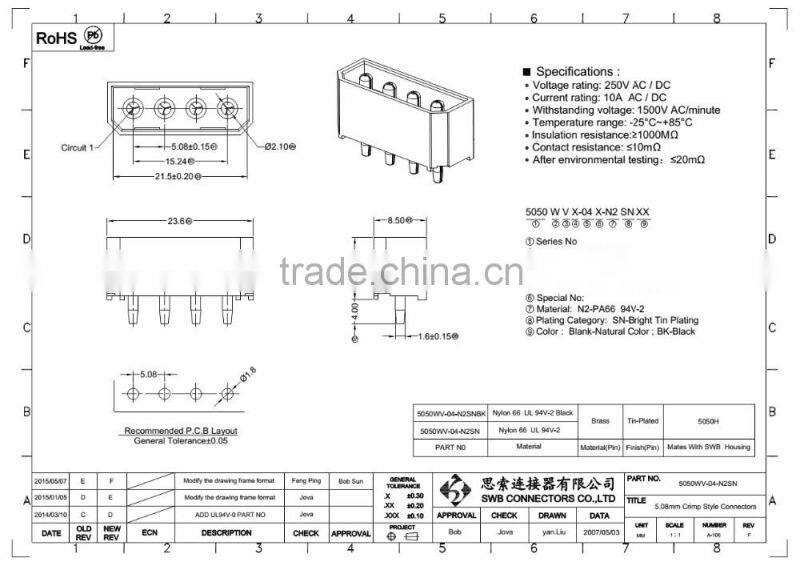

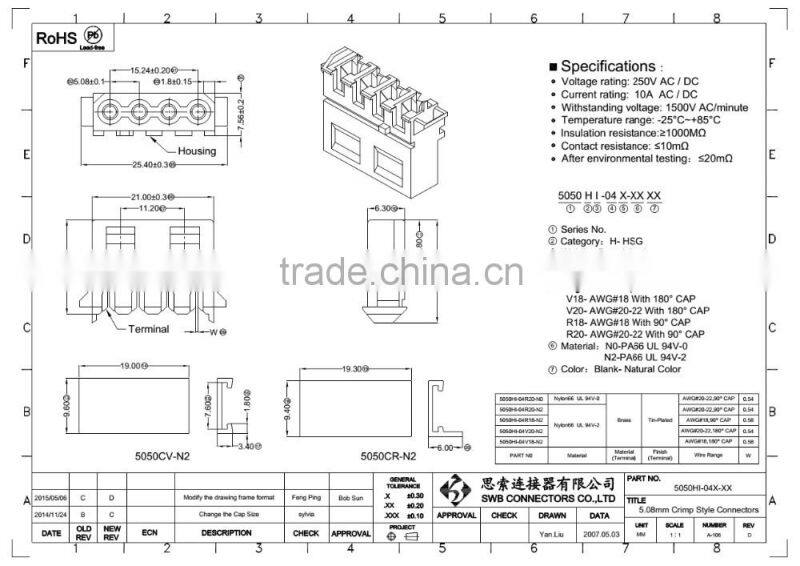

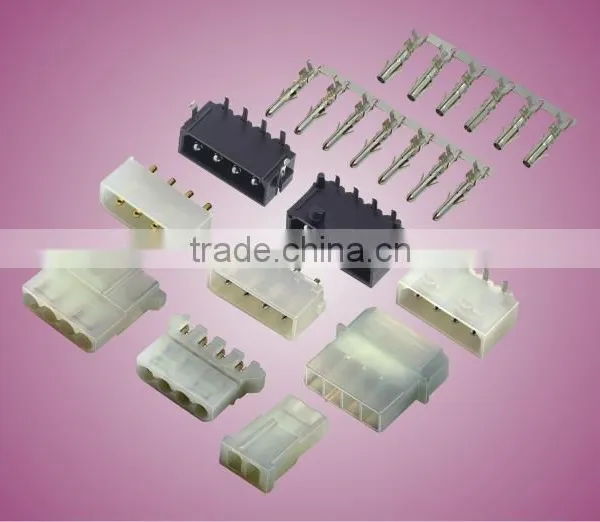

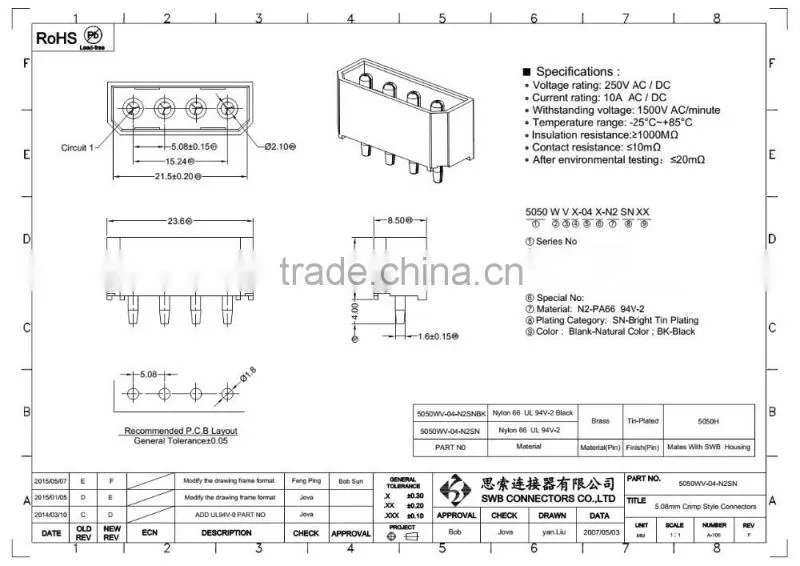

5.08MM Pitch wire to board electric connectors UL94V-2
SPECIFICATIONS:
Voltage Rated: 250V AC/DC
Current Rated: 10A AC/DC Max
Withstand voltage: 1500V AC/minute
Insulation resistance: 1000MΩ min
Contact resistance: 10 MΩ max
Operation temperature: -25℃~+85°C
Wire Range:AWG#16-24
Item |
Part No |
Material |
Poles |
Package |
Housing |
5050H |
Nylon66 UL94V-2 |
02 03 04 |
1000 Pcs/Bag |

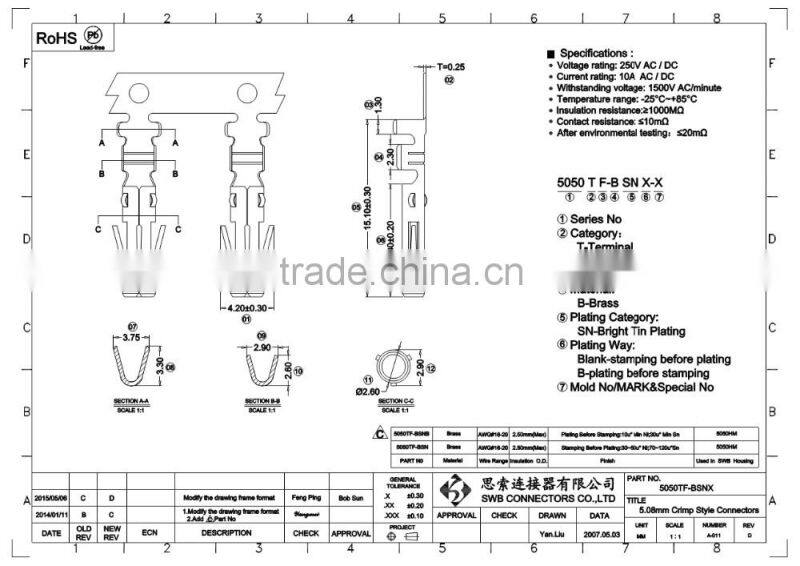

Terminal |
5050T |
Brass |
|
10000Pcs/Reel |
Wafer |
5050W |
Nylon66 UL94V-2 |
02 03 04 |
1000 Pcs/Bag |
1 Packaging: Useing strong bags/boxes/cartons for package to reduce the damage during the shipments. Tape and reel packing, Clamshell packing,Pallet packing etc are available.
2 Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc.
3 Delivery Time: normally 7-14days, could be negotiable when order is urgent.
1 fully-Inspection - Products are 100% inspected before shipment
2 In case of quality discrepancy or quantity discrepancy, we will do replenishment immediately, or other better methods after negotiation, to make sure our customers could be satisfied well.
3 Solution - Find the problems, make an effective improvement, and impose more strict quality control.
4 Long term after sell service to ensure customer is satisfied.
