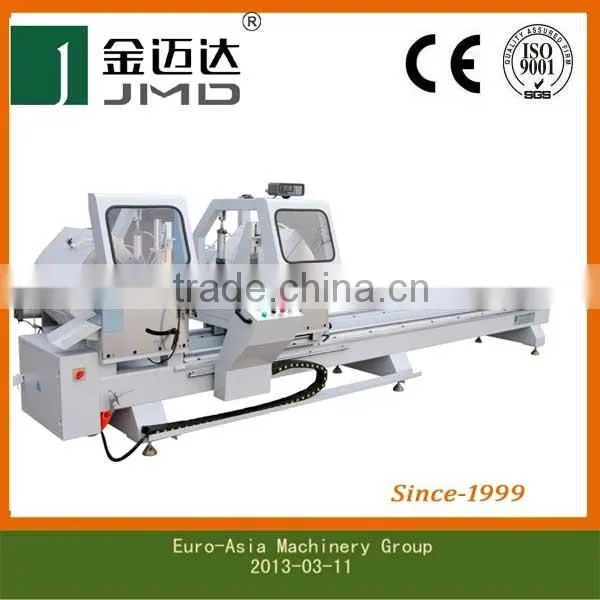

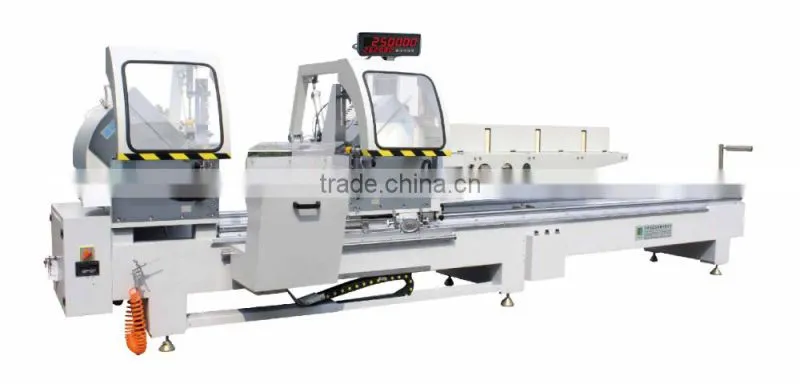

Digital Display Double Head Miter Precision Cutting Saw
Used as Aluminum Cutting Saw
Performance and Feature
1. Spindle of saw blade is made by professional maker.
2. The cutting feed motion adopts the imported linear guide rail pair.
3. The movement of head adopts the imported linear bearing motion pair.
4.The saw blade feed is powered by hydraulic damping cylinder.
5.Wide cutting range, maximum length up to 4200mm.The cutting angle is 90°/45°/67.5° .
6. The parameters such as the length of the cutting are digital displayed.
Technical Parameters
| Tcehnical Parameters of Double Head Miter Precision Cutting Saw | |||
| Modle | LJJ2AS-500*4200 | LJJ2AX-500*4200 | LJJ2A-500*4200 |
| Function | CNC | Digital Display | Standard |
Power supply |
(three-phase four-wire) 380v 50Hz |
||
Input power |
5.9KW | 4.4KW | |
Air pressure |
0.5~0.8Mpa |
||
Blade rotational speed |
3200r/min |
||
Saw blade specification |
500*4.4*3.3*30*120p |
||
Cutting length |
350-4200mm |
270-4200mm |
390~4200mm |
Cutting Width |
130mm | ||
Cutting Height |
300mm | ||
Cutting angles |
90°,45°,67.5° |
||
Overall dimension |
5560*1750*1900mm |
5530*1750*1950mm |
|
Weight |
1900KG | 1750KG | 1700KG |
Detailed Images

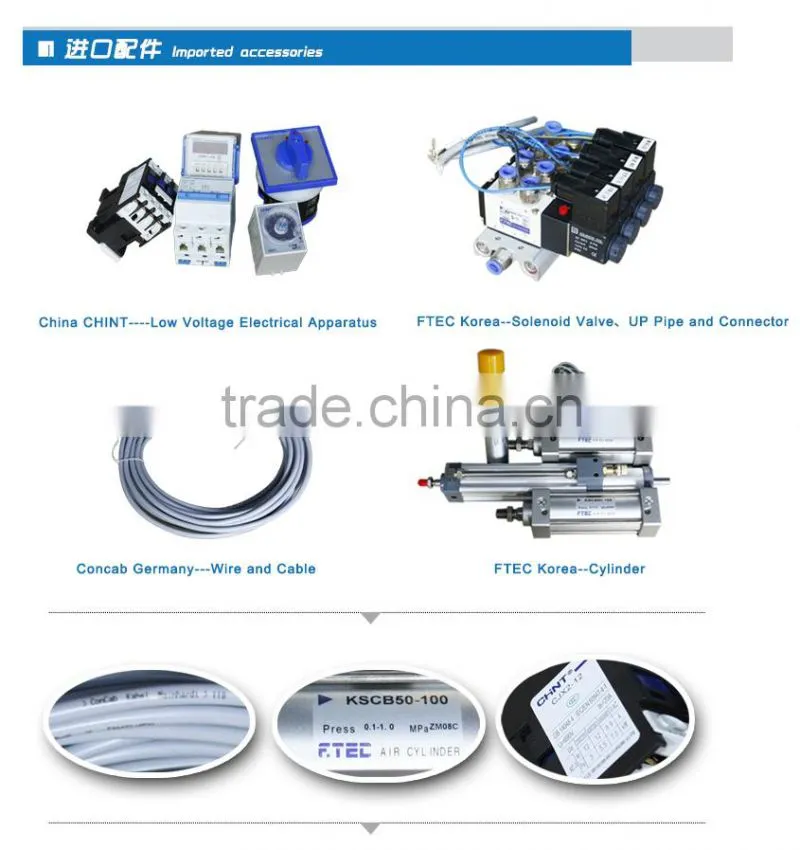

Standardized components
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Per-sale Service
1.) Professional sales engineers team provide professional technical advisory services
for you 7*24 hour.Think you think,give you want.
2.) Design the drawing of your factory workshop as you need.
3.) Provide reception and all kinds of conveniences freely.
After-sale Service
Maybe You Will Need

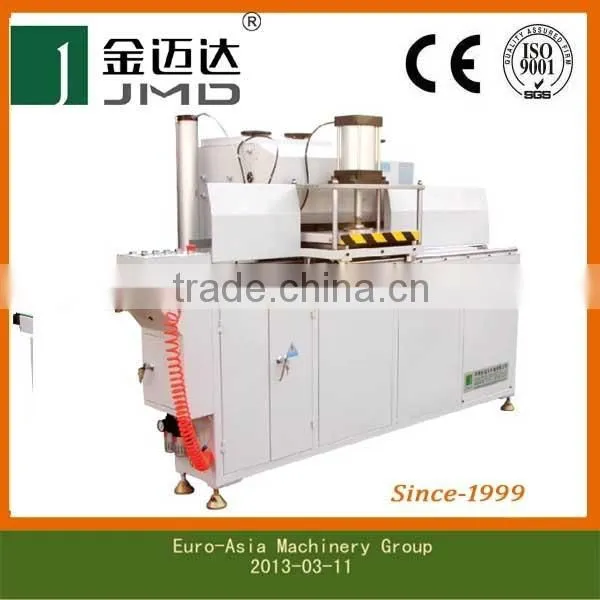

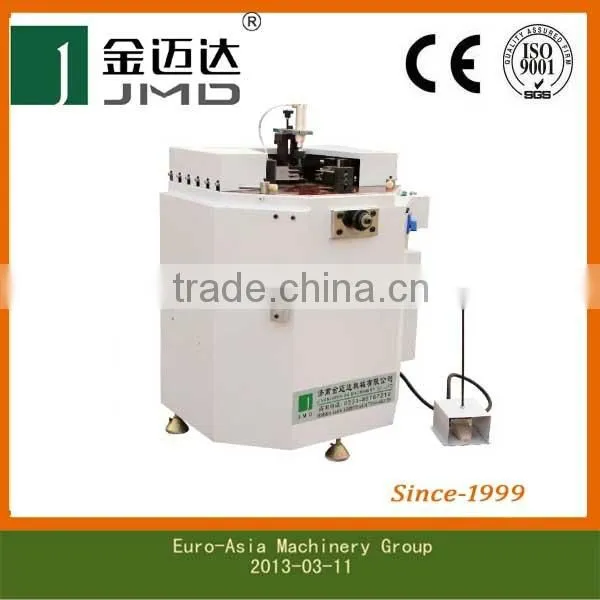

Corner connector cutting saw Corner crimping machine 5 blades end milling machine
