Help CenterCNC Double Head Mitre Saw for Aluminum Window & Door
Related Products
-
Aluminum Window End Face Milling MachineUS$ 1,300 - 1,800MOQ: 1 Set -
JMD Aluminum Window Copy Router/aluminum Window and Door MachineUS$ 2,000 - 2,900MOQ: 1 Set
-
Digital Display Double Head Miter Precision Cutting SawUS$ 12,000 - 12,000MOQ: 1 Set
-
JMD Five-blade Aluminum Face Milling MachineUS$ 6,600 - 8,600MOQ: 1 Set
-
Double Head Mitre Aluminum Profile Cutting SawUS$ 8,000 - 13,000MOQ: 1 Set
Technical Parameters:
-Power supply: (3-phase 4-wire) 380V 50Hz
-Input power: 6.0kW
-Air pressure supply: 0.5-0.8Mpa
-Blade rotate speed: 3200r/min
-Blade specification: D=500mm, d=30mm
-Cutting length: 320-4200mm
-Cutting angles: 90°.45°.22.5°
-Overall dimensions:5500*1750*1900mm
-Weight: 1900Kg
Performance and Feature:
-Imported digital system and digital length cutting in accurate size.
-Imported ball screw control head’s motion and repeated position high precisely.
-Support series of data setup in one time and realize continuously cutting.
-Special imported carbide saw blade and imported straight feeding guide rail pair.
-Hydraulic damping cylinder drive the saw blade feeding.
-Large range of cutting.maximum length up to 4200mm.three cutting angle 90/45/22.5auto change by button.
Configuration:
-Saw Blade:Japan kanefusa(Germany AKE)
-CNC System : Japan Mitsubishi AC servo system (Mitsubishi PLC .Mitsubishi Touch Screen . ----Mitsubishi Servo Motor .Mitsubishi Driver)
-Head Guide Rail and Ball Screw :Taiwan HWIN
-Pneumatic components: AirTAC (Include Cylinder.Solenoid Valve.UP Pipe and Connector)
-Low Voltage electrical apparatus: China CHINT

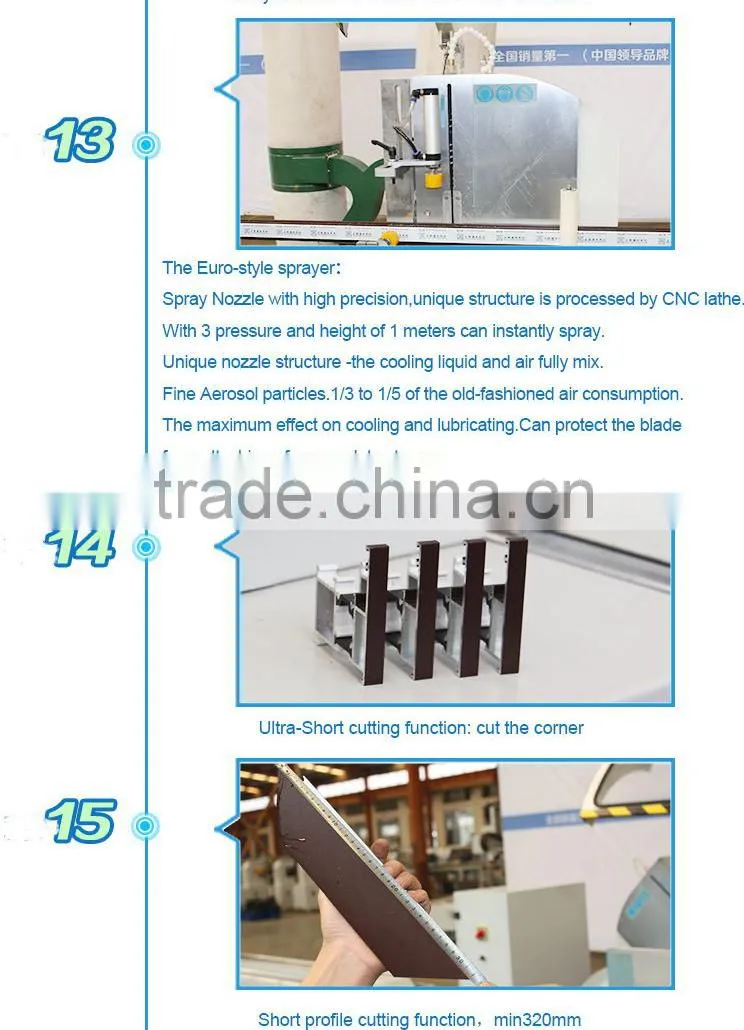

-Saw blades cooling : JMD Euro-Style Sprayer
-Wire and Cable : Concab Germany
-Saw Blade Motor: Techfull Simo(joint venture Sino-Italy)
Our best selling Cutting saw!!!

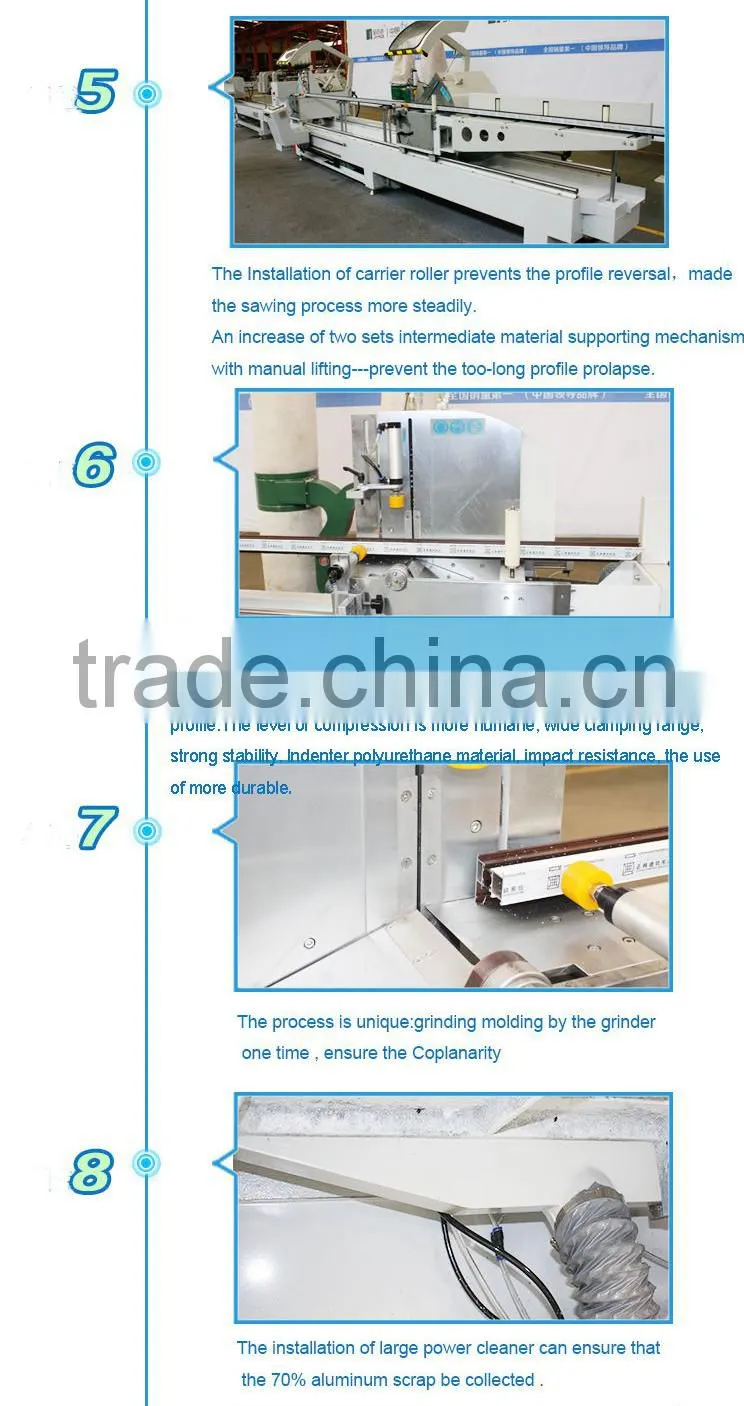

Details:

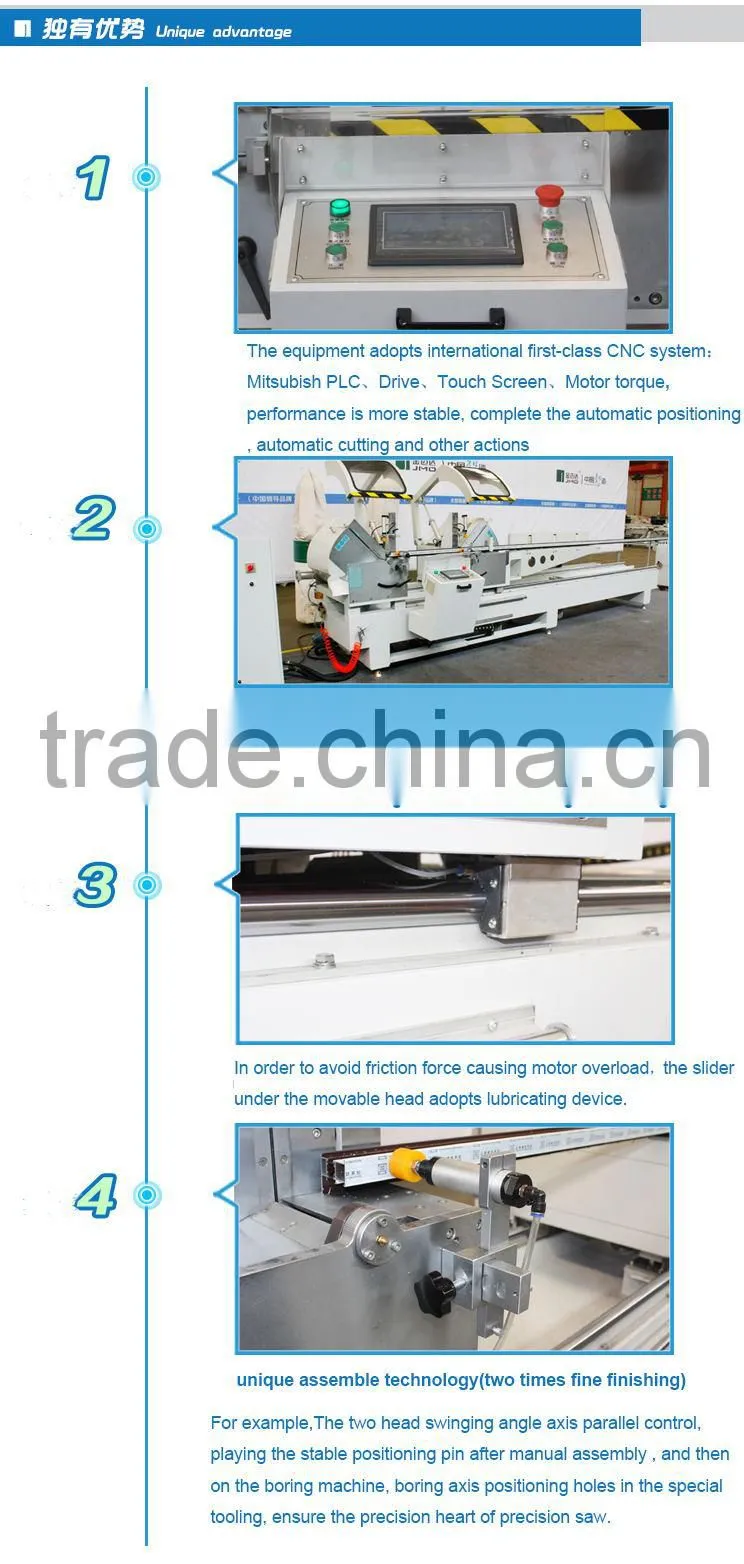

Unique Advantage:
-JMD is engaged to present customs with the prevail information and trend of the industry.
-JMD presents customized design and meet the customer's special purpose.
-For 100 customers,we'll present 100 solutions.
After-Sale Services
JMD can provoide engineers to service the machinery overseas.
Export:
JMD machinery have been exported to more than 43 countries in the world, covering North America, South America, Middle East, Southeast Asia, Oceania, Africa, Eastern Europe,etc.
At present JMD attends actively various well-known industrial exhibition at home and abroad to present the brand of JMD. As a result, we have more and more customers in the industry and grow up stably.
Packing
View of Factory and Workshop
Our R&D Team
Just tell us what you need and concern, we'll supply you the solution till you are satisfied!
Choose JMD, you will not be disapointed!
