Home > Instruments & Meters > Test Instrument > Test Machine > 3.5" New CCTV Tester

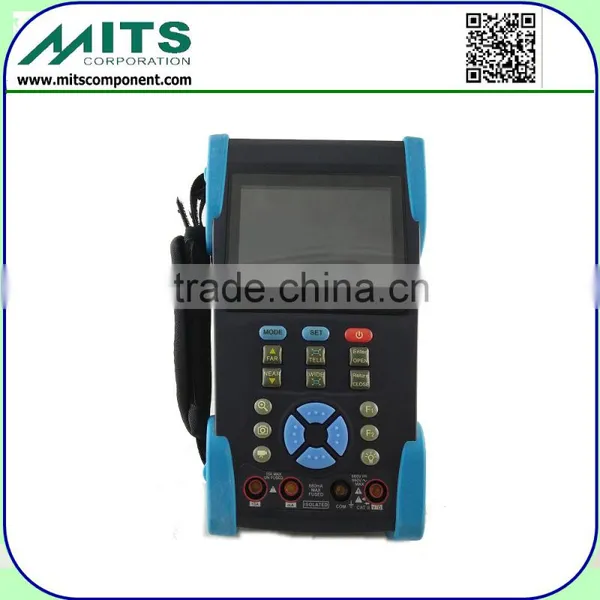

3.5" New CCTV Tester

Name: 3.5" New CCTV Tester
Brand: MITS
SKU: 123699883
Availability: InStock

US$ 605 - 780 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

MITS

Model Number:

VST-007T

Contact Supplier Request Quote Chat Now

MITS COMPONENT & SYSTEM CORP.

Payment & Shipping

Payment Methods:

Port of Shipment:

TPE

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name MITS

Model Number VST-007T

Product Description

Part number: VST-007T

Application

CCTV Surveillance installation and maintenance
Networking surveillance installation and maintenance
Speed Dome and IP CAM Testing
PING testing and IP address scan
PTZ protocol control and analysis

Model	VST-007(VII generation) [T]is optional
Video Test
Signal mode	NTSC/PAL (Auto adapt)
Display	3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution
LCD adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input & 1 channel Output
Video Output Mode	1.0 Vp-p
Video Level test
Level test	Video signals measured in IRE or mV
DC 12V 1A power output
DC 12V power output	Output DC12V1A power for camera
Audio input test
Audio input test	test the pickup and other audio equipments on the front-end
PTZ controller
Communication	Support RS232 and RS485
PTZ Protocol	Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate	600,1200,2400,4800,9600,19200,57600,115200bps
Video Signal Generation
Color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
UTP Cable tester
UTP cable test	Test UTP cable connection status and display in the screen. Read the number of the test box.
RS485 data analysis
Data Monitor	Captures and analyzes the command data from controlling device
10x Zoom Image
Image 10x zoom	10x zoom image display and video out
Photograph,Video record, Record playback
Photograph	snapshot and save the current image as JPG file
Video record	Video record and storage the file
Record playback	To view the storage file in the SD card
Port flicker
Port flicker	Find the connected POE port quickly.
IP scan,Link monitor,PING test
IP scan	Find out the connected IP camera or the other network equipment IP address quickly.
Link monitor	Check the IP address whether is occupied
PING testing	Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address

>>>" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0" target="_blank">Contact us now >>>>

Packaging & Shipping

We ship whatever you ask, by DHL/UPS/FEDEX/EMS, air or ocean shipment.

Accept small, trial orders, and customised orders too!

Our Services

Please note: All of our product's delivery term is: Ex-work Taiwan, the FOB pricing is for reference only
If there is any product information needed, please contact us or consult online
