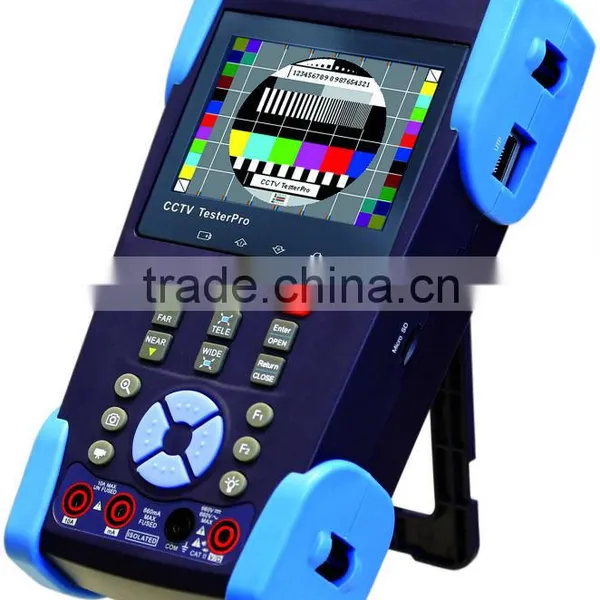

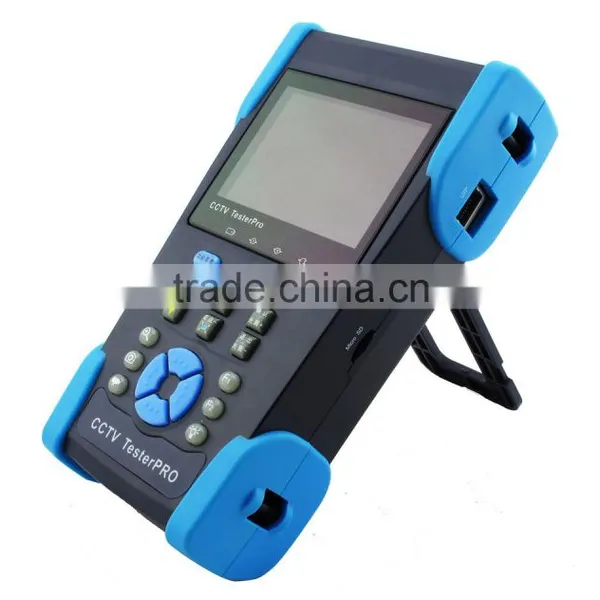

Help Center3.5" LCD CCTV Tester, MITS Taiwan, Handheld Tester, Surveillance Application, TDR Tests, PTZ Controller, High Efficiency
Related Products
-
Handheld XPON Optical Power Multimeter, MITS Taiwan, FTTX/PON Networks, Fiber, Ethernet/UTP Cable Testing, PON System TestingNegotiableMOQ: 1 Unit -
2.4GHz, 5GHz WiFi Spectrum Tester, WFT-2458, MITS Taiwan, Handheld Tester, IEEE 802.1a/ b/ g/ n Standard, Roaming TestNegotiableMOQ: 1 Unit
-
All-in-One 3.5" Handheld CCTV/IP Camera Tester - IPT-3500, MITS Taiwan. TDR Tester, Visual Fault Locator, Cable FinderUS$ 175 - 180MOQ: 1 Unit
-
MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable FinderUS$ 252 - 252MOQ: 1 Piece
-
OPM-005 Optical Power Meter, MITS Taiwan, CATV Fiber, REF, Alarm, Wavelength Auto-identify, Self-calibrating, Multi- CalibratedUS$ 115 - 130MOQ: 1 Unit

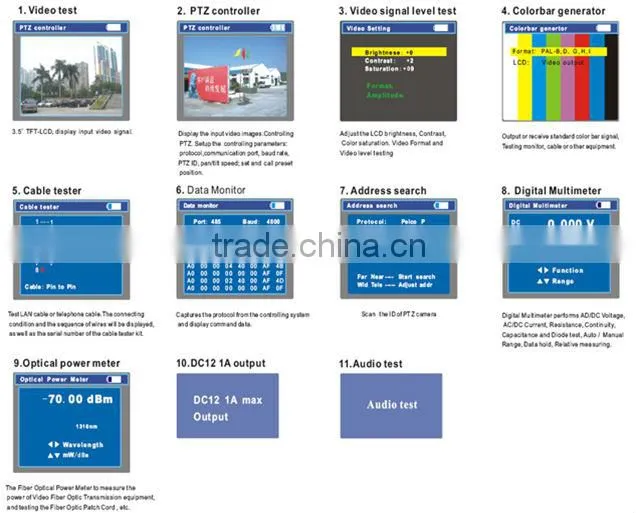

Product Screen Images
Features
* Input Voltage: DC 5V / 2A
* Video Signal level test: NTSC/Pal Auto adapts, 1Vpp, 140IRE
* PTZ controller data interface: RS-485 / RS-232 / RS-422,150-19200bps
* Optical Power Meter:
1. Wave Length: 850,1300,1310,1490,1550, 1625 nm
2. Detector: InGaAS
3. Linker: FC/PC (ST,SC)
4. Measurement Range: -70~+10 dBm
5. Display Resolution: 0.01dB
* Digital Multimeter:
1. Reading Range: -6600~+6600
2. Voltage: 0~660V Automanual, 0.1mV resolution
3. Current: 6.6mAm, 66mA, 660mA, 10A manual range
4. Resistor: 660,6.6K,66K, 660K,6.6m, 66M ohm auto/manual range
5. Continuity: Built-in buzzer will sound; if resistance lower than 50 ohm
6. Diode: 2.0V range, 1mV resolution
7. Capacitor: 6600pF!66,000uF auto/manual range
* Fuse: 660mA @250V/1A; 10A/un-fused
Model |
VST-007(VII generation)[T]is optional |
|||
Video Test | ||||
Signal mode |
NTSC/PAL (Auto adapt) |
|||
Display |
3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution |
|||
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|||
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|||
Video Output Mode |
1.0 Vp-p |
|||
Video Level test |
|
|||
Level test |
Video signals measured in IRE or mV |
|||
DC 12V 1A power output | ||||
DC 12V power output |
Output DC12V1A power for camera |
|||
Audio input test | ||||
Audio input test |
test the pickup and other audio equipments on the front-end |
|||
PTZ controller | ||||
Communication |
Support RS232 and RS485 |
|||
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
|||
Baud Rate |
600,1200,2400,4800,9600,19200,57600,115200bps |
|||
Video Signal Generation | ||||
Color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
|||
UTP Cable tester | ||||
UTP cable test |
Test UTP cable connection status and display in the screen. Read the number of the test box. |
|||
RS485 data analysis | ||||
Data Monitor |
Captures and analyzes the command data from controlling device |
|||
10x Zoom Image | ||||
Image 10x zoom |
10x zoom image display and video out
|
|||
Photograph,Video record, Record playback | ||||
Photograph |
snapshot and save the current image as JPG file |
|||
Video record |
Video record and storage the file |
|||
Record playback |
To view the storage file in the SD card |
|||
Port flicker | ||||
Port flicker |
Find the connected POE port quickly. |
|||
IP scan,Link monitor,PING test | ||||
IP scan |
Find out the connected IP camera or the other network equipment IP address quickly. |
|||
Link monitor |
Check the IP address whether is occupied |
|||
PING testing |
Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address |
|||
Cable scan | ||||
Cable scan |
Search the cable by the audio signal |
|||
PoE tester | ||||
PoE tester |
Display the power supply voltage and cable connection states |
|||
Digital Multimeter | ||||
AC/DC Voltage |
0-660V auto/manual range, the min resolution is 0.1mV |
|||
AC/DC Voltage |
660uA , 6.6mA, 66mA , 660mA, 10A |
|||
Resistance |
660, 6.6k, 66k, 660k, 6.6M, 66MΩ |
|||
Capacitance |
6.6nf~66000uF, the min resolution is 1pf |
|||
Diode |
0~2V forward voltage, the min resolution is 1mV |
|||
Data hold |
Hold and display the measured value |
|||
Relative measurement |
Display the relative power value |
|||
Continuity testing |
Built-in buzzer will sound, if resistance is lower than 50 Ω |
|||
Testing speed |
3 times/ seconds |
|||
Data range |
-6600~+6600 |
|||
Optical power meter | ||||
Calibrated Wavelength(nm) |
850/1300/1310/1490/1550/1625nm |
|||
Power range(dBm) |
-70~+10dBm |
|||
Sensitivity(nW) |
0.001nW |
|||
Connector type |
FC/PC |
|||
Data hold |
Hold and display the measured value |
|||
Relative measurement |
Display the relative power value |
|||
TDR Tester | ||||
TDR Test |
breakpoint and short circuit measurement(BNC cable, telephone cable). |
|||
POWER | ||||
Power Adapter |
DC 5V(1.5A) |
|||
Battery |
Built-in 3.7V Lithium polymer battery ,3000mAh |
|||
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|||
Low Consumption |
Energy saving technology, the battery icon real-time display |
|||
Parameter | ||||
Operation setting |
English/Chinese and other languages OSD menu |
|||
5-60 (mins) |
5-60 (mins) |
|||
Keytone |
On/Off |
|||
General | ||||
Working Temp. |
-30°C---+70°C |
|||
Working Humidity |
30%-90% |
|||
Dimension/Weight |
194mm x 112mm x 48mm / 540g |
|||
Please note: All of our product's delivery term is: Ex-work Taiwan
If there is any product information needed, please contact us or consult online
