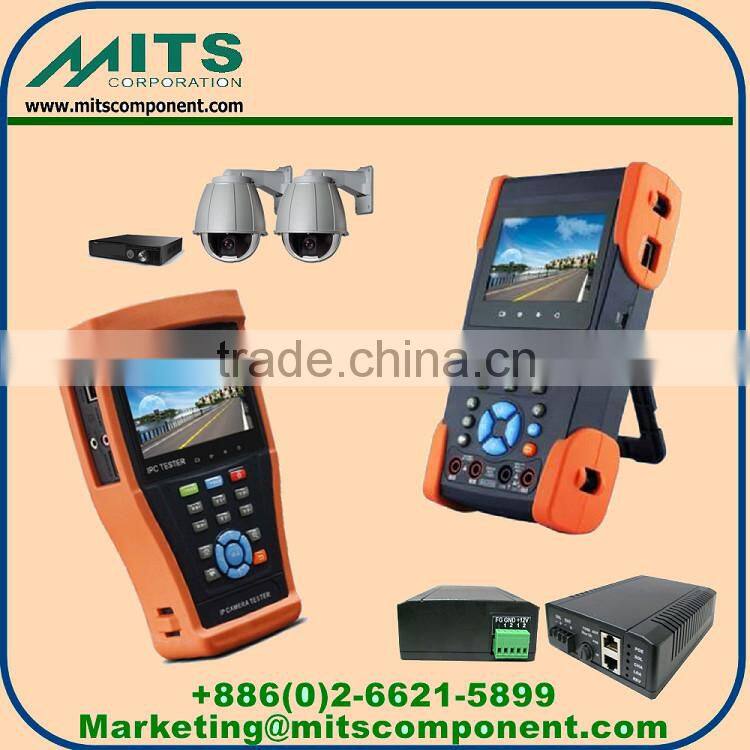

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder

Name: MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder
Brand: MITS
SKU: 123699689
Availability: InStock

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder thumbnail-1

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder thumbnail-2

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder thumbnail-3

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder thumbnail-4

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder thumbnail-5

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder thumbnail-6

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder photo-1

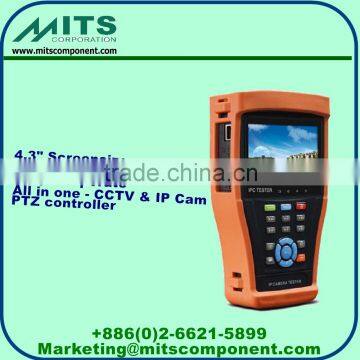

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder photo-2

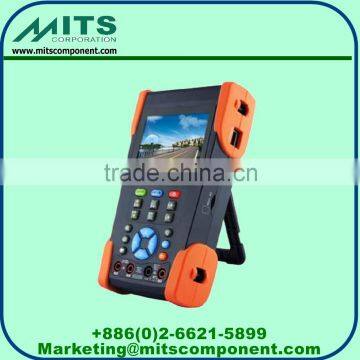

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder photo-3

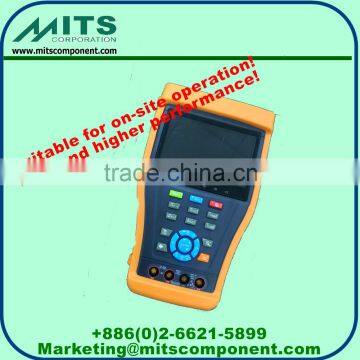

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder photo-4

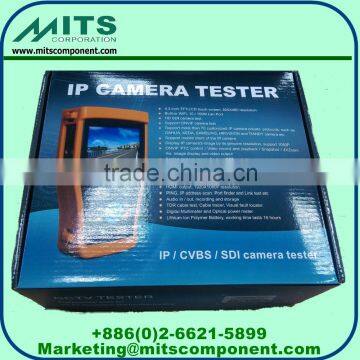

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder photo-5

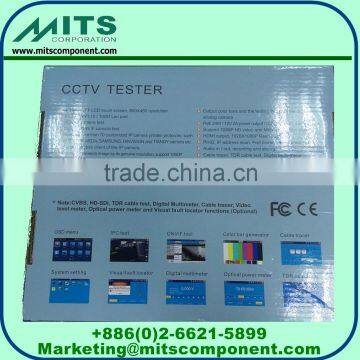

MITS All-in-One 4.3" Handheld CCTV IP Camera Tester - TDR Tester, Visual Fault Locator, Cable Finder photo-6

US$ 252 - 252 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

MITS

Model Number:

IPT-4300

Contact Supplier Request Quote Chat Now

MITS COMPONENT & SYSTEM CORP.

Payment & Shipping

Payment Methods:

Port of Shipment:

TPE

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name MITS

Model Number IPT-4300

4.3” handheld HD OSD
ONVIF
IP address search, PING test
Longer working hours
PTZ controller
Various optional functions for your to choose from, customise it just for you!

Optional Functions

L *Video Level Meter

C *Cable Finder

M *Digital Multi-meter

O *Optical Power Meter

V *Visual Fault Locator

T *TDR Tester

S *SDI Camera Test

A *AHD Test

D *CVI Test

H *TVI Test

Applications

Surveillance camera system for field installation and maintenance
Network cabling project installation and maintenance
Dome camera and all-in-one camera testing
Video transmission channel testing
PTZ controller

Feature

4.3” OSD menu touch screen
Trajectory Analysis
Easy To Operate
Supports more than 40 types of IP camera and PTZ controlsystem
Built-in WIFI for wireless network camera test, such as IP address scan, PING network test…etc.
1080P HD camera, supports HD video files and MKV/MP4 media files
Analog camera & SDI Camera support
Supports HDMI output
Longer working hours and power bank supply
(Optional) SDI test, TDR test, cable scan, BNC cable check…etc.
ONVIF standard

>>" href="http://message.china.cn/msgsend/contact.htm?action=contact_action&domain=2&id=230306189&id_f=IDX1JOwVC8_mShyzFqh5j65cioCBGZIYP6-BxdiEqrkuxJUWt1KC7wOJymVzQxeDMl2s&mloca=main_site_contacts&umidToken=B3a41a2559deec3e948e90172809a27b0">CONTACT US NOW>>>

Specs

Model	IPT-4300
Display	4.3 inch capacitive touch screen 800 (RGB) * 480 resolution
Network Port	10 / 100M auto adapt,RJ45
Wifi	Built in Wifi, speeds 150M, display wireless camera image
IP Camera Types	ONVIF, ACTi, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, Aipu-waton IP5000-BC-13MP/IRS06-13MP, Fine-Tida IPC, FSJ BY-1080Q, WEISKY IPC camera… etc
SDI Camera Test *	1 channel SDI in BNC input, supports resolution 720p 60 fps / 1080p 30 fps
TVI Camera Test * (One among TVI / CVI / AHD)	Supports resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable
CVI Camera Test * (One among TVI / CVI / AHD)	Support resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable
AHD Camera Test * (One among TVI / CVI / AHD)	Support AHD2.0, support resolution 1080P 25fps, 30fps / 720p 25fps, 30fps, camera OSD menu control over coaxial cable
Video In/Out	1 channel Video in BNC input & 1 channel video out BNC output, suppors NTSC/PAL
Video Level Meter *	PEAK video signal level, SYNC signal level, Color bar chroma level measurement
Zoom Image	Support analog camera and IP camera image zoom / move
Snapshot Video Record & Playback	Image screen snapshot, record, save, view and record and playback
HDMI Output	1 channel HDMI output supports 1920 * 1080P
PoE Power Output	48V PoE power output, max. power 24 W
Power Output	Output DC 12V / 2A
USB Power Bank	5V / 2A power output
Audio Test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
PTZ Protocol	Support RS232/RS485 control, Baud 600-115200 bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
Color Bar Generator	Output one channel PAL / NTSC color bar video signal for testing monitor or video cable (red, green, blue, white, and black color)
UTP Cable Tester	Test UTP cable connection status and display on the screen. Read the number on the screen
Data Monitor	Captures and analyzes the command data from controlling device, also can send hexadecimal
Network Testing	IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address
Cable Tracer *	Search the cable by the audio signal
PoE / PSE Test	Measurement POE switch or PSE power supply voltage and cable connection status
Digital Multi-meter *	AC / DC Voltage,AC / DC current,Resistance,Capacitance,Data hold,Relative measurement,Continuity testing . Testing speed: 3 times / seconds,Data range – 6600 - +6600.
Optical Power Meter *	Calibrated Wavelength(nm) :850 / 1300 / 1310 / 1490 / 1550 / 1625 nm Power range (dBm) : - 70 - + 10 dBm
Visual Fault Locator *	Test fiber’s bending and breakage ( SM and MM fiber)
TDR Tester *	Cable length and short circuit measurement (BNC cable, Coaxial cable, Cat 5 / 6, telephone cable)
POWER
External Power Supply		DC 12 V ( 2 A )
Battery		Built-in 7.4 V Lithium polymer battery 5000 mAh
Rechargeable		After charging 7 - 8 hours normal working time: 16 hours
System Parameter
Operation Setting		Capacitive touch screen, OSD menu, Chinese/English
Auto Off		5 - 30 (mins)
General
Temperature		- 10 ℃ - + 50 ℃
Humidity		30 % - 90 %
Dimensions		212 mm x 135.5 mm x 56.5 mm / 750g
