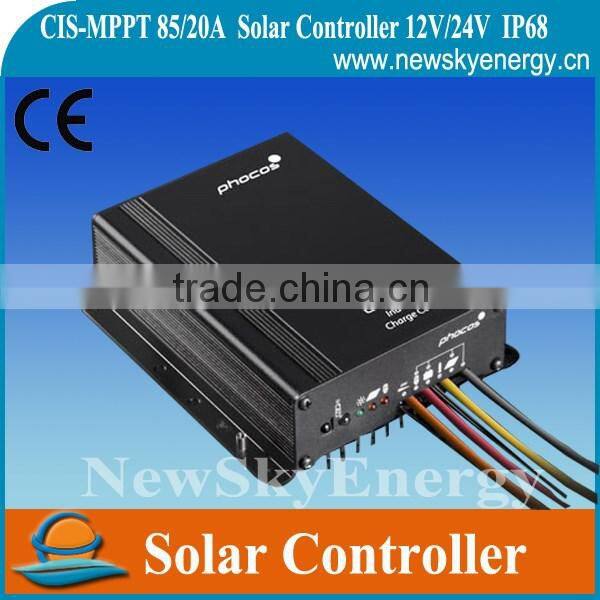

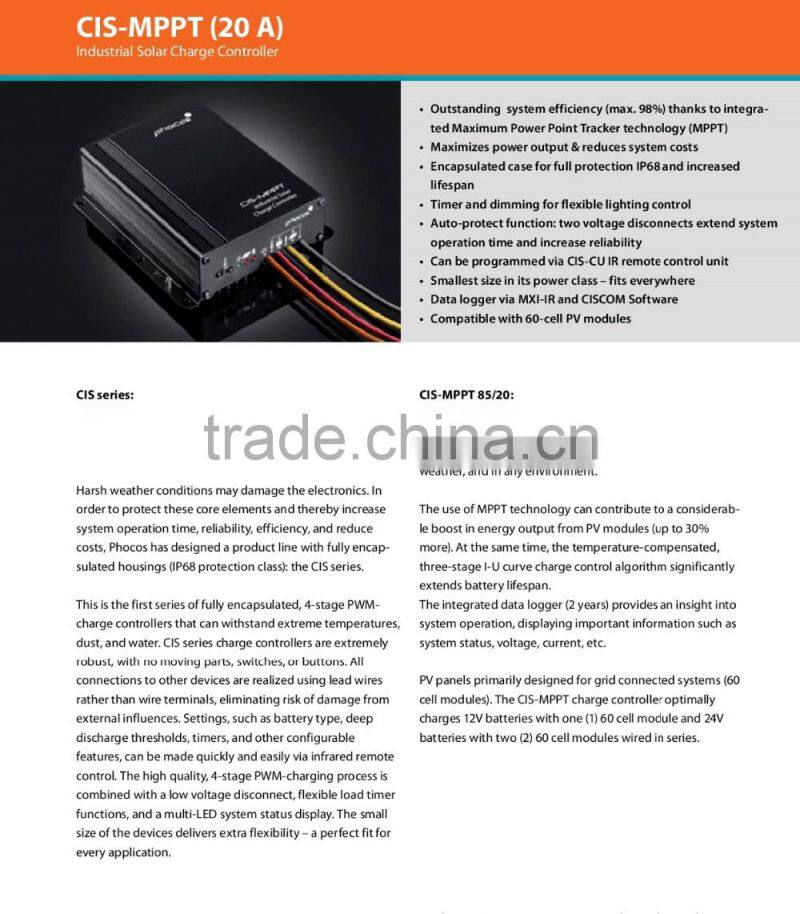

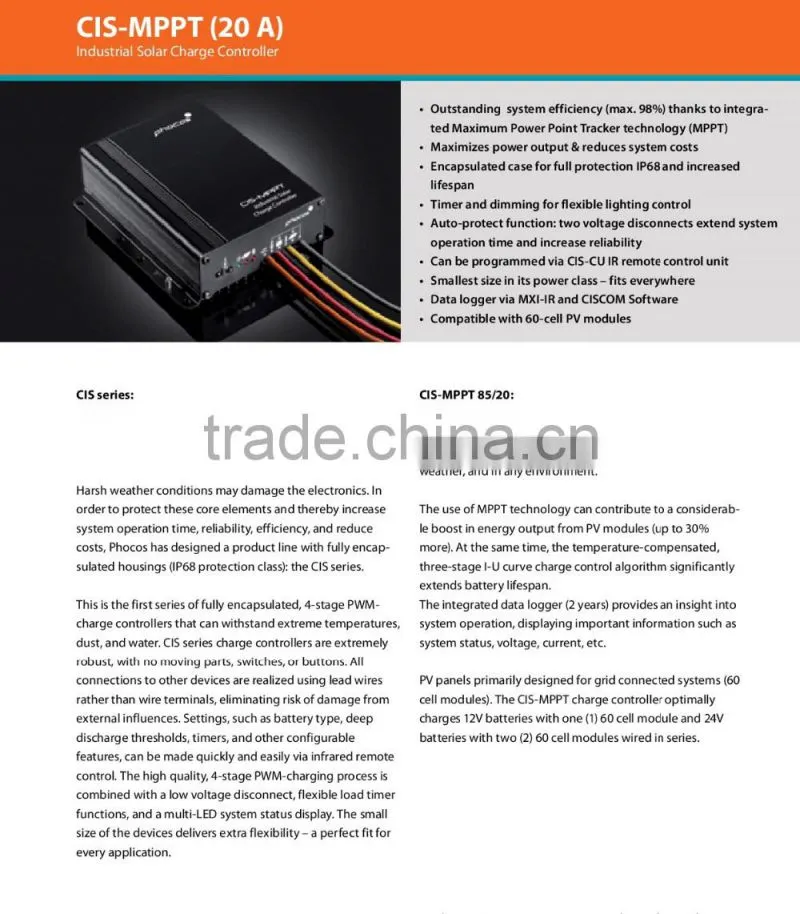

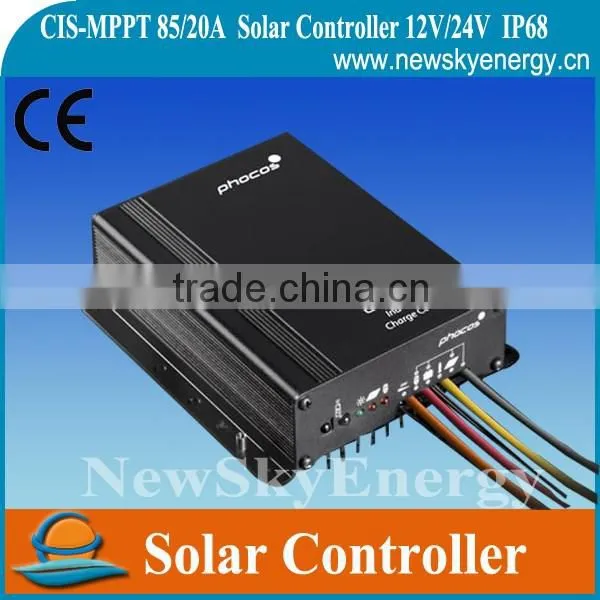

Phocos CIS MPPT 85/20A Solar Charge Controller

  Phocos CIS MPPT 85/20A Solar charge Controller

• Maximizes power output & reduces system costs

• Encapsulated case provides full protection (IP68 protection class) increased lifespan

• Intelligent timer and dimming functions for flexible lighting control

• Auto-protect function: two voltage disconnects extend system operation time and increase reliability

• Can be operated via CIS-CU IR remote control unit

• Smallest size in its power class-fits everywhere

• Data logger via MXI-IR and CISCOM Software

• Compatible with 60-cell PV modules

With innovative maximum power point tracking technology, this Phocos MPP tracker ensures maximum performance and yield from all types of solar systems – year-round, in any weather, and in any environment.

The use of MPPT technology can contribute to a considerable boost in energy output from PV modules (up to 30% more). At the same time, the temperature-compensated, three-stage I-U curve charge control algorithm significantly extends battery lifespan.

The integrated data logger (2 years) provides an insight into system operation, displaying important information such as system status, voltage, current, etc.

PV panels primarily designed for grid connected systems (60 cell modules). The CIS-MPPT charge controller optimally charges 12V batteries with one (1) 60 cell module and 24V batteries with two (2) 60 cell modules wired in series.
