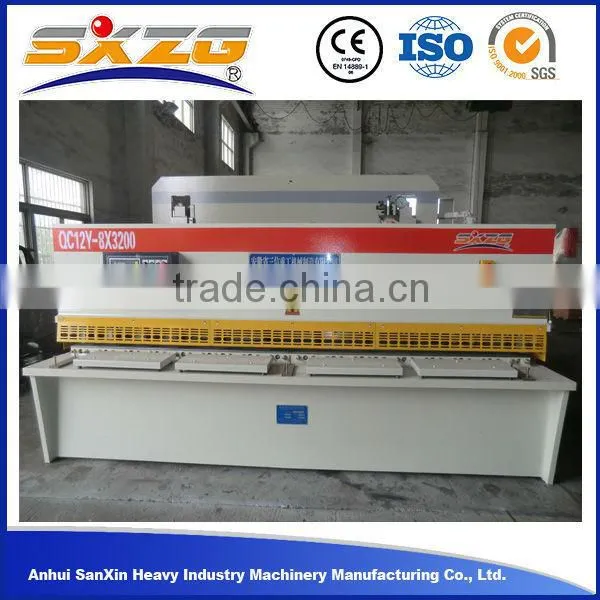

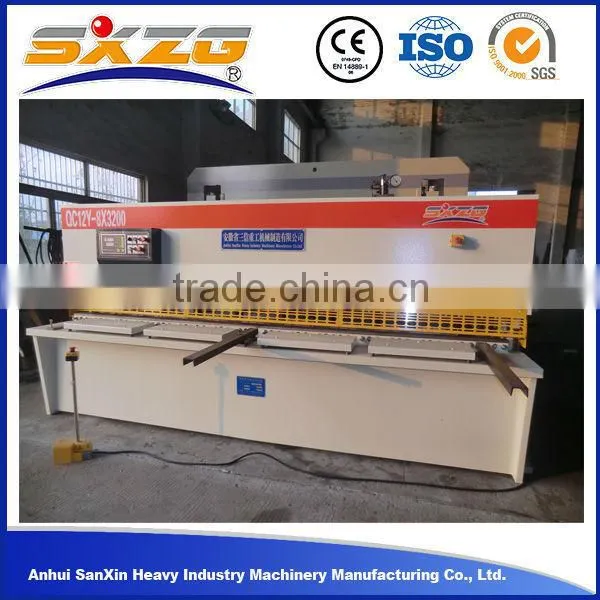

Hydraulic pendulum shearing machine
Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliableperformance,and nice ted with digital display system.
Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliable performance,and nice ted with digital display system.
Hydraulic driven and returning stroke is activated by the nitrogen cylinder smoothly and promptly.
The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.
Rolling material support ball is provided,to minimize fish tail with sheet bar and to reduce frictional resistance.
The machine tool is provided with the functions of digital display,soft limit,as well as prompt for one-way positioning clearance,and automatic counting for shearing.
The machine uses protection fence for safe operation.
Machine Model: QC12K-8X3200
Max cutting thickness:8.0mm
Max cutting length:3200mm
Throat Depth:100mm
Cutting speed:14times/min
Cutting angle:2.0°
X Axis back gauge range:500mm(optional)
Main motor power:7.5KW
External dimensions:390x170x185CM
Machine net weight:6.9Ton
E21 NC Controller feature:
Back gauge and block control
Intelligent positioning
Stock counter
Program memory up to 40 programs
Up to 25 steps per program
One side positioning Retract function
One key backup/restore of parameters
Chinese/English Mm/inch
Video: http://youtu.be/-DiIXSBu4Zc
