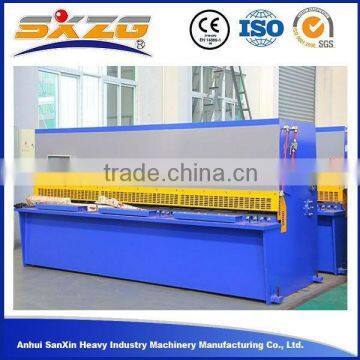

4*4000 cnc shearing machine price, aluminum cutting machine, metal cutting machine
Specification:
shearing machine
| 1. High precision,Wide application |
| 2. CE Certification, ISO Certification |
| 3. High performance and easy to operate |
Technical parameters:
QC12Y/K-4*4000 shearing machine
| Name | Value/Unit |
| Cutting thickness | 4/mm |
| Cutting length | 4000/mm |
| Cutting angle | 1.5/° |
| Throat depth | 100/mm |
| Back-gauge Range | 20-600/mm |
| Travel times | 14cycle/min |
| Power | 7.5 |
| Dimension L*W*H | 4700*1600*1600/mm |
| Weight | 6200/kg |
| Oil pump | 10MCY-14 |
Main features:
| 1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumlator-based pullback cylinder with steady and reliable operation. |
| 2. Stepless control for the stroke; the gap between up blade and down blade is manually adjusted by handle for high uniformily; protection fence and the electric interlock to ensure the operation safety. |
| The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stablity and can ensure the accuracy of displacement of backgauge. More over CNC system has the accessory function of compensation and automatic check. |

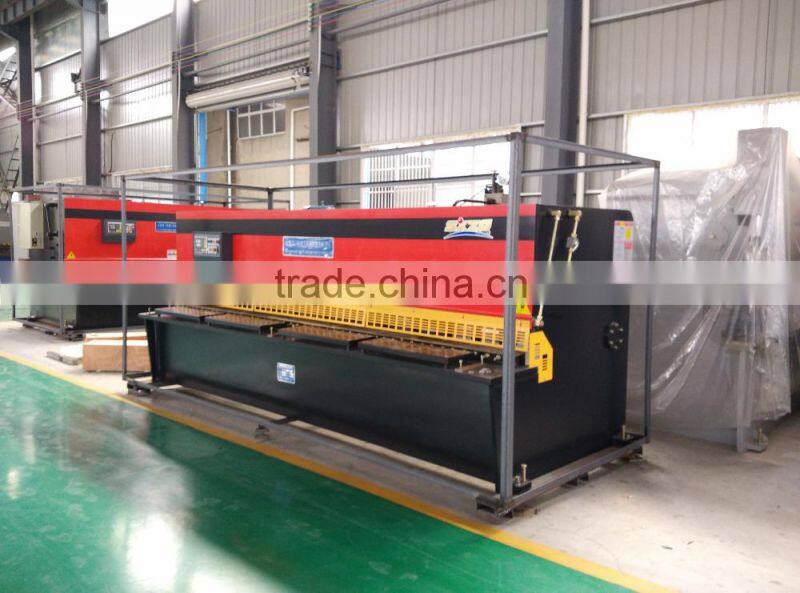

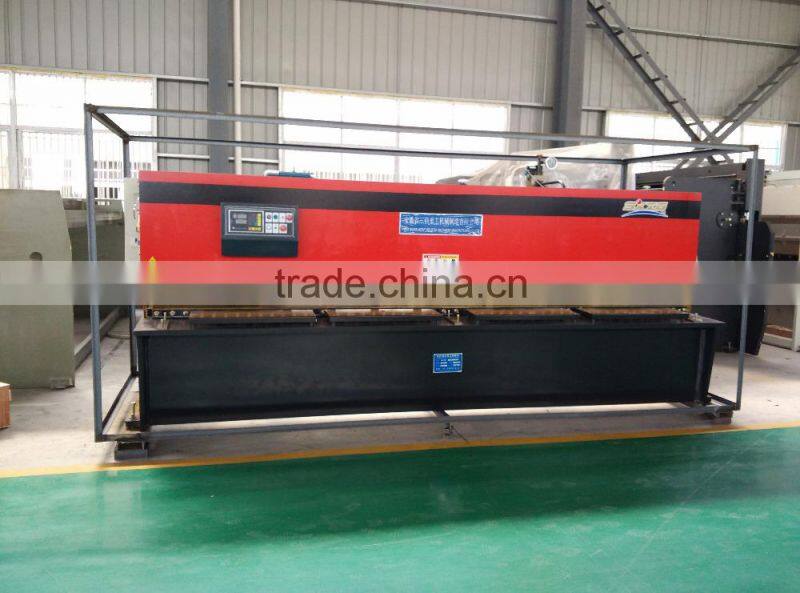

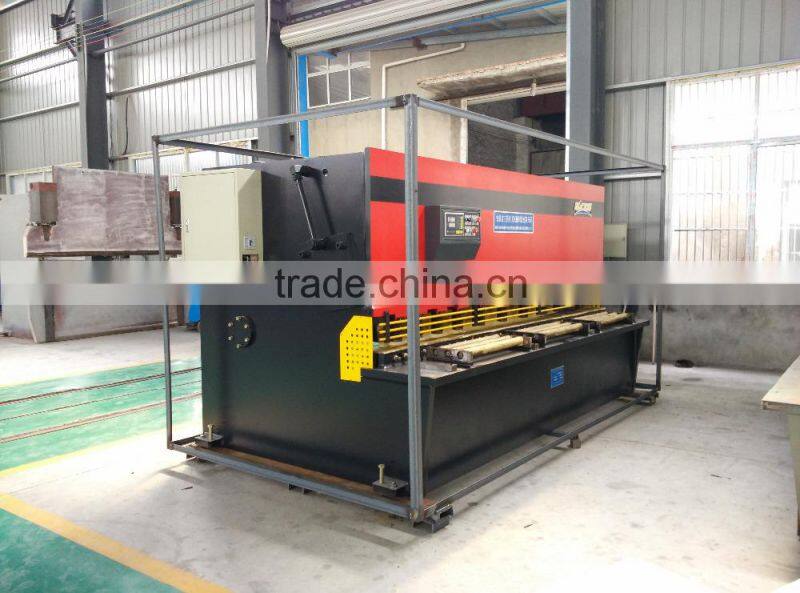

Machine pictures

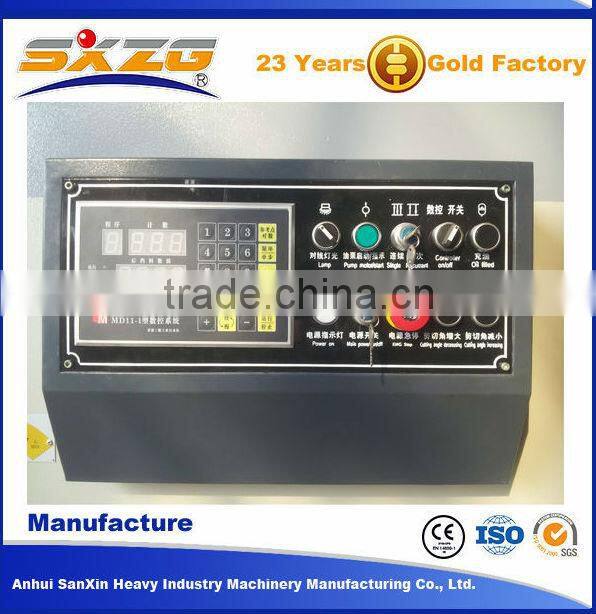

MD11-1 CNC Controller Features (Optional):
| 1. Using servo-control technology. |
| 2. Electrically operated rear bumper material previous slide automatic positioning |
| 3. Entire Chinese operation contact surface, direct-viewing simple. |
| 4. The multi-channel procedure moves auto matically, procedure and procedure step link. |
| 5. Keeps off the material to make concessions automatically. |

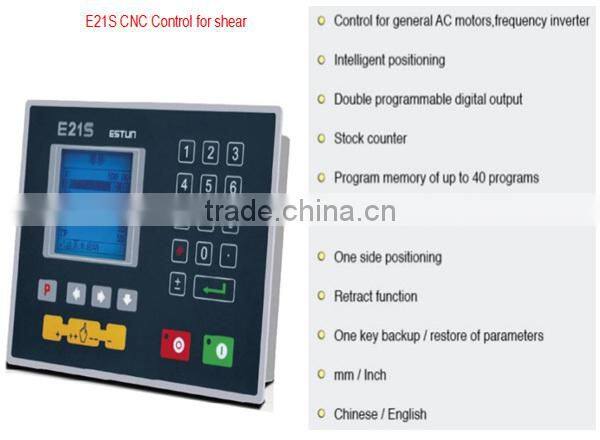

E21S CNC Controller Features (Optional):
| 1. Backgauge control |
| 2. Control for general AC motors, frequency inverter |
| 3. Intelligent positioning |
| 4. Double programmable digital output. |
| 5. Stock counter |
| 6. Program memory of up to 40 programs up to 25 steps per program. |
| 7. One side positioning |
| 8. Retract function |
| 9. One key backup/restore of parameters |
| 10. mm/inch |
| 11. Chinese/English |
Producing Capacity
CNC Shearing Machine Application
Application materials: cnc shearing machine is good at cutting various metal plate. Like carbon steel, stainless steel, aluminum plate, copper plate, iron plate, act.
Packaging and shipping
Our service
| 1. One year guarantee for whole machine |
| 2. 24 hours technical support by email |
| 3. Calling or door-to-door service |
1.How about your machine quality? Re: SXZG is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry. And where there are our machines, there are good reputation and terminal user satisfaction. |
2. How about your manufactory in China? Re: SXZG located in Ma'anShan City,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service. |
