Help Center2015 the Lastest Polyurethane Spray Foam Machine JHPK-IIIB
Related Products
-
Polyurethane Injection Machine F16US$ 6,800 - 8,000MOQ: 1 Set -
High Speed Plastic Injection Machine Innovative Products for Import/China Wholesale Poliurethane Injection Machine ComUS$ 9,000 - 10,000MOQ: 1 Set
-
Hot Sale Polyurethane Spray Machine JHPK-H30 From ManufacturerUS$ 9,000 - 10,000MOQ: 1 Set
-
Polyurethane Spray Machine JHPK-H30 for Wall/roof Insulation From ManufacturerUS$ 9,000 - 10,000MOQ: 1 Set
-
PU Spray Insulation Machine JHPK-H30US$ 9,000 - 10,000MOQ: 1 Set

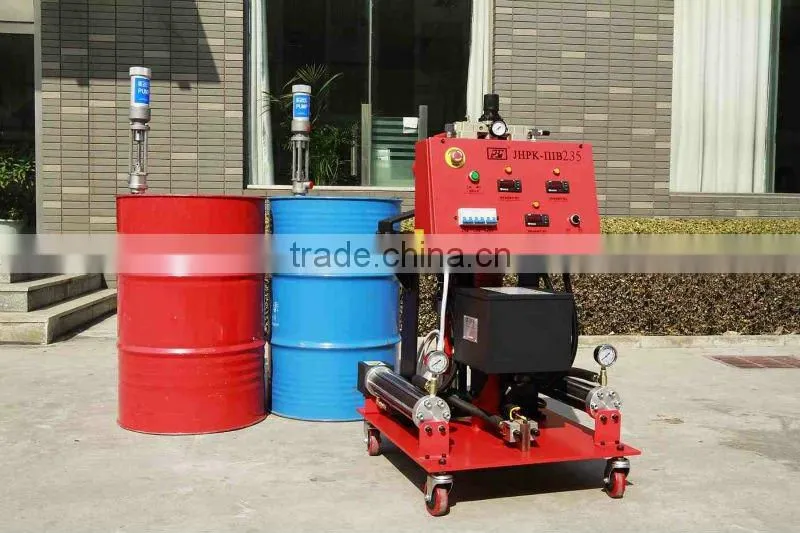

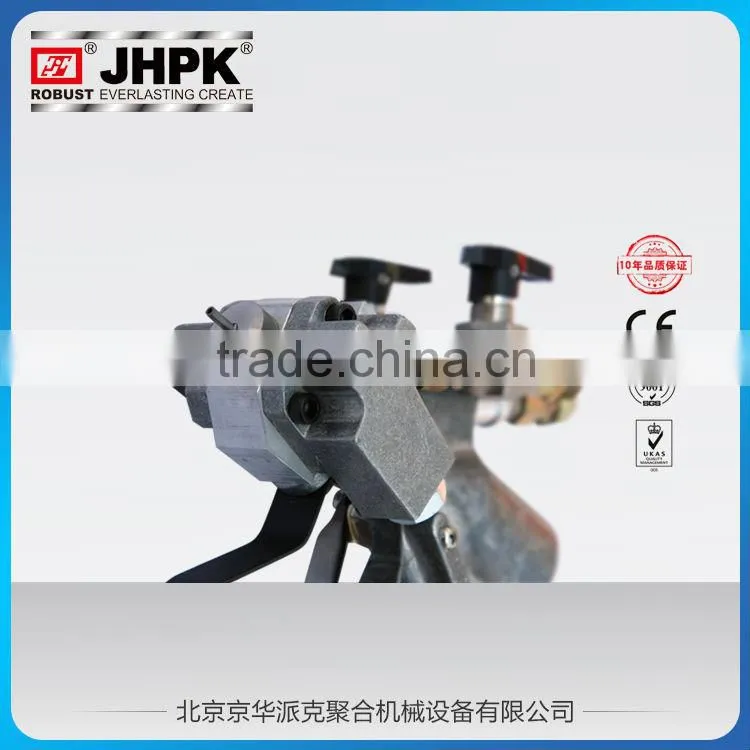

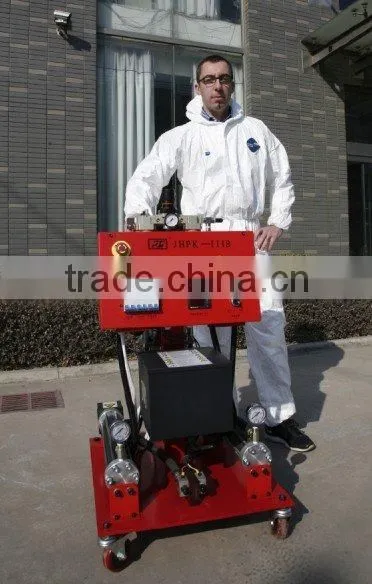

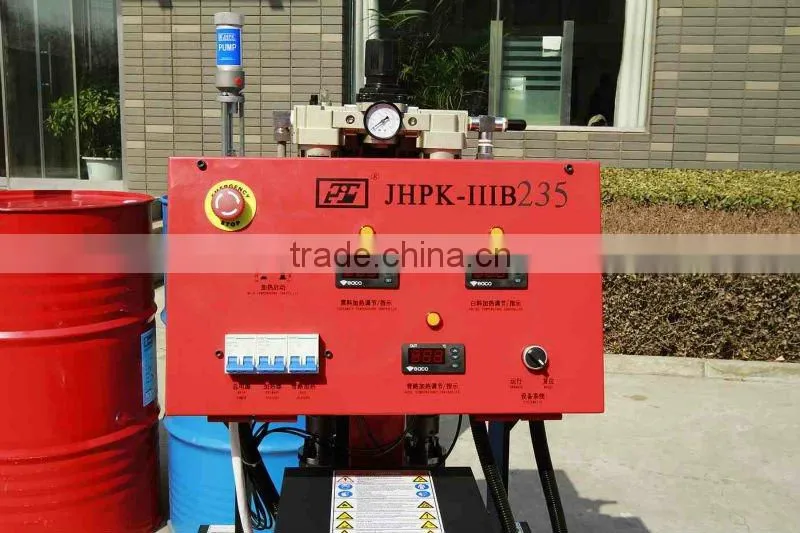

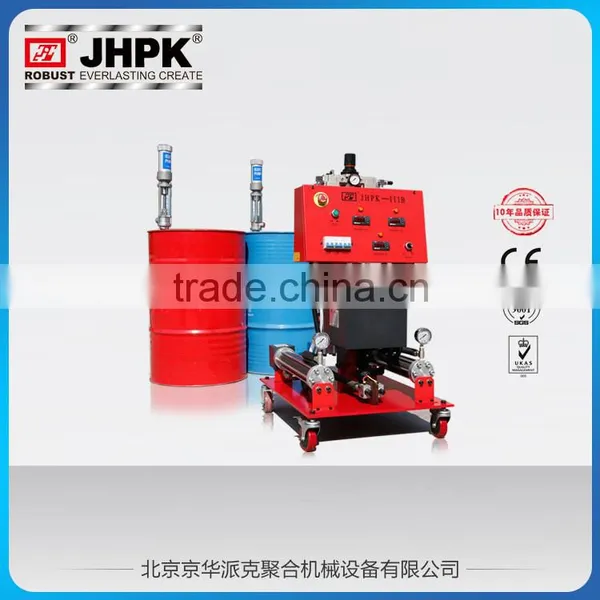

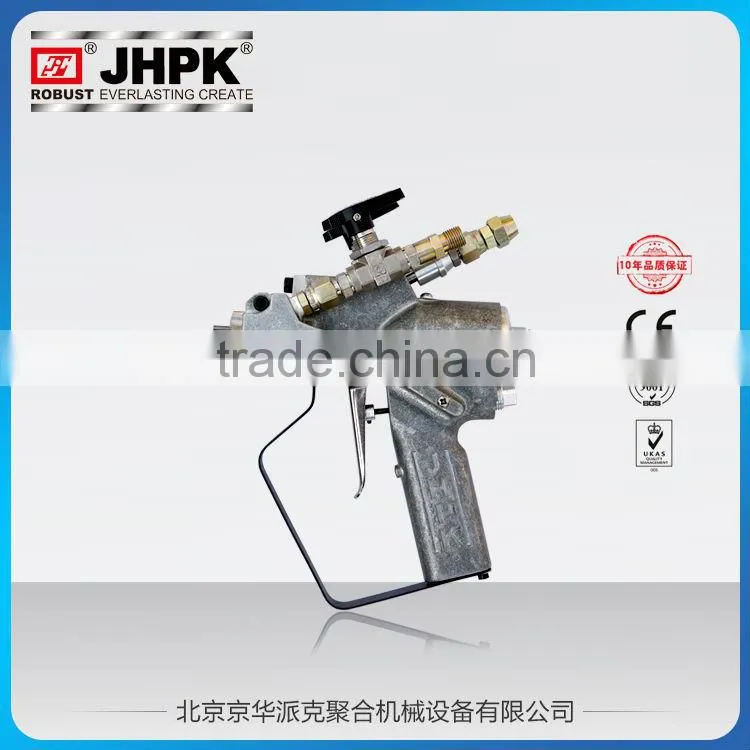

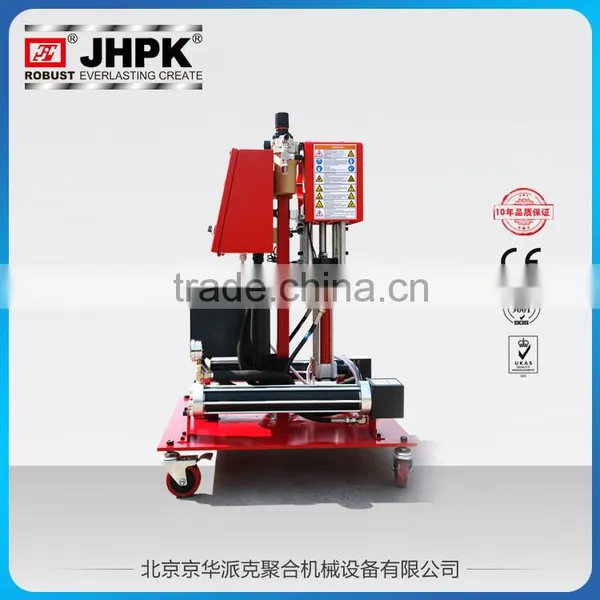

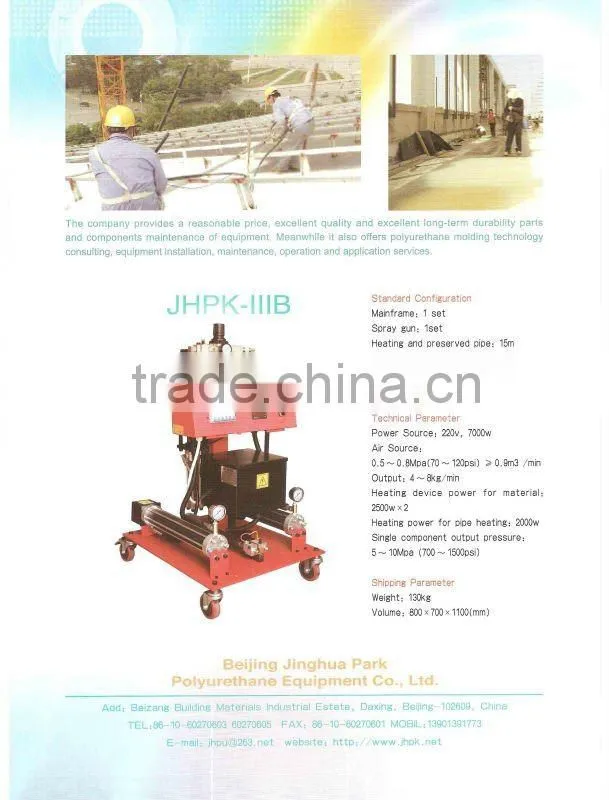

JHPK-IIIB ,High-pressure Polyurethane Spray and Perfusion Equipment.The parts of the equipment are from America making sure the pressure is enough for mixing the double component materials together.It has the separate heater which is 2500 watt;provides the reliable heat source for the row materials.The pipe of heating and preserved is 15 meters and it preserves the heat energy of the materials.The system of spray gun with non-solvents washing makes the machine easy to operate,and maintain.

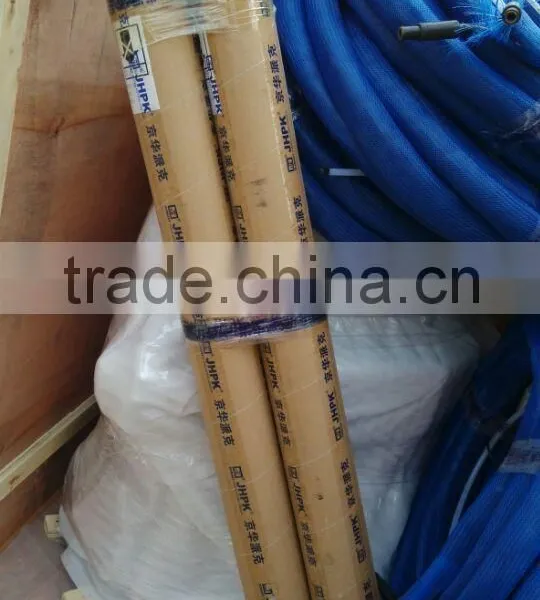

Mainframe: 1 set Spray gun: 1 set Heating and preserved pipe: 15m Connecting pipe for spray gun: 1.5m Max.Pipe length:45m Transfer pump: 2 sets |
| Technical Parameter: |
|---|
Electrical source: 220v 7000w Air source:0.5~0.8Mpa(70~120psi) ≥ 0.9m3/min Output: 4~8kgsmin Heating device power for material: 2500w ×2 Heating power for pipe heating: 2000w Single component output pressure: 5~10Mpa (700~1500psi) |
| Technical Parameter: |
Weight: 150kgs Volume: 800x700x1100(mm) |
overseas third-party support available

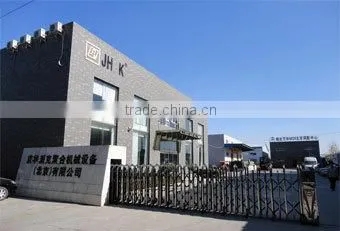

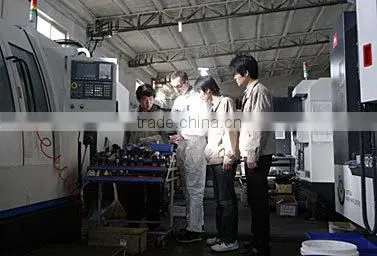

Beijing Jinghua Park Polyurethane Equipment Co. Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China. JHPK specializes in developing, manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system. With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
