JHPK-F16 polyurethane foaming equipment is the newly series of foaming equipment that launched by Beijing Jinghua Park Polyurethane Equipment Co.Ltd.

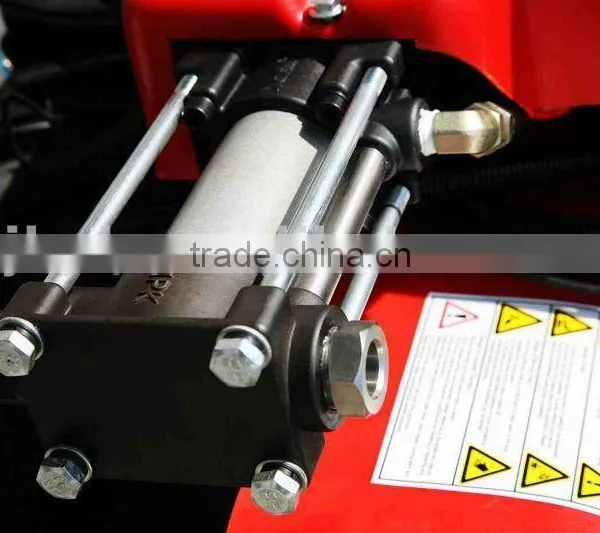

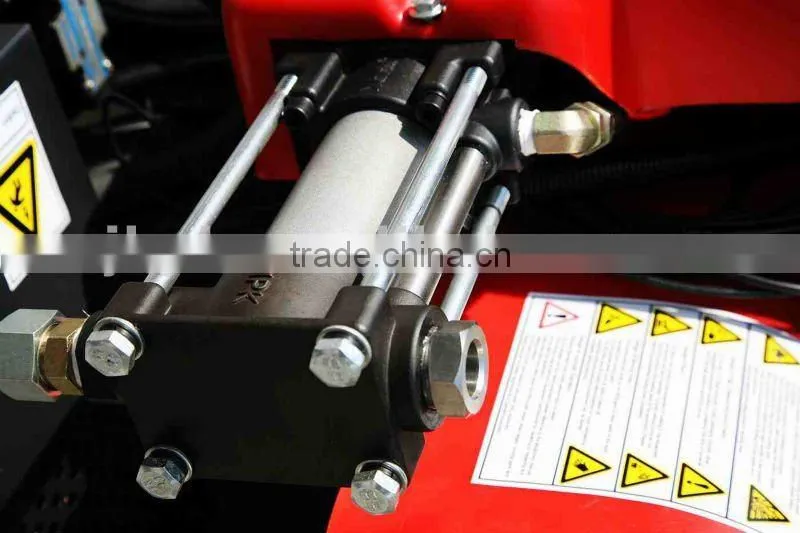

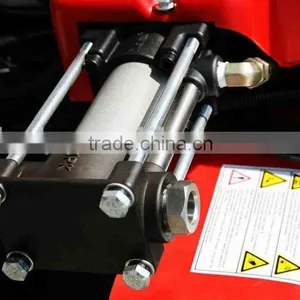

Compared with the traditional material pump pushing vertically of the traditional equipment, its unique hydraulic driven material pump pushing parallel has solved the problem of seals are damaged by the tilted pump caused by the uneven pressure of two material pumps.
The complete, closed, immersed and lubricated material pumps of isocyanate have completely against the air. It has solved the problem that isocyanate crystallizes when comes to the water.
The external heating way of pipe line with ultra thin flat copper wires increases the pipe power so the speed of pipe heating is faster, and the function of heat preservation is more perfect.
Simple, compact machine layout makes the equipment decorous and fashionable. Simple and intuitive operating mechanism saves the steps of resetting the machine over and over again.

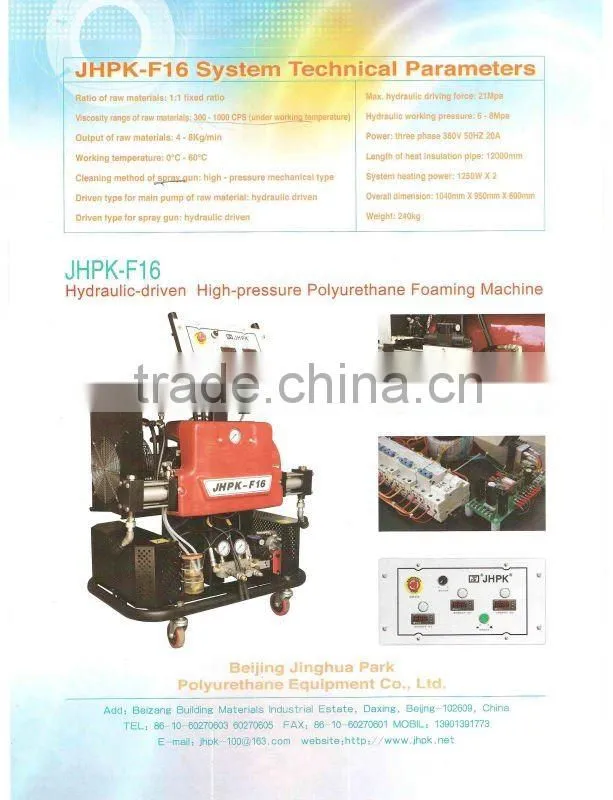

| Technical Data: |
|---|
Raw Material Proportioning: 1:1 constant proportion Viscosity range of raw materials: 300~1000CPS (under the operating temperature) Output: 4~8kg/min Operating temperature: 0℃~60℃ The way of cleaning the perfusion gun: High-pressure machine cleaning The way of driving the main raw material pump: Hydraulic Driven The way of driving the perfusion gun: Hydraulic Driven Maximum hydraulic driving power: 21Mpa Hydraulic working pressure: 6~8 Mpa Electrical requirements: 380v, 50Hz, 20A The length of material heating pipe: 12000mm The power of system heating: 1250w×2 |
| Technical Data: |
Dimension: 1040mm×950mm×600mm Weight: 240kg |
overseas third-party support available
Beijing Jinghua Park Polyurethane Equipment Co. Ltd. is a modern, dynamic and expanding Chinese private enterprise located in Beijing the capital of China. JHPK specializes in developing, manufacturing and distributing the polyurethane materials & the relevant high pressure airless polyurethane spray perfusion equipment. The wide varieties of single or double-components high temperature airtight spray polyurethane equipment can be used in many areas such as waterproof, antisepsis, construction, dope and fireproof.
JHPK and its shareholders take pride in the strict, scientific and professional management and consummate quality assurance system. With the years of production experience JHPK widely imbibed the advanced technology from China and worldwide. Especially the uses of world famous brand parts make the equipments have excellent performance.
