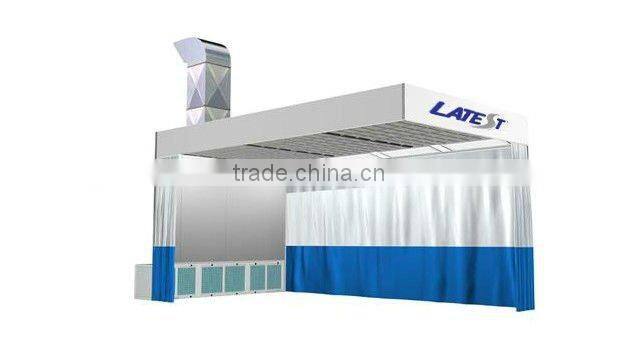

Car spraying booth (CE,2 years warranty time)

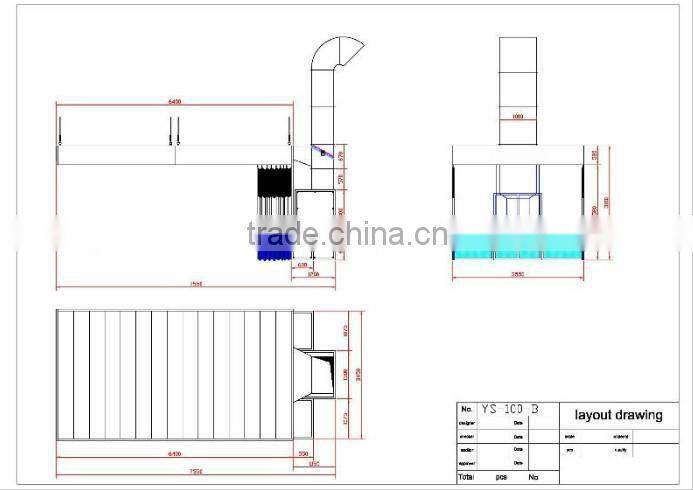

Outside Dimension

7550×3550×3100mm(L×W×H)

Inside Dimension

6300×3450×2700mm(L×W×H)

Plenum Dimension

6300×3450×400mm(L×W×H)

Room Body

Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains;

Lighting

8units×4pcs=32pcs 36W, with electronic ballasts,5.0mm clear tempered glass;

Generator Setting

Exhaust air from rear side; galvanized steel molding frame, white coated steel cover.

Intake and Exhause Air System

5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity: 15500 m ³/h, electric damper for exhaust air.

Filtering System

Pre-filter, high efficiency filter, exhaust fiberglass filter

Roof Plate

Galvanized steel plates

Control System

Fan operation switch, lighting switch, emergency stop;

Setting Style

Suspending steel hook from roof of building or steel column supporting;
