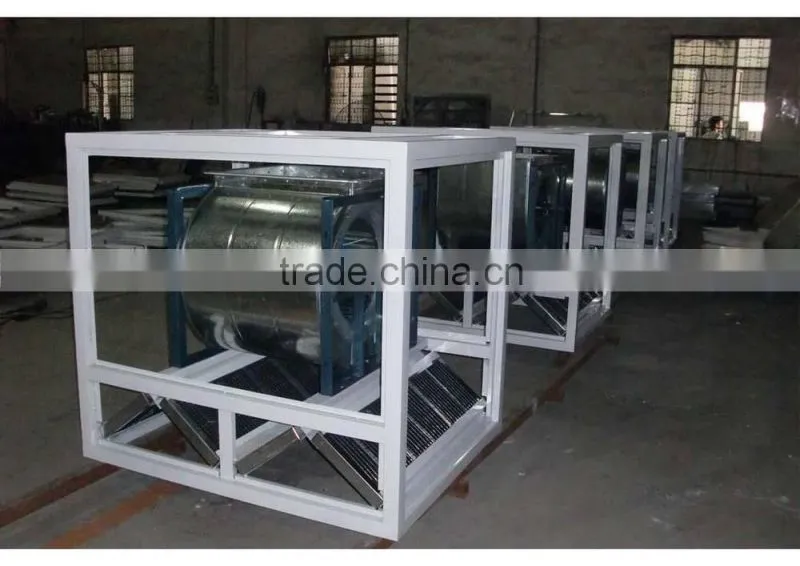

04,1Intake air fan:2sets*4kw double-intake centrifugal fan,outtake fan:1set*7.5kw  double-intake centrifugal fan with multi filters and active carbon.

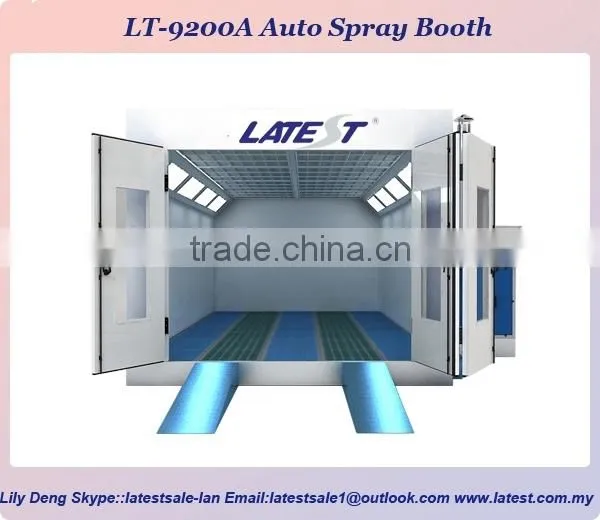

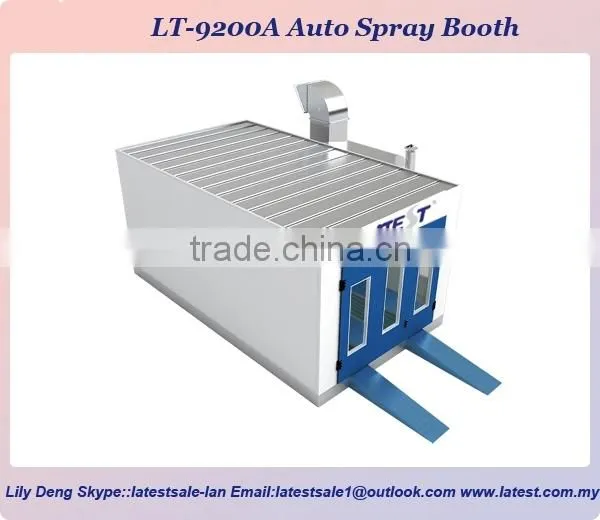

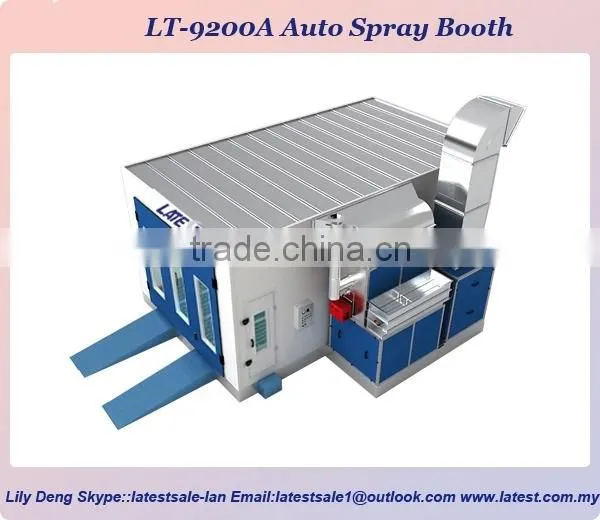

LT-9200A Auto Spray Booth

(2x4kw intake air,1x7.5kw outtake air)

1,Inside Size :6,900x3,900x2,650mm(LxWxH).
2,Outside Size:7,000x5,350x3,400mm(LxWxH).

3,Cabin System:

1)Main Door:3-fold,size is 3,000x2,600mm(WxH), made of bended steel without covered edge,with tempered glass embedded into square frame made of aluminium alloy.

2)Personnel Door 1 unit, size is 800x2,000mm(WxH),with tempered glass embedded into square frame made of aluminium alloy.

3)Wall Panel 50mm thick and 1,000mm wide,insulation is EPS and covered by 0.326mm thick of color steel inside and outside.Tongue and groove interlock structure,two sides covered by steel.

4)Roof Panel:galvanised plate.

4,Basement:made of bended galvanised steel, 300mm high.

1)Full grilles
3)2 ramps, each size is 750x2,000mm(WxL).

5,Intake Air & Exhaust Air System:

1)Intake air system:single motor power:2sets*4KW, YDW-4.5Ltotal air capacity: 25,000m3/h

2)Exhaust air system:1set*7.5kw,YDW-5.6M, total air capacity: 21,000m3/h
Equipped with 4M straight duct, 1pc 90° elbow duct and 1pc 30 elbow° duct.

3)Pneumatic Actuator :To control the air valve be opened or closed while the working status is spraying or baking.

4)Makeup Air Control by Belimo NMU230 10N actuator to control fresh air quantity.

6, Air Purification system:

1)Fiber glass filter laid on the filter fram,G3 Grade(EN779)

2)Ceiling Filter:F5 Grade(EN779),type is SP-600G.

3)Fiberglass filter:G3 Grade(EN779),type is PA-50 .

4)Granular Active Carbon (KC-8.0) in "M" Shape Filter Frame.

7. Heating System: Italy Riello G20 Diesel Burner, 200000Kcal/h, 20N Damp Motor. SUS304 stainless steel heating exchanger, argon arc welding. Max Temp:80 degrees,Heating Time: 4-6min(20-60 degrees), Fuel Consumption: 4-5kg/vehicle.

8.Lighting System:Ceiling Light: 10groups*4pcs=40 pcs 36w Lamp;Side light:10gourps*2pcs=20pcs *36w lamp

1000Lux.

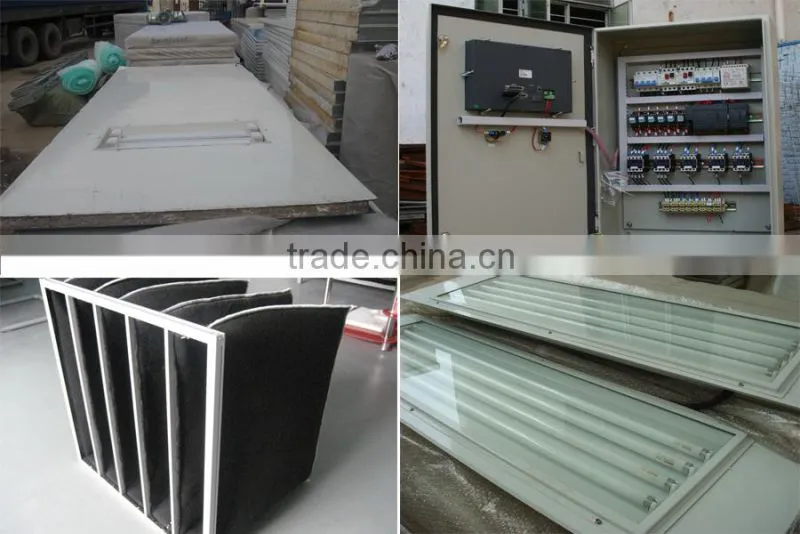

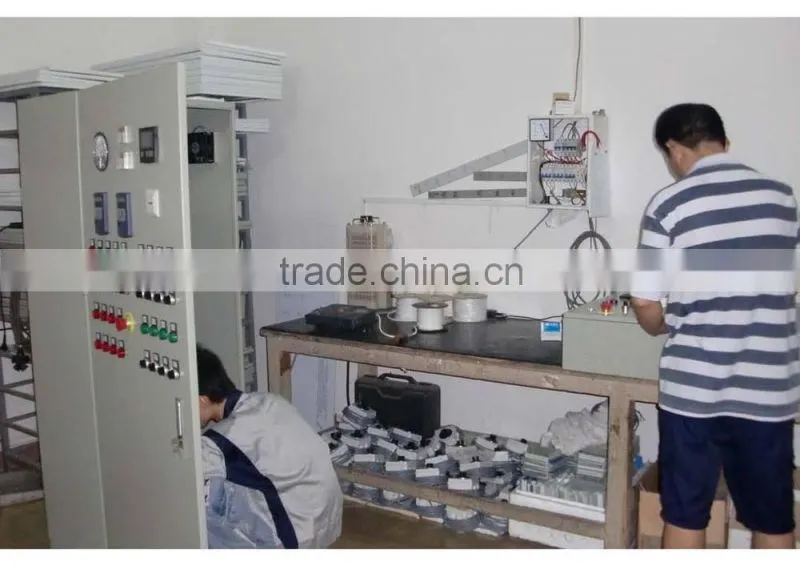

9.Controlling System:Siemens/Schneider electrical instruments,Pressure Gauge,Temperature Controller,Baking Timer,Spray Indicator,Heat Spray Indicator,Bake Indicator,Failure Indicator,Left Light Indicator,Right Light Indicator,Spray Switch,Heat Spraying Switch,Bake Switch,Left Light Switch,Right Light Switch,power Indicator,Start Switch,Power Switch,Emergency Stop.

10.Total Power:17.5kw

Options for LT-9200A Auto Spray Booths

1. Grilles Option
The original 30x4mm flat bar and 10mm twisted steel can be changed to 30x5mm flat bar and 10mm twisted steel. This option can make the bearing capacity of auto paint booth stronger.

2. Extraction Option
The original full grilles basement extraction can be changed to full grilles pit extraction.

3. Wall Panel Option
The original EPS insulation wall panel can be changed to ROCKWOOL insulation wall panel. This option can keep much more heat energy for model car spray booth.

4. Heating Options
The original diesel heating in all spray booths can be changed to gas heating, electrical heating, steam heating, hot water heating and so on.

5. Wall Panel Cover Option
The original 0.426mm thick color steel can be changed to 0.6mm thick color steel.edge cover for option.

The goods are guaranteed for 2 YEARS from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
