AT683 Supply Insulation Resistance Tester Megger with 100k ohm-10T ohm
We are the Chinese State Grid supplier!
AT683 Supply Insulation Resistance Tester Megger with 100k ohm-10T ohm introduce

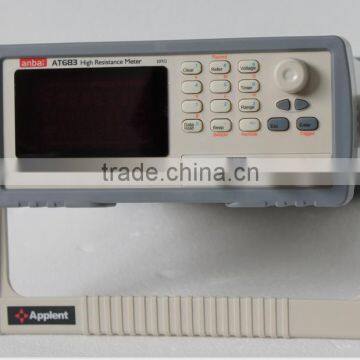

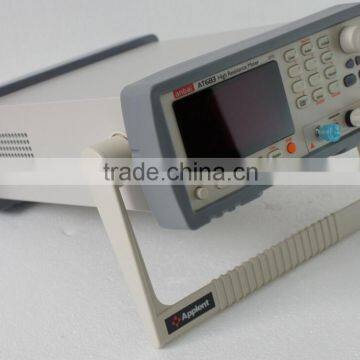

The AT683 High Resistance Meter is an MCU controlled measuring instrument for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass/fail indicator provides a visual display of test results based on a preset limit.
The AT683 High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
AT683Supply Insulation Resistance Tester Megger with 100k ohm-10T ohmFeatures and Benefits
- 3-lines VFD Display
- Correction: OPEN
- Comparator: 30 files, GD/NG Beeper

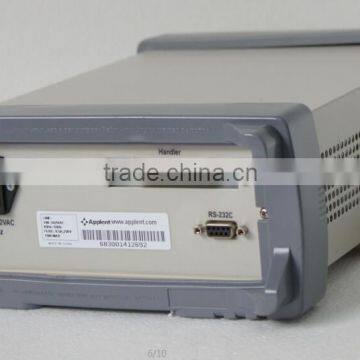

- Interface: RS232C and Handler
- Optional Interface: USB
- Programming Language: SCPI
AT683 Supply Insulation Resistance Tester Megger with 100k ohm-10T ohm Specifications
| Parameter | Leakage current and insulation resistance |
| Output Voltage | AT683: (NC)1V~1000VDC |
| Accuracy | <10G:3%, ≥10G: 5%, ≥100G:10% |
| Measurement Range | 100kΩ~10TΩ 10V: 100kΩ~100GΩ;100V: 1MΩ~1TΩ;1000V: 10MΩ~10TΩ |
| Max Reading | 9999 |
| Range | Automatic and Manual |
| Speed | 55 times/second,15 times/second,3 times/second |
| Adjustment | Open-circuit Zero-Adjust for each range |
| Result Display | Show, current, resistance, peak value, and sorting result |
| Charging Timer | 999.9s |
| Comparator | 30 sets record,GD/NG Beep: GD,NG,OFF setting. |
| Interface | RS-232C interface Handler interface (AT682SE optional interface) |
| Others | VFD four color high-definition screen,keypad lock and data hold function |
| GENERAL FEATURES | |
| Power Supply | Voltage: 198VAC~240VAC Frequency: 50Hz Power: Max 30VA |
| Dimension | 264(W)mm x 107(H)mm x 350mm(D) |
| Weight | 5kg |
| ORDERING INFORMATION | |

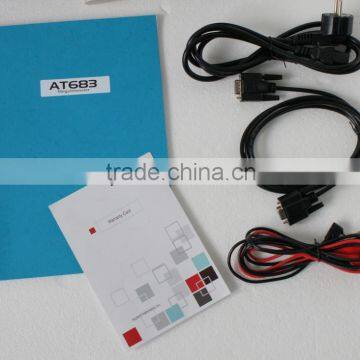

| Accessories | ATL507: Test Clip |
| ATL108: RS232 Interface Cable | |
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
