Home > Instruments & Meters > Electronic Instrument > Clamp Meter > Car DC Leakage Current Clamp Meter With RS232
Car DC Leakage Current Clamp Meter With RS232
US$ 100 - 118
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HZ
Model Number:
HZRC6000
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HZRC6300 High Accuracy 600V Digital AC Current Clamp LeakerUS$ 100 - 130MOQ: 1 Unit -
HZRC6000 AC DC Clamp Current Leaker MeterUS$ 100 - 118MOQ: 1 Unit
-
HZRC-6100 Digital AC DC Clip-on AmmeterUS$ 90 - 129MOQ: 1 Piece
-
HZRC-8300B Three-channel AC Leakage Current Online MonitorUS$ 470 - 529MOQ: 1 Piece
-
HZRC2000 Electric Clip-on Grounding Resistance MeterUS$ 100 - 529MOQ: 1 Piece
Place of Origin
Hebei, China
Brand Name
HZ
Model Number
HZRC6000
Display Type
Analog and Digital
Measuring Current Range
0mA~60.0A AC/DC
Operating Temperature
-10℃-50℃,below 80%rh
Dimensions
168*65*34mm
Weight
180g

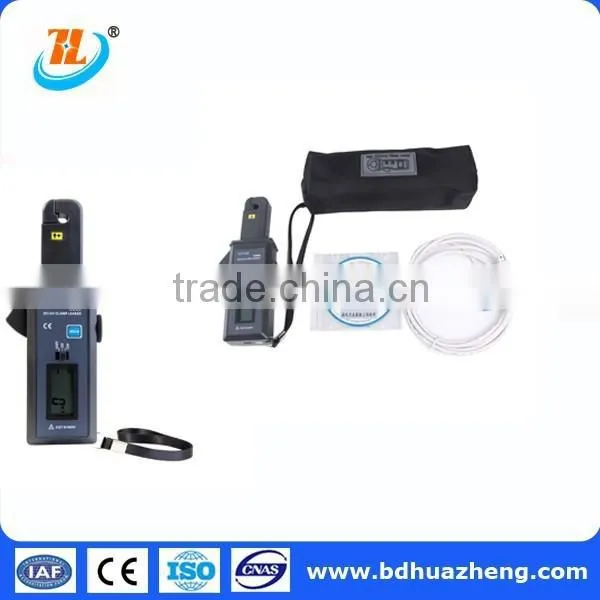

Car DC Leakage Current Clamp Meter with RS232
MOQ: 1 PC ! The suplier of State Grid ! Standard: CE ISO!
Product Description
Car DC Leakage Current Clamp Meter with RS232 introduction:
HZRC6000 AC/DC Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. The small clamp is suitable for line densely places (electric power measurement system, the high speed rail system, car circuit overhaul, and so on), non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. it is an essential tool for electrician safety testing.
HZRC6000 AC/DC Clamp Leaker also named: DC Leakage Current Clamp Meter, Car DC Leakage Current Clamp Meter, AC/DC Clamp Leakage Current Tester. It has those functions as data holding and data storage. It obtains one RS232 interface, communication cable and software, through which historical data inquiry is available, for data reading, exporting and printing.
Car DC Leakage Current Clamp Meter with RS232 specifications
| Function | Measurement of AC/DC current, leakage current |
Power Supply |
6F22,9V |
Test Mode |
Clip-on CT, integral mode |
Clamp Size |
Φ7mm |
Measurement Range |
0mA-60.0A AC/DC |
Resolution |
1mA AC/DC |
Accuracy |
±2%rdg±5dgt (23℃±5℃, below 75%rh) |
Display Mode |
Four digits LCD display |
Dimension |
LWH: 168mm×65mm×34mm |
LCD Dimension |
35mm×21.5mm; display domain: 32mm×15mm |
Sampling Rate |
2 times/s |
Frequency |
AC: 45Hz-400Hz |
Polarity Indication |
DC current auto identified and display“—” |
Test Position |
Tested wire in the jaw center |
Range Shift |
Automatically |
Line Voltage |
AC600V |
RS232 Interface |
Data stored in the memory of the meter via RS232 upload to PC |
Com-Configure |
Baud rate:9600, data bit:8, stop bit:1 |
Data Memory |
99units, FULL blinks when the memory is full |
Reading Hold |
DH indicating the reading is hold |
Out of Range |
OL indicating the current is out of range |
Auto Power-off |
5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage |
Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed |
Weight |
180g (including the battery) |
Working Current |
10mA |
Consumption |
10mW |
Working Temperature and Humidity |
-10℃-50℃,below 80%rh |
Limit Temperature Error |
-10℃-0℃ and 40℃-50℃, within 2%rdg |
Storage Temperature and Humidity |
-10℃-60℃,below 70%rh |
Insulating Strength |
AC2kV/rms (between the alloy of the clamp and the housing) |
Applicable safety rules |
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |
After-Sales Service
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
