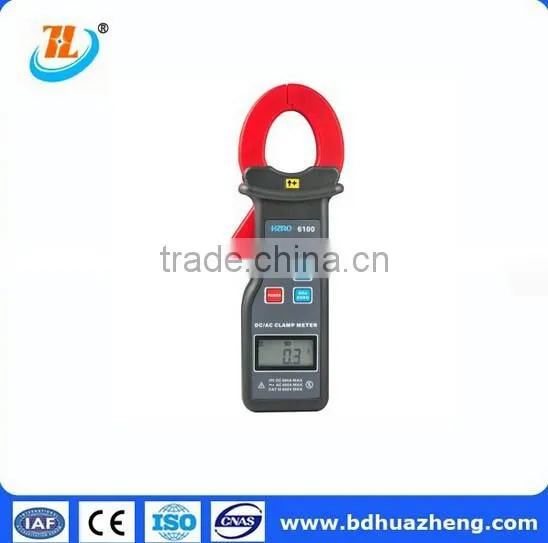

HZRC-6100 Digital AC DC Clip-on Ammeter

HZRC-6100 Digital AC DC Clip-on Ammeter thumbnail-1
HZRC-6100 Digital AC DC Clip-on Ammeter photo-1
US$ 90 - 129 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HZ
Model Number:
HZRC-6100
Contact Supplier Request Quote Chat Now
Huazheng Electric Manufacturing (Baoding) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HZ
Model Number HZRC-6100
Power Electronic
Usage Auto Testing Machine

Electric digital AC DC clip-on ammeter

Product Description

digital AC DC clip-on ammeter introduction:

High Accuracy Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. There is no exposed metal on clamp head, non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. This High Accuracy Clamp Leaker have those functions as peaking holding, data holding and data storage. It obtains one RS232 interface, communication cable and monitoring software. When connected to PC, we can realize the functions such as on-line monitoring, historical data inquiry, active curve drawing, indication of max, min and average value, alarm setting and indication, saving to documents and printing .



 digital AC DC clip-on ammeter specifications:

Function AC/DC leakage measurement, AC/DC current measurement, On-line AC/DC current measurement
Power Supply 6F22,9V
Process Type Clamp CT, noncontact mode.
Display Type 4 Digits LCD
Clamp Size 25mm * 30mm
Meter Dimension LWH: 175mm*70mm * 38mm
LCD Dimension 35mm * 21.5mm; Display Dimension: 32mm * 15mm
Sampling Rate 2 Times/Second
Frequency 50Hz, 60Hz Automatic identification
Shifting Automatic Shift
Range AC/DC:0.0A~1000A
Resolution 0.1A
Accuracy ±2%±3dgt (23℃±3℃, below 70%RH)
Line voltage Below AC 600V
RS232 Interface With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring
Data Memory 99 sets, “FULL” Blinking when memory is full
Peak Maintaining Peak value capture hold function, press HOLD without Release to display peak value
Reading Hold Reading hold function: “DH” symbol display
Overflow display Range overflow function: “OL” symbol display
Automatic Shutdown 5 minutes after the boot
Battery Detection When battery voltage is lower than 7.2V, low battery symbol      will shown to remind battery replacement.
Meter Weight 180g (With battery)
Rated Power 10mW
Working Temperature and Humidity 0℃~50℃; below 80%rh
Max error refer to environment -10℃~0℃,40℃~50℃,Error will increase max to 1%rdg.
Storage Temperature and Humidity -10℃~60℃; below 70%rh
Insulation Strength AC2kV/rms (between core and box)
Safety Provisions IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Accessories Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece
