Home > Instruments & Meters > Electronic Instrument > Clamp Meter > HZRC6300 High Accuracy 600V Digital AC Current Clamp Leaker
HZRC6300 High Accuracy 600V Digital AC Current Clamp Leaker
US$ 100 - 130
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HZ
Model Number:
HZRC6300
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HZRC6000 AC DC Clamp Current Leaker MeterUS$ 100 - 118MOQ: 1 Unit -
HZRC-6100 Digital AC DC Clip-on AmmeterUS$ 90 - 129MOQ: 1 Piece
-
HZRC-8300B Three-channel AC Leakage Current Online MonitorUS$ 470 - 529MOQ: 1 Piece
-
HZRC2000 Electric Clip-on Grounding Resistance MeterUS$ 100 - 529MOQ: 1 Piece
-
HZRC3200 Double Clamp Meter Ground Resistance TesterUS$ 50 - 200MOQ: 10 Pieces
Place of Origin
Hebei, China
Brand Name
HZ
Model Number
HZRC6300
Display Type
Other, Digital Only, 4 Digits LCD
Measuring Current Range
0.000mA~60.00A
Operating Temperature
-10℃~60℃; below 70%rh
Dimensions
285*85*56mm
Weight
120g
HZRC6300 High Accuracy 600V digital AC current Clamp Leaker
MOQ: 1 PC ! The suplier of State Grid ! Standard: CE ISO!
Product Description
HZRC6300 High Accuracy 600V digital AC current Clamp Leaker introduction:

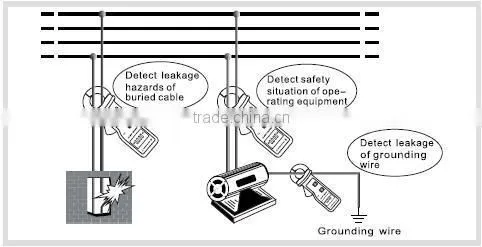

HZRC6300 High Accuracy Clamp Leaker is specially designed for AC leakage current measurement. RS232 interface is available on the meter. The meter can achieve online real-time monitoring and historical queries; in dynamic display, with maximum, minimum and mean value indications; also alarm value setting and alarm indication function, historical data reading, saving and print functions, etc.
The meter can be used for on-line AC current measurement below AC600V, with the functions of peak maintaining, reading holding and data memory. In all, it is high accurate and easy and safe to use.
HZRC6300 High Accuracy 600V digital AC current Clamp Leaker specifications
Function |
AC leakage measurement, AC current measurement, On-line AC current measurement |
Power Supply |
6F22,9V |
Process Type |
Clamp CT, Integral Approach |
Display Type |
4 Digits LCD |
Clamp Size |
25mm×30mm |
Meter Dimension |
LWH: 175mm×70mm×38mm |
LCD Dimension |
35mm×21.5mm; Display Dimension: 32mm×15mm |
Sampling Rate |
2 Times/Second |
Frequency |
50Hz, 60Hz Automatic identification |
Shifting |
Automatic Shift |
Range |
0.000mA~60.00A |
Resolution |
1uA |
Accuracy |
±1.5%±5dgt (23℃±3℃, below 70%RH) |
Line voltage |
Below AC 600V |
RS232 Interface |
With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring |
Data Memory |
99 sets, “FULL” Blinking when memory is full |
Peak Maintaining |
Peak value capture hold function, press HOLD without Release to display peak value |
Reading Hold |
Reading hold function: “DH” symbol display |
Overflow display |
Range overflow function: “OL” symbol display |
Automatic Shutdown |
5 minutes after the boot |
Battery Detection |
When battery voltage is lower than 7.2V, low battery symbol will shown to remind battery replacement. |
Meter Weight |
120g (With battery) |
Rated Power |
5mW |
Working Temperature and Humidity |
0℃~40℃; below 80%rh |
Storage Temperature and Humidity |
-10℃~60℃; below 70%rh |
Insulation Strength |
AC2kV/rms (between core and box) |
Safety Provisions |
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |
Accessories |

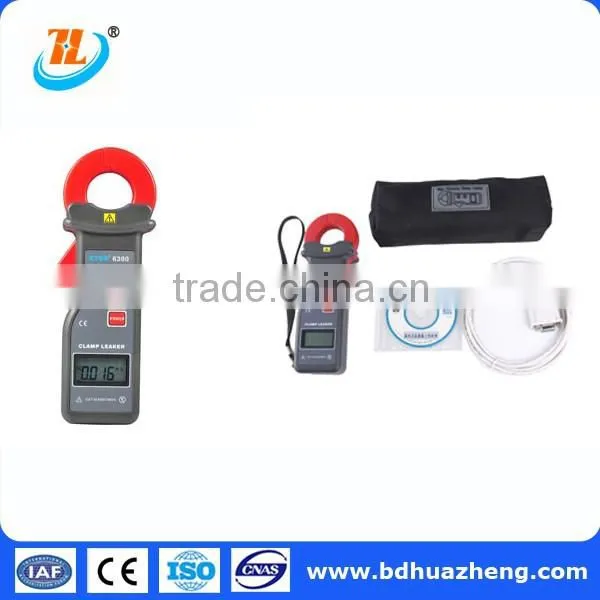

Meter: 1 piece, RS232 Com-cable:1 piece; Software Disk: 1 piece; Battery (6F22 9V): 1 piece |
After-Sales Service
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
