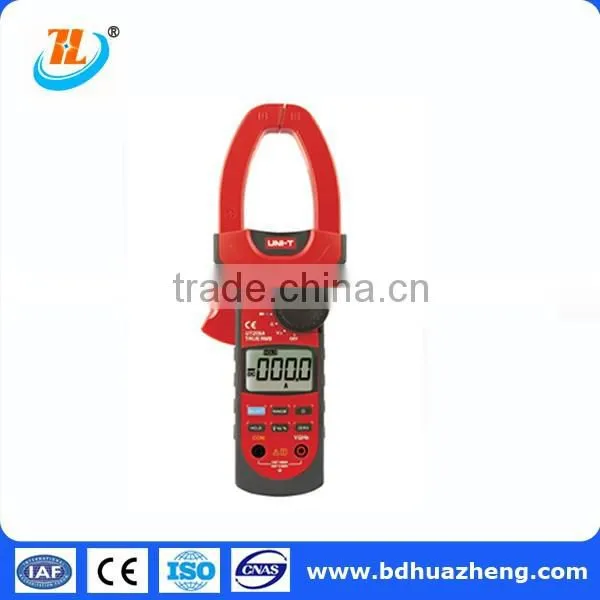

UT 209A 1000V 1000A AC DC Digital Clamp Meter
US$ 60 - 120
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HZ
Model Number:
UT209A
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/AC DC Digital Clamp Meter
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2000A Digital AC DC Clamp Meters UT220US$ 58 - 88MOQ: 1 Unit -
1000A AC DC Digital Clamp Meters UT209AUS$ 60 - 120MOQ: 1 Unit
-
Electrical Meter High and Low Voltage AC Current Clamp Meter for Current LeakageUS$ 100 - 600MOQ: 1 Unit
-
HZRC9200 High and Low Voltage Clamp Current MeterUS$ 100 - 600MOQ: 1 Unit
-
HZRC035AD Clamp AC/DC Current SensorUS$ 50 - 88MOQ: 1 Piece
Place of Origin
Hebei, China
Brand Name
HZ
Model Number
UT209A
Display Type
Digital Only
Measuring Current Range
40A/400A/1000A
Measuring Voltage Range
400mV/4V/40V/400V/750V
Measuring Resistance Range
0.01-1200Ω
Measuring Capacitance Range
none
Measuring Inductance Range
none
Operating Temperature
-40 °C ~ 1000°C
Dimensions
286mm X 105mm X45mm
Weight
533g
UT 209A 1000V 1000A AC DC Digital Clamp Meter
Product Description
UDigital Clamp Meter specifications
| Specifications | Range | Best Accuracy |
| Model | UT209A | |
| AC Current (A) | 40A/400A/1000A | ±(2%+2) |
| DC Current (A) | 40A/400A/1000A | ±(1.5%+5) |
| AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1.2%+3) |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 10Hz/100Hz/1KHz/10KHz/1MHz/10MHz | ±(0.1%+3) |
| Temperature (°C) | -40 °C ~ 1000°C | |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Jaw Capacity | 55mm | |
| True RMS | AC Voltage/AC Current | √ |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| LCD Backlight | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Alkaline Battery(6LF22) | |
| LCD Size | 47mm X 30 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 533g | |
| Product Size | 286mm X 105mm X45mm | |
| Standard Accessories | Battery, Test Lead, Tool Box | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 5 PCs | |
| Standard Carton Measurement | 480mm X 372mm X 315mm (0.056 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 11Kg | |
Our Services
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
