Home > Electrical & Electronics > Sensor > Pressure Sensor > HZRC035AD Clamp AC/DC Current Sensor

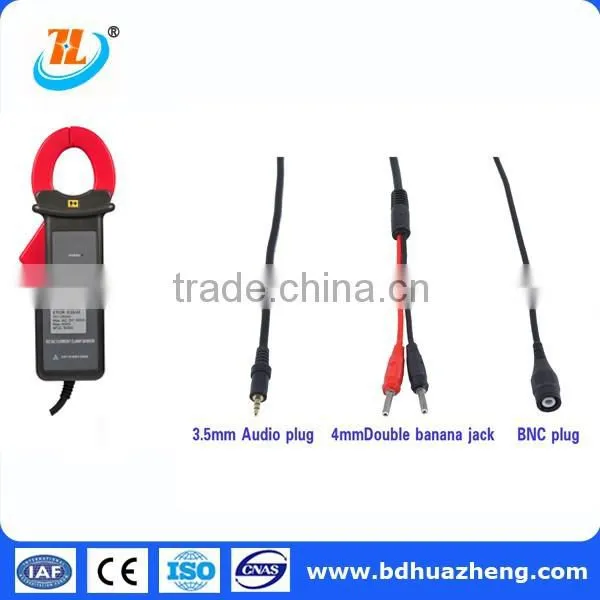

HZRC035AD Clamp AC/DC Current Sensor

Name: HZRC035AD Clamp AC/DC Current Sensor
Brand: HuaZheng
SKU: 123579273
Availability: InStock

HZRC035AD Clamp AC/DC Current Sensor thumbnail-1

HZRC035AD Clamp AC/DC Current Sensor photo-1

US$ 50 - 88 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

HuaZheng

Model Number:

HZRC035AD

Contact Supplier Request Quote Chat Now

Huazheng Electric Manufacturing (Baoding) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name HuaZheng

Model Number HZRC035AD

Usage Consumption Sensor

Theory Current Sensor

Output Digital Sensor

HZRC035AD Clamp AC/DC Current Sensor

Product Description

Supplier of State Grid!

IEC156 ISO 9001:2008 ASTM

HZRC035AD Clamp AC/DC Current Sensor introduction:

HZRC035AD Clamp AC/DC Current Sensor is specially designed to test current and leakage of circuit below AC/DC600, with small size, high accuracy, good stability. It is widely applied in AC current leakage, current, power and energy measurement with high precision and small phase error of electricity, communications, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises, which can be connected to a variety of high precision digital multi-meter and data recorder.

HZRC035AD Clamp AC/DC Current Sensor parameter:

Function	AC/DC current detection
Power Supply	Battery, 6LR61 9VDC (can connect external power supply)
Test model	Clamp CT, Non contact measurement, non-exposure of meter of the jaw

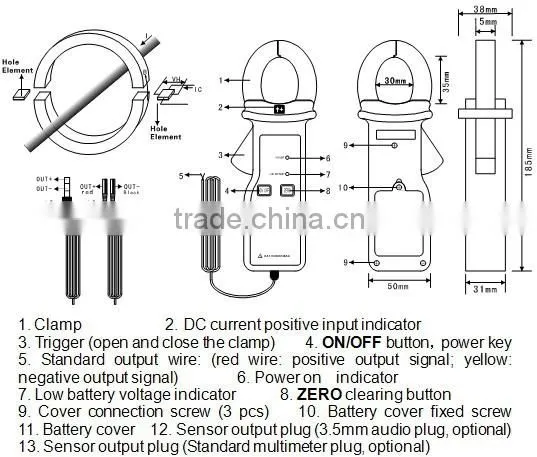

Dimension	185mm×70mm×38mm
Clamp Size	30mm×35mm
AC Frequency	45~400Hz
Range	AC/DC 0.0A~1000A
Resolution	0.1A
Accuracy	2%(23℃±3℃,below 70%RH)
Output	1mV/A
Frequency Response	10KHz(-3dB)
Zero-Adjustment	Yes
Lead length	2m
Wire Position	Detected wire should be put on the centre of the jaw
Circuit Voltage	Lower than AC600V
Power on/off	Push ON/OFF key
Auto Power-off	5 Minutes after power on, it will power off automatically to lower the power consumption
Battery Voltage	Indicating the battery voltage is lower then 7.2V.Then the battery have to be changed
Weight	180g(including the battery)
Consumption	10mW
Auto Power-off	5 Minutes after power on, it will power off automatically to lower the power consumption
Working environment	-20℃~50℃;below 80%rh
Storage environment	-10℃~60℃;below 70%rh
Max error refer to environment	-10℃~0℃ or 40℃~50℃,Error will increase max to 1%rdg
Insulation strength	AC2kV/rms (between core and shell)
Safety rules	IEC1010-1, IEC1010-2-032, Pollution degree 2,CAT Ⅲ(600V)
Accessary	Sensor:1PC; Battery (6F22 9V): 1PC

After-Sales Service

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

Certifications
