Home > Instruments & Meters > Electronic Instrument > Clamp Meter > HZRC9200 High and Low Voltage Clamp Current Meter

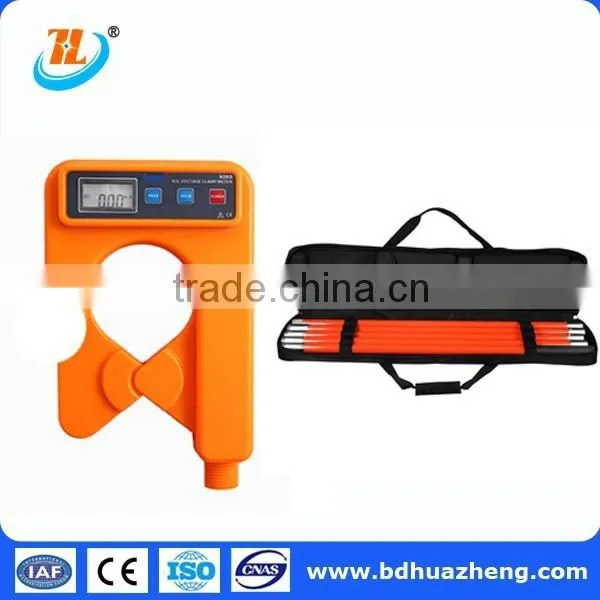

HZRC9200 High and Low Voltage Clamp Current Meter

US$ 100 - 600 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Model Number:

HZRC9200

Contact Supplier Request Quote Chat Now

Huazheng Electric Manufacturing (Baoding) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name HZ

Model Number HZRC9200

Display Type Digital Only

Measuring Current Range 0.00mA~1000A(50Hz/60Hz Automatic)

Operating Temperature -10℃ ~ 60℃; ≤70%Rh

Dimensions 300*200*100mm

Weight 2.3Kg

HZRC9200 high and low Voltage Clamp Current Meter

MOQ: 1 PC ! The suplier of State Grid ! Standard: CE ISO!

Product Description

HZRC9200 high and low Voltage Clamp Current Meter introduction:

HZRC9200 H/L Voltage Clamp Current Meter can be used for insulating sheath wires(≤60kV)and bare wire (≤35kV) high voltage line current measurement and online current measure below 60kV,also with the factions of peak value holding, data holding, data storage and wireless transmission , etc. It is easy to clamp or disconnect the wire by pulling-down or forwarding the insulation rods of the special clamp current meter, with the advantages of safely and time-saving. Widely used in power plant, substation industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working. t can also be used as high and low voltage changing ratio tester , that is, respectively test the first loop and secondary loop high and low voltage change through manually calculation . The insulation rod is light and convenient, with the advantages of anti-moisture, high temperature resistance, anti-impact , bending resistance , high insulation , flexibility and other characteristics.

HZRC9200 high and low Voltage Clamp Current Meter specifications

Function	H-voltage AC current measure,L-voltage AC /leakage current measure AC current monitor online
Power Supply	DC6V Alkaline Dry Battery(1.5V AAA X 4)
Test Method	Clamp CT, Integral Method;hook the meter on the line to test,save the physical power of user.
Clamp Diameter	Φ68mm
Range of measurement	0.00mA~1000A(50Hz/60Hz Automatic)
Resolution	0.01mA
Shift	0.00mA~1000A Automatic Shift
Test Accuracy (23℃±5℃,≤80% RH)	0.00mA~299mA: ±1%±3dgt
	0.30A~49.9A: ±1.5%±5dgt
	50.0A~199.9A: ±2%±5dgt
	200A~600A: ±3%±5dgt
	601A~1000A: ±4%±5dgt
Display Mode	4 digital LCD display
LCD Dimension	Tester: LCD: 35mm×21.5mm
Meter Dimension	Tester: 218mm×135mm×60mm
Sampling Speed	About 2 times/second
Data Storage	99 Groups,during storage, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full.
PEAk Maintenance	Automatically maintain the height of the test value,usually in the test mode pressPEAK,LCD top right corner will display “PE”,that is, to keep open the PEAK function, then press PEAK key to cancel this function key
Circuit Voltage	Test insulating sheath wires(≤60kV)and bare wire t( ≤35kV) (operated with insulation rod)
Data Preservation	Under general test mode, press HOLD button to preserve data, “DH” symbol display. then press HOLD Key to cancel this function
Data Access	“MR” symbol indicates, it can read the stored data by turning upwards and downwards.
Overflow Display	Exceed measurement range overflow function: “OL A” symbol display
Auto Shut Down	About 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption.
Battery Voltage	When the battery voltage is below 4.8V, the symbol of battery voltage“ ”will show to remind to replace battery.
Weight	Tester:About 620g (Including battery) Total quality of meter: about 2.3kg(including insulation rod and battery)
Work Temperature and Humidity	-10℃ ~ 40℃; ≤80%Rh
Storage Temperature and Humidity	-10℃ ~ 60℃; ≤70%Rh
interference	No same frequency interference of 315MHz and 433MHz
Insulated Rod Dimension	Φ32mm, 1m/ Section(5 Sections)
Insulation Intension	Tester: AC 2kV/rms(Between core and shell) Insulating rod: AC 100kV/rms(5 sections insulating rod all connections, between both ends)
Structure	Anti-Dripping Type II
accessories	Tester:1set;meter box: 1 pcs; Insulating rod (1m): 5 sections; Battery(alkaline battery LR03: 4pcs

After-Sales Service

From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
